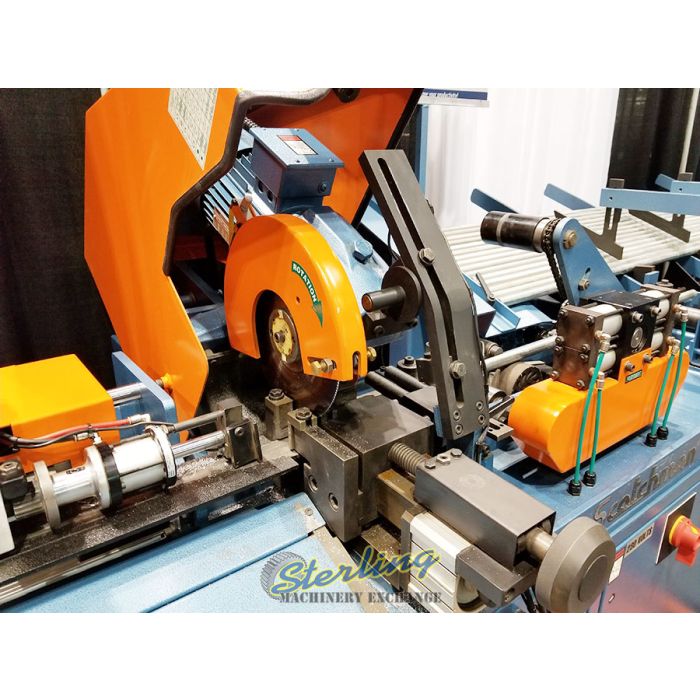

12 - 1/2" New Scotchman (VARIABLE SPEED, AUTOMATIC VISE CLAMPING AND AUTOMATIC POWER DOWN FEED) Circular Cold Saw, Ideal for HIGH VOLUME JOBS WITH A MAGAZINE FEED (For Cutting Steel, Stainless, Aluminum, Brass, Copper, Plastics), Mdl. CPO 315 RFA/ST, Automatic Tube Ejection, Clamping Both Sides of Blade - Highest Quality, Burr-Free Cuts, Interlocking Safety Hood, Blade Guides for Accurate Tolerances (Ferrous, (Scotchman) Warranty: Three Years On Parts, #SMCPO315RFAST

Stock No:
#SMCPO315RFAST
Manufacturer:
Scotchman
Model:
CPO 315 RFA/ST
Capacity:
12 - 1/2"
Condition:
New
New Scotchman (VARIABLE SPEED, AUTOMATIC VISE CLAMPING AND AUTOMATIC POWER DOWN FEED) Circular Cold Saw, Ideal for HIGH VOLUME JOBS WITH A MAGAZINE FEED (For Cutting Steel, Stainless, Aluminum, Brass, Copper, Plastics)
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Material Type:
Ferrous
Maximum Saw Blade
12 - 1/2"
Feed Type:
Fully Automatic
Speeds (variable)
11 - 177 RPM
Round Tube
3 - 1/2"
Round Solid
2"
Square Tube
3 - 1/8" x 3 - 1/8"
Square Solid
2" x 2"
Length Tolerance
+ Or - 0.004 Repeatability
Minimum Cut Length
1 - 1/4"
Maximum Cut Length
60"
Minimum Trim Cut
1"
Air Pressure
90 LBS. Minimum
Sqareness Tolerances
0.002 Per Diameter Inch
Arbor Bore Size
40 MM
Pin Spacing
4/12/64
Strokes Per MInute
200
Supply Table Width
24"
Motor HP Ferrous Models
5 HP
Motor HP - Non Ferrous Model
3.8 HP
Power Supply
208/230/460 3-PH
WEIGHT
3250 Lbs.
EQUIPPED WITH
Automatic Tube Ejection
Clamping Both Sides Of Blade - Highest Quality, Burr-Free Cuts
Interlocking Safety Hood
(Scotchman) Warranty: Three Years On Parts
Blade Guides For Accurate Tolerances (Ferrous
OPTIONAL EQUIPMENT AND TOOLING
scotchman 60” feeder
Name: Scotchman 60” Feeder
Price: Call For Price
Stock No:# SM60FEEDER
ADD TO MACHINE QUOTE:

scotchman 90” feeder
Name: Scotchman 90” Feeder
Price: Call For Price
Stock No:# SM90FEEDER
ADD TO MACHINE QUOTE:

scotchman 120” feeder
Name: Scotchman 120” Feeder
Price: Call For Price
Stock No:# SM120FEEDER
ADD TO MACHINE QUOTE:

Additional Information





NOTE:  This Saw will Cut Steel, Stainless, Aluminum, Brass, Copper, Plastics, without Changing the Blade.

This Saw is a variable speed Cutting Saw.  If You Are Cutting Aluminum, Brass, Copper or other Soft materials ONLY, We suggest a NON Ferrous Saw for Quick, Clean Cutting.

Scotchman Is MADE IN AMERICA and comes with a 3 YEAR WARRANTY!

FULLY-AUTOMATIC Cold Saw. Automatic feed and cutting. Ideal for hi-volume jobs, magazine feed, or full bundle loader.

Larger Feeds Available.  Please Call for More information 626-444-0311

* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
