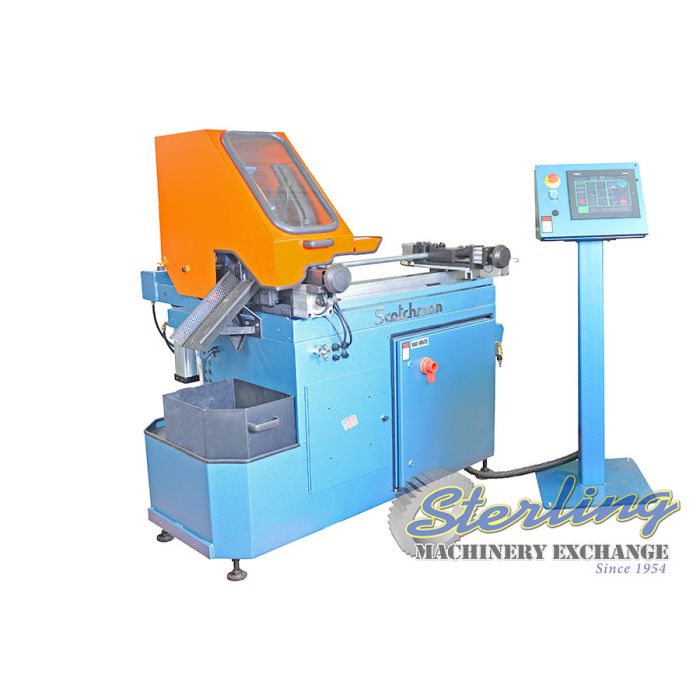

12 - 1/2" Brand New Scotchman Non-Ferrous Hitch Feed Automatic Touch Screen Coldsaw, Mdl. CPO 315 HFA/NF-CNC, Fully Automatic Cylce, Touch Screen Controls, 5 HP Variable RPM Speed Control (Ferrous Model), Interlocking Safety Hood, Clamping both Sides of Blade--Highest Quality, Burr-Free Cuts, Blade Guides for Accurate Tolerances (Ferrous Model), Mist Coolant, Adjustable Stroke Control on the Saw Head, Adjustable Down Feed Control on the Saw Head for Feed Rate, Fast Length Setup, No Wrenches required to Set Length, Adjustable Indexing Feed Speeds, Program up to Four Separate Cut Lengths in each Job, 100 Program Job Storage, 30" Shuttle Length, Unlimited Shuttles, Piece Counter, One Saw Blade, One Gallon Coolant (Non-ferrous Model), Warranty: Two Years on Parts, #SMCPO315HFANFCNC

Stock No:
#SMCPO315HFANFCNC
Manufacturer:
Scotchman
Model:
CPO 315 HFA/NF-CNC
Capacity:
12 - 1/2"
Condition:
New
Brand New Scotchman Non-Ferrous Hitch Feed Automatic Touch Screen Coldsaw
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Material Type:
Non Ferrous Metals
Maximum Saw Blade
12 - 1/2"
Maximum Cut Length
60"
Feed Type:
CNC
Cutting Speeds
3,000 RPM
Round Tube
3 - 1/2"
Round Solid
1-3/4"
Square Tube
3 - 1/8" x 3 - 1/8"
Square Solid
1-1/2" x 1-1/2"
Length Tolerance
+ or - 0.006" Per Index
Air Pressure
90 LBS. Minimum
Sqareness Tolerances
0.002 Per Diameter Inch
Arbor Bore Size
40 MM
Motor HP Ferrous Models
5 HP
Power Supply
208/230/460 3-PH
WEIGHT
3250 Lbs.
Dimensions (L x W x H)
72" x 44" x 64"
EQUIPPED WITH
Fully Automatic Cylce
Adjustable Stroke Control On The Saw Head
Adjustable Down Feed Control On The Saw Head For Feed Rate
Fast Length Setup
No Wrenches Required To Set Length
Adjustable Indexing Feed Speeds
Program Up To Four Separate Cut Lengths In Each Job
100 Program Job Storage
30" Shuttle Length
Unlimited Shuttles
Piece Counter
One Saw Blade
One Gallon Coolant (Non-ferrous Model)
Warranty: Two Years On Parts
5 HP Variable RPM Speed Control (Ferrous Model)
Interlocking Safety Hood
Touch Screen Controls
Clamping Both Sides Of Blade--Highest Quality, Burr-Free Cuts
Blade Guides For Accurate Tolerances (Ferrous Model)
Mist Coolant
OPTIONAL EQUIPMENT AND TOOLING
scotchman - special form jaws - one piece (hfa) *samples required* (call for pricing)
Name: Scotchman - Special Form Jaws - One Piece (HFA) *SAMPLES REQUIRED* (call for pricing)
Price: Call For Price
Stock No:# 009643
ADD TO MACHINE QUOTE:

scotchman - special form jaws - multiple pieces (hfa) *samples required* (call for pricing)
Name: Scotchman - Special Form Jaws - Multiple Pieces (HFA) *SAMPLES REQUIRED* (call for pricing)
Price: Call For Price
Stock No:# 009643-M
ADD TO MACHINE QUOTE:

scotchman - vise pressure regulator (hfa)
Name: Scotchman - Vise Pressure Regulator (HFA)
Price: Call For Price
Stock No:# 047252
ADD TO MACHINE QUOTE:

scotchman - flood coolant
Name: Scotchman - Flood Coolant
Price: Call For Price
Stock No:# 045369
ADD TO MACHINE QUOTE:

scotchman - 10' material supply track (hfa/gaa)
Name: Scotchman - 10' Material Supply Track (HFA/GAA)
Price: Call For Price
Stock No:# 029242
ADD TO MACHINE QUOTE:

scotchman - 20' material supply track (hfa/gaa)
Name: Scotchman - 20' Material Supply Track (HFA/GAA)
Price: Call For Price
Stock No:# 029242-20
ADD TO MACHINE QUOTE:

scotchman - vise jaw extension kit (hfa - cnc)
Name: Scotchman - Vise Jaw Extension Kit (HFA - CNC)
Price: Call For Price
Stock No:# 045424
ADD TO MACHINE QUOTE:
