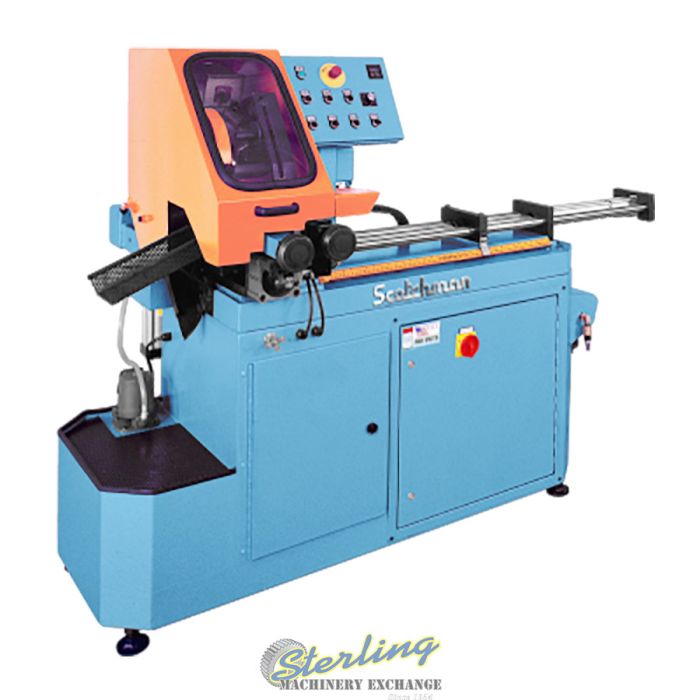

12 - 1/2" New Scotchman (NON-FERROUS, AUTOMATIC VISE CLAMPING AND AUTOMATIC POWER DOWN FEED) Circular Cold Saw (For Cutting Aluminum, Brass, Copper, Plastics), Mdl. CPO 315 HFA NF, Hitch Feed Automatic, Fully Automatic Cycle, Push Button Controls Actuate The Complete Cycle, (Scotchman) Warranty: Three Years On Parts, #SMCPO315HFANF

Stock No:
#SMCPO315HFANF
Manufacturer:
Scotchman
Model:
CPO 315 HFA NF
Capacity:
12 - 1/2"
Condition:
New
New Scotchman (NON-FERROUS, AUTOMATIC VISE CLAMPING AND AUTOMATIC POWER DOWN FEED) Circular Cold Saw (For Cutting Aluminum, Brass, Copper, Plastics)
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Material Type:
Non Ferrous Metals
Maximum Saw Blade Diameter
12 - 1/2"
Maximum Cut Length
Single Index 30", Double Index
Tubing
Round
Up To 2"
Square
Up To 2" x 2"
Solid
Square
Up To 2" x 2"
Feed Type:
Fully Automatic
Cutting Speeds
CPO 315 HFA NF
3,000 RPM
Length Tolerance
+ Or - 0.004
Squareness Tolerance
0.002 Per Diameter Inch
Minimun Cut Length
1/8"
Air Pressure
90 LBS. Minimum
Arbor Bore Size
40 MM
Pin Spacing
4/12/64
Optional Equipment Available
From Jaws: To Clamps One Piece (Samples Required)
From Jaws: To Clamps Multiple Pieces (Samples Required)
Vise Jaw Extension (Reduces Remnant Length To 2")
076912- 076913
Vise Pressure Regulator
47252
30" Digital Readout:
45492
10 Ft. Material Supply Track
29242
20 Ft. Material Supply Track
29242
Motor HP Non - Ferrous Models
3.8 HP
Power Supply
208/230/460 3 - PH
WEIGHT
1770 LBS.
EQUIPPED WITH
Hitch Feed Automatic
Fully Automatic Cycle
Push Button Controls Actuate The Complete Cycle
(Scotchman) Warranty: Three Years On Parts
OPTIONAL EQUIPMENT AND TOOLING
scotchman - vise jaw extension set
Name: Scotchman - Vise Jaw Extension Set
Price: Call For Price
Stock No:# 076912-076913
ADD TO MACHINE QUOTE:

scotchman - special form jaws - one piece (hfa) *samples required* (call for pricing)
Name: Scotchman - Special Form Jaws - One Piece (HFA) *SAMPLES REQUIRED* (call for pricing)
Price: Call For Price
Stock No:# 009643
ADD TO MACHINE QUOTE:

scotchman - special form jaws - multiple pieces (hfa) *samples required* (call for pricing)
Name: Scotchman - Special Form Jaws - Multiple Pieces (HFA) *SAMPLES REQUIRED* (call for pricing)
Price: Call For Price
Stock No:# 009643-M
ADD TO MACHINE QUOTE:

scotchman - vise pressure regulator (hfa)
Name: Scotchman - Vise Pressure Regulator (HFA)
Price: Call For Price
Stock No:# 047252
ADD TO MACHINE QUOTE:

scotchman - flood coolant
Name: Scotchman - Flood Coolant
Price: Call For Price
Stock No:# 045369
ADD TO MACHINE QUOTE:

scotchman - 30
Name: Scotchman - 30" Digital Read Out
Price: Call For Price
Stock No:# 045492
ADD TO MACHINE QUOTE:

scotchman - 10' material supply track (hfa/gaa)
Name: Scotchman - 10' Material Supply Track (HFA/GAA)
Price: Call For Price
Stock No:# 029242
ADD TO MACHINE QUOTE:

scotchman - 20' material supply track (hfa/gaa)
Name: Scotchman - 20' Material Supply Track (HFA/GAA)
Price: Call For Price
Stock No:# 029242-20
ADD TO MACHINE QUOTE:

Additional Information



NOTE:  This Saw will Cut Aluminum, Brass, Copper, Plastics, without Changing the Blade.

This Saw is a NON FERROUS 3,000 RPM speed Cutting Saw. This is for Cutting Aluminum, Brass, Copper or other Soft materials ONLY.

Scotchman Is MADE IN AMERICA and comes with a 3 YEAR WARRANTY!



* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
