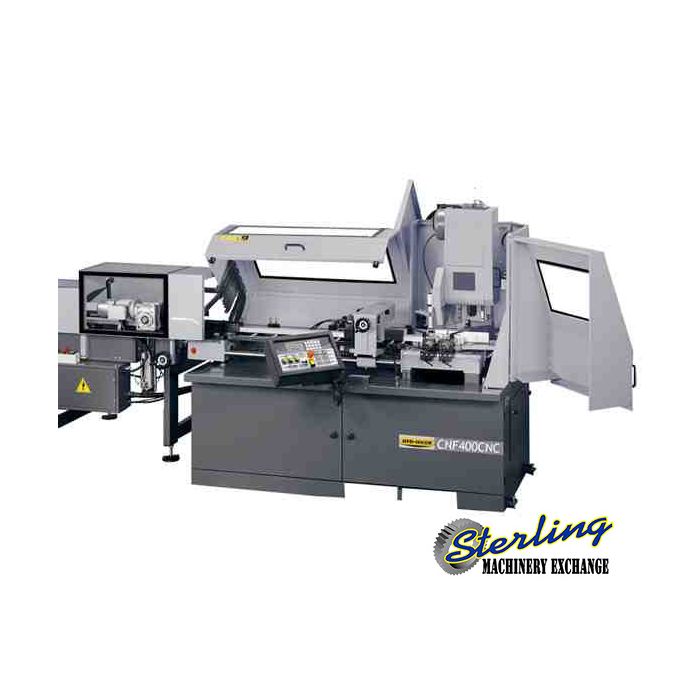

7" x 4" hydmech CNF400CNC, New #SMCNF400CNC

Machine Type:
SAWS
Manufacturer:
HYDMECH
Model:
CNF400CNC
Capacity:
7" x 4"
Condition:
New
Stock No:
#SMCNF400CNC
Print a Quick Quote!
View Gallery
EnglishVideo
DETAILED SPECIFICATION
Operation Type Automatic
Blade Size 15-3/4"
45 Degrees
45 Degree Square Tube 4" Left & Right
45 Degree Round Tube 4-1/2" Left & Right
45 Degree Rectangle Tube 4-3/4" x 4" Left & Right
45 Degree Square Solid 2-3/4" Left & Right
45 Degree Round Solid 2-3/4" Left & Right
60 Degrees
60 Degree Square Tube 3-1/2" Left
60 Degree Rectangle Tube 3-1/2" x 3-1/2" Left
60 Degree Square Solid 2" Left
60 Degree Round Solid 2" Left
90 Degrees
90 Degree Square Tube 4-3/4"
90 Degree Round Tube 5"
90 Degree Rectangle Tube 7" x 4"
90 Degree Square Solid 4-3/4"
90 Degree Round Solid 5"
Mitering Capability 45 Degree Right & 60 Degree Left
Standard Remnant Length 15"
Short Remnant Option 5.9"
Blade Speed (2) 1700 & 3400 RPM
Warranty One Year Parts, One Year Labor
Horsepower 6 H.P.
Voltage 240/480V ~ 3 Phase
Dimensions ( L x W x H ) 70" x 97" x 75"
WEIGHT 2350 lbs
Features
Miter Capabilities - 45 Degrees Left/45 Degrees Right & 60 Degrees Left
Replaceable Blade Brush
Automatic Operation
Automatic Multi-Indexing Up To 40"
Head Stroke Set From Control Panel
2 Blade Speeds
Warning Indicator With Flashing Light
Pneumatic Vertical Vise
Sawing Head Movement Controlled By Pneumatic Cylinder
6 HP Saw Head Coupled Directly To Saw Head
Pneumatic Horizontal Operating Vise
Automatic Mist Lubrication During Cut
Enclosed Steel Base Coolant Tank
Ergonomically Positioned Control Panel With Emergency Stop, Programing Console, Digital Display For Machine Diagnostics & Cutting Parameters
Stores Up To 32 Jobs
OPTIONAL EQUIPMENT AND TOOLING
hydmech - double suction system
Name: Hydmech - Double Suction System
Price: Call For Price
Stock No:# 16481010
ADD TO MACHINE QUOTE:

hydmech - t2500 chip collector
Name: Hydmech - T2500 Chip Collector
Price: Call For Price
Stock No:# 16431055
ADD TO MACHINE QUOTE:

hydmech - foot pedal control with emergency stop
Name: Hydmech - Foot Pedal Control with Emergency Stop
Price: Call For Price
Stock No:# 16421010
ADD TO MACHINE QUOTE:

hydmech - extended shuttle vise to shorten remnant piece
Name: Hydmech - Extended Shuttle Vise to Shorten Remnant Piece
Price: Call For Price
Stock No:# 16423010
ADD TO MACHINE QUOTE:

hydmech - automatic mitering (45 degrees left, 90 degree/45 degree right) *note: can choose one left angle, 90 degrees, and one right angle. unable to choose two angles on the same side of 90 degrees.
Name: Hydmech - Automatic Mitering (45 Degrees Left, 90 Degree/45 Degree Right) *Note: Can choose one left angle, 90 Degrees, and one right angle. Unable to choose two angles on the same side of 90 Degrees.
Price: Call For Price
Stock No:# 16471050
ADD TO MACHINE QUOTE:

hydmech - cb-6001 automatic incline loading table (ships in 3 pieces, capacity up to 20' bars)
Name: Hydmech - CB-6001 Automatic Incline Loading Table (Ships in 3 Pieces, Capacity up to 20' Bars)
Price: Call For Price
Stock No:# 16452000
ADD TO MACHINE QUOTE:

hydmech - set of comb jaws with loading table
Name: Hydmech - Set of Comb Jaws with Loading Table
Price: Call For Price
Stock No:# 16423050
ADD TO MACHINE QUOTE:

Additional Information

CB 6001 Automatic Incline Loading Table - Technical Specifications

90 Degree Minimum/90 Degree Maximum:

Round Tube - 3/4"/4"    Square Tube - 3/4"/4"    Rectangle Tube - 3" x 3/4"/5" x 4"

Round Solid - 3/4"/3"    Square Solid - 3/4"/3"   Rectangle Solid - 5" x 1/2"/5" x 1-1/2"

Table Width - 31"       Maximum Load - 5000 lbs     Weight - 1100 lbs

Dimensions (L x W x H) - 50" x 248" x 47"

* Temporary specifications subject to verification.
