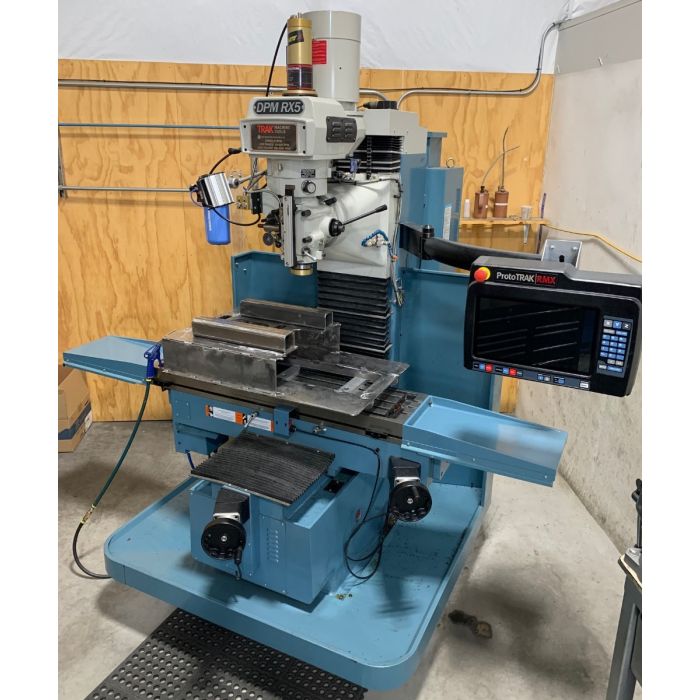

12" x 50" Used Trak CNC Bed Milling Machine, Mdl. DPM RX5, ProtoTRAK RMX CNC integrated into the machine at the factory, Generous Z-axis CNC travel, Efficient for any job: manual, 2-axis CNC or 3-axis CNC, 3 Jaw Chuck, Automatic Lubrication System, Tool Post, #C5280

Stock No:
#C5280
Manufacturer:
Southwestern Industries
Model:
DPM RX5
Capacity:
12" x 50"
Condition:
Used
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Capacity
12" x 50"
T-Slots (Number X Width)
3 X .63″ X 2.52″
Travel (X, Y, Z Axis)*
41″ X 20.5″ X 24″
Quill Diameter
3 15/16″
Maximum Quill Travel
5″
Spindle Taper
40 Taper
Spindle Speed Range RPM
40 - 600, 300 - 5000
Spindle Center to Column Face
20.5″
Head Swivel (side To Side)
+/- 90°
Quill Feeds Per Revolution Of Spindle
0.0015/0.003/0.006″
Maximum Weight of Workpiece
5 HP
Height of Table From Bottom of Bed
200-240V, 3P, 35A
Max Spindle Nose To Table
1760 LBS
Min Height
40″
Max Height
25.81″
Width Of Machine Including Table
87.5″
Overall Length With Electric Door Closed
102″
Overall Length With Electrical Door Open
94.13″
Overall Width Inc Full Table Traverse
82.5″
Footprint Of Machine
24″ X 48.4″
Weight Net / Shipping Lbs.
4400 / 4700
Rapid Traverse X, Y, Z
400 IPM On X And Y, 250 IPM On Z
Coolant Reservoir Capacity
10 Gallons
Drilling Max Capacity (diameter)
1″ Dia.
Milling Max Capacity
5 Inch³/min
Tapping Max Capacity
1 - 8
EQUIPPED WITH
ProtoTRAK RMX CNC integrated into the machine at the factory
Coolant System
Generous Z-axis CNC travel
Efficient for any job: manual, 2-axis CNC or 3-axis CNC
3 Jaw Chuck
Automatic Lubrication System
Tool Post
* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
