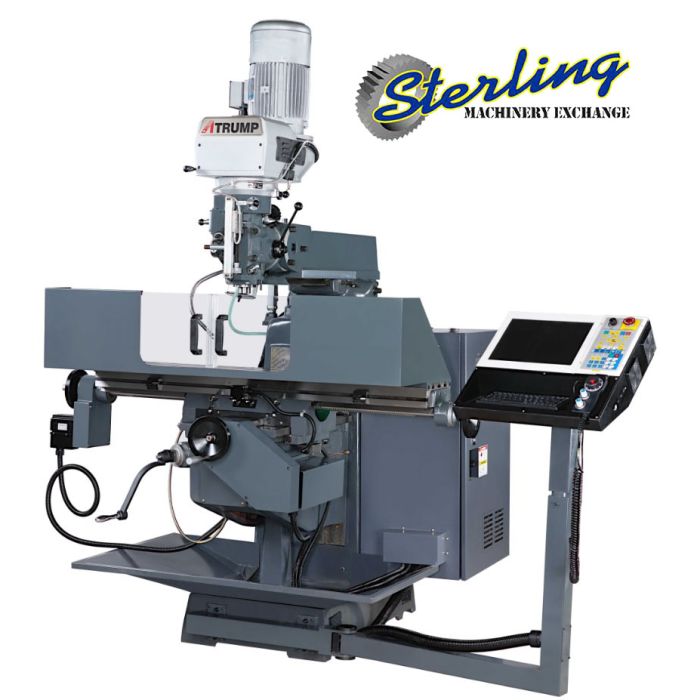

10" x 54" Brand New Atrump CNC Vertical Knee Milling Machine, Mdl. 3VK 2-Axis, Centroid M400I Control with 15" Color LCD, 2-Axis Constant CNC, Shop Floor Programming/ Conversational, Anti-Rust Chrome Quill, Auto Lubrication System, Precision APEC Class 7 Spindle Bearing to Ensure Spindle Runout Within 0.0002", Coolant System, USB 2.0 Port, 60 GB Solid State Hard Drive, RS-232 Interface, Chip Tray, Built-In Quartz Work Light, Leveling Bolts & Plate, Hardened & Ground with Turcite-B Coating Guide Way, FC30 Mechanite Castings Main Frame With Annealed And Stress Relieved For Long Term Reliability, Box Ways Design on Y & Z Axis to Provide Maximum Rigidity and Stability, Standard Way Covers on All Three Axes, Precision APEC Class 7 Spindle Bearing to Ensure Spindle Runout Within 0.0002", Hard Limit Switch, Tool Box W/Tools, Operation Manuals, #SM3VK2AX

Atrump
Stock No:
#SM3VK2AX
Manufacturer:
Atrump
Model:
3VK 2-AXIS
Capacity:
10" x 54"
Condition:
New
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Table Size
10" x 54"
Longitudinal Travel
31"
Cross Travel
14-1/2"
Spindle Quill Travel
5"
Knee Travel
16"
Spindle Taper
R-8
Spindle Speeds
70 to 5,000 RPM
Spindle To Table
3.75" to 16.75"
Spindle Center To Column Front Surface
6-7/8" to 23-1/2"
Quill Diameter
4"
Controller
Centroid
CNC Axis
2 Axis
Power Draw Bar
No
Speed Selector
Variable Speed
Load Capacity
600 Lbs.
Coolant Tank Capacity
7 Gallons
Horsepower
3 H.P.
Voltage
208V to 230V ~ 3 Phase
WEIGHT
3,200 Lbs.
EQUIPPED WITH
Coolant System
Centroid M400I Control With 15" Color LCD
2-Axis Constant CNC
Chip Tray
RS-232 Interface
Shop Floor Programming/ Conversational
Anti-Rust Chrome Quill
Precision APEC Class 7 Spindle Bearing To Ensure Spindle Runout Within 0.0002"
Auto Lubrication System
Hardened & Ground With Turcite-B Coating Guide Way
60 GB Solid State Hard Drive
USB 2.0 Port
Leveling Bolts & Plate
Standard Way Covers On All Three Axes
FC30 Mechanite Castings Main Frame With Annealed And Stress Relieved For Long Term Reliability
Box Ways Design On Y & Z Axis To Provide Maximum Rigidity And Stability
Built-In Quartz Work Light
Tool Box W/Tools
Hard Limit Switch
Operation Manuals
OPTIONAL EQUIPMENT AND TOOLING
atrump - software unlimited part program size
Name: Atrump - Software Unlimited Part Program Size
Price: Call For Price
Stock No:# 10630
ADD TO MACHINE QUOTE:

atrump - intercon offline conversational program software (for your desktop pc) #10730
Name: Atrump - Intercon Offline Conversational Program Software (For Your Desktop PC) #10730
Price: Call For Price
Stock No:# 10730
ADD TO MACHINE QUOTE:

atrump - coordinate system rotation software (csr) #10850
Name: Atrump - Coordinate System Rotation Software (CSR) #10850
Price: Call For Price
Stock No:# 10850
ADD TO MACHINE QUOTE:

atrump - scaling and mirroring g50 and g51 #10625
Name: Atrump - Scaling and Mirroring G50 and G51 #10625
Price: Call For Price
Stock No:# 10625
ADD TO MACHINE QUOTE:

atrump - dxf in cad drawing input software #10814
Name: Atrump - DXF In Cad Drawing Input Software #10814
Price: Call For Price
Stock No:# 10814
ADD TO MACHINE QUOTE:

atrump - engraving software #10740
Name: Atrump - Engraving Software #10740
Price: Call For Price
Stock No:# 10740
ADD TO MACHINE QUOTE:

atrump - 100 step mpg
Name: Atrump - 100 Step MPG
Price: Call For Price
Stock No:# 11069
ADD TO MACHINE QUOTE:

atrump - 6
Name: Atrump - 6" Angle Vise with Swivel Base (Import)
Price: Call For Price
Stock No:# VISE-6-0
ADD TO MACHINE QUOTE:

atrump - chip pan (aone knee mill)
Name: Atrump - Chip Pan (Aone Knee Mill)
Price: Call For Price
Stock No:# CHIP-A1
ADD TO MACHINE QUOTE:

atrump - installation of power draw bar
Name: Atrump - Installation of Power Draw Bar
Price: Call For Price
Stock No:# PDB-MAX-L
ADD TO MACHINE QUOTE:

atrump - 6
Name: Atrump - 6" Riser Block for Aone 4VK/5VK
Price: Call For Price
Stock No:# RB6-A1-4V
ADD TO MACHINE QUOTE:

atrump - 52pcs clamping kit slot: 5/8
Name: Atrump - 52pcs Clamping Kit Slot: 5/8" (16mm) stud: 1/2-13
Price: Call For Price
Stock No:# CK-001-0
ADD TO MACHINE QUOTE:

atrump - mist coolant system
Name: Atrump - Mist Coolant System
Price: Call For Price
Stock No:# CP-MIST-0
ADD TO MACHINE QUOTE:

atrump - power draw bar (maxi-torque) installed
Name: Atrump - Power Draw Bar (Maxi-Torque) Installed
Price: Call For Price
Stock No:# PDB-MAX-1
ADD TO MACHINE QUOTE:

atrump - z axis scale feedback for 3rd quill axis
Name: Atrump - Z Axis Scale Feedback for 3RD Quill Axis
Price: Call For Price
Stock No:# QUILL-Z-0
ADD TO MACHINE QUOTE:

atrump - table guard (aone knee mill)
Name: Atrump - Table Guard (Aone Knee Mill)
Price: Call For Price
Stock No:# TG-A1
ADD TO MACHINE QUOTE:

atrump - transformer: 18 h.p. (14kva) for 440 - 480v input power
Name: Atrump - Transformer: 18 H.P. (14KVA) for 440 - 480V input power
Price: Call For Price
Stock No:# TRAN-14KVA
ADD TO MACHINE QUOTE:
