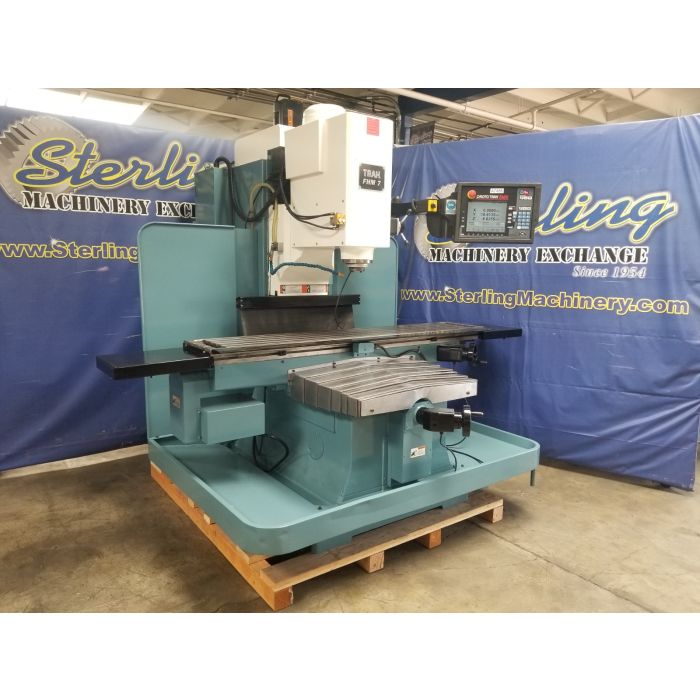

14" x 76" Used Trak Bed Type vertical Axis CNC Milling Machine (Warranty), Mdl. FHM7, Joystick, #40 Taper Spindle, ProtoTrak SMX CNC Controller, Chip Tray, Year(2012) #A7485

Stock No:
#A7485
Manufacturer:
Trak
Model:
FHM7
Capacity:
14" x 76"
Condition:
Used
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Table Size
76″ X 14″
T-slot
4 X 16mm X 63.5mm
Maximum Quill Travel
5.06″
Spindle Taper:
NMTB 40
Spindle Speed Range
200-5000
Spindle Center To Column
23″
Power Requirement
220V, 3P, 60HZ
Height of Table From Bottom of Bed
38.25″
Maximum Spindle Nose to Table
21.5″
Minimum Height
95.5″
Maximum Height
101″
Footprint Of Machine
37″ X 62.2″
Travel (X, Y, Z Axis)
60" X 23" X 20.5"
Quill Diameter
5.06"
Drilling Capacity
1"
Weight (Lbs.)
7975 Lbs.
EQUIPPED WITH
Joystick
#40 Taper Spindle
ProtoTrak SMX CNC Controller
Chip Tray
* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
