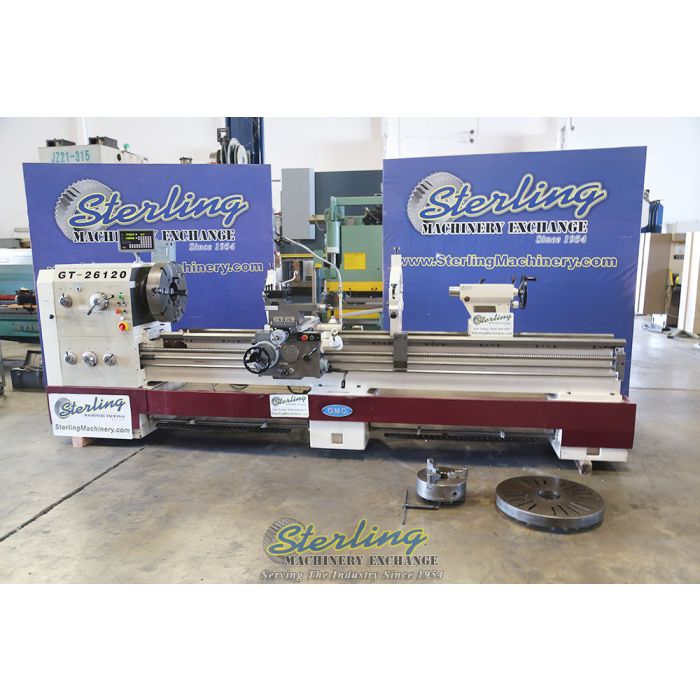

26"/34" x 120" Used GMC Precision Gap Bed Engine Lathe (Heavy Duty), Mdl. GT-26120, Sino Dro Mdl SD S6-2V, Steady Rest, 4 Jaw Chuck, Taper Attachment, Face Plate, 3 Jaw Chuck, Follow Rest, Inch - Metric Threading, 2- Foot Brakes, #A7060

Stock No:
#A7060
Manufacturer:
GMC
Model:
GT-26120
Capacity:
26"/34" x 120"
Serial Number:
170311094
Condition:
Used
Print a Quick Quote!
View Gallery
EnglishVideo
High-Quality Used GMC Precision Gap Bed Engine Lathe (Heavy Duty) - Model GT-26120, featuring Sino Dro Model SD S6-2V for precise measurements, includes essential accessories like Steady Rest, 4 Jaw Chuck, Taper Attachment, Face Plate, 3 Jaw Chuck, and Follow Rest for versatile machining operations. This lathe offers Inch - Metric Threading capabilities, equipped with 2-Foot Brakes for added safety. Stock #A7060. High-Quality Used GMC Precision Gap Bed Engine Lathe (Heavy Duty) - Model GT-26120, featuring Sino Dro Model SD S6-2V for precise measurements, includes essential accessories like Steady Rest, 4 Jaw Chuck, Taper Attachment, Face Plate, 3 Jaw Chuck, and Follow Rest for versatile machining operations. This lathe offers Inch - Metric Threading capabilities, equipped with 2-Foot Brakes for added safety. Stock #A7060. Elevate your machining capabilities with our latest demo! Introducing the 26"/34" x 120" USED GMC PRECISION GAP BED ENGINE LATHE (HEAVY DUTY), MDL. GT-26120. This powerhouse comes fully loaded with features: - SINO DRO MDL SD S6-2V - Steady rest - 4-jaw chuck - Taper attachment - Faceplate - 3-jaw chuck - Follow rest Check it out here:https://www.sterlingmachinery.com/used-gmc-precision-gap-bed-engine-lathe-heavy-duty-gt-26120-a7060.html Whether you're threading in inches or metrics, this machine has got you covered. Plus, with 2-foot brakes, safety and control are paramount. Don't miss out on this opportunity to upgrade your equipment! Visit Sterling Machinery Exchange for pricing, specifications, and more: [Sterlingmachinery.com](https://www.sterlingmachinery.com). 💼💥 #GMC #UsedEngineLathe #GT26120 #Metalworking #PrecisionMachinery #IndustrialEquipment #HeavyDuty #TradeIn #BuyNow #SterlingMachineryExchange
DETAILED SPECIFICATION
Capacity
26" x 120"
Swing Over Bed
26"
Length of Work Piece
120"
Swing Over Cross Slide
16-1/2"
Swing in Gap
34-1/4"
Width Of Bed
15-1/2"
Gap to Spindle
9"
Gap to Chuck Jaws
6"
Spindle Bore
4-1/8" / D1-8
Taper of Spindle Center
MT#6
Spindle Speeds
36-1600 rpm / 12 Steps
Longitudinal Feeds
0.0023-0.093 IPR / 65 Kinds
Cross Feeds
0.0011-0.04 IPR / 65 Kinds
Inch Threads
28.2 TPI / 27 Kinds
Metric Threads
1-14mm / 22 Kinds
Module Threads
0.5-7mm / 18 Kinds
Diametral Pitch Threads
56-4 DP / 24 Kinds
Top Slide Travel
5-3/4"
Cross Slide Travel
14"
Longitudinal Rapid Traverse
18 FPM
Cross Rapid Traverse
8 FPM
Diameter of Tail Stock Quill
3"
Travel of Tail Stock Quill
6"
Taper of Tail Stock Quill Center
MT#5
4 Way Tool Post Size
1" x 1"
Longitudinal Leadscrew Diameter/Pitch
3" / 2 TPI
Rapid Traverse Motor
1/3 HP, 220/440V ~ 3 Phase
Coolant Pump Motor
1/8 HP, 220/440V ~ 3 Phase
Horsepower
15 HP
Voltage
220/440V ~ 3 Phase
Dimension (L x W x H)
182" x 45" x 66"
EQUIPPED WITH
Face Plate
3 Jaw Chuck
4 Jaw Chuck
Sino Dro Mdl SD S6-2V
Taper Attachment
Steady Rest
Follow Rest
Inch - Metric Threading
2- Foot Brakes
* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
