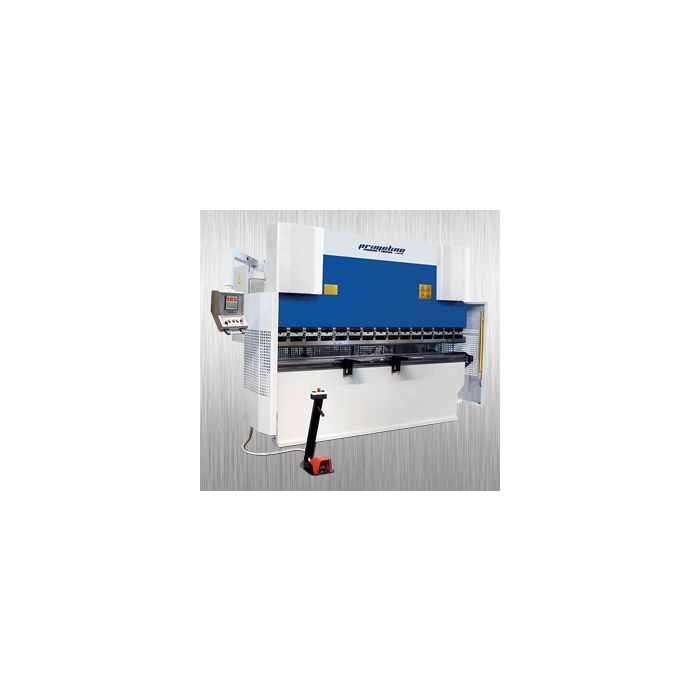

70 Ton x 8' Brand New Comeq Primeline CNC Hydraulic Press Brake, Mdl. S70C8, Flush Floor Machine, Extremely Rigid Upper Beam, Robust Frame, Multiple Hard Chromed Cylinder System, Built In Overload Protection, Quick Approach & Return Speeds, Slow Approach in Manual Mode for Tool Alignment, Adjustable Stroke of Hydraulic Cylinders for Maximum Machine & Tool Flexibility, Fast Cycle Time/Quick Approach & Return Speeds, Hydraulic Drive System, Manual, Semi-Automatic & Automatic Operation, Ergonomically Designed Control Panel, 2 Linear Encoders Located on Each End of Upper Beam Make Measuring of the RAM Position, 2 Servo Valves Electrically Controlled by DNC (Axes Y1 & Y2), Choice of Narrow or Wide Bed Bolted to the Lower Beam to Allow Flexibility with Tooling, Emergency Stop Palm Button on Foot Pedal Assembly, Hydraulic Fluid, Key Lock Switch for ON/OFF Power Supply & Selector of Modes of Operation, 1 Instruction Manual, 1 Programming Manual, 1 Operation & Service Manual, Call for Information & Pricing on Options, 19.69" Deep Throat, Standard Wila Manual Crowning, Servo Driven R Back Gauge, Choice of Cybelec Modeva PAC or Delem DA-66T Controller, X Axis (Programming of Flange Dimension/Back Gauge Position), Y Axes (Y1/Y2) (Programming of Ram Position Including Tiling for Tapered Bends & X), 1 Set of Adjustable Punch Holders (Hold American & European Style Forming Punches), Choice of Tooling Voucher OR 4 Way Die with Segmented Gooseneck Punch, #SMS70C8 Manufacturer: Primeline by COMEQ
DETAILED SPECIFICATION
Operation Type
CNC Control
Distance Between Columns
84.68"
X Axis Speed
23.63 in/sec
X. Axis Speed
23.63 in/sec
R Axis Speed
14.18 in/sec
Rapid Approach Speed
5.67 in/sec
Pressing Speed
0.47 in/sec
Hydraulic Tank Capacity
29 Gallons
Voltage
220/440V ~ 3 Phase
Dimensions (L x W x H)
163.45" x 92.56" x 98.46"
EQUIPPED WITH
Extremely Rigid Upper Beam
Multiple Hard Chromed Cylinder System
Built In Overload Protection
Quick Approach & Return Speeds
Slow Approach In Manual Mode For Tool Alignment
Adjustable Stroke Of Hydraulic Cylinders For Maximum Machine & Tool Flexibility
Fast Cycle Time/Quick Approach & Return Speeds
Manual, Semi-Automatic & Automatic Operation
Ergonomically Designed Control Panel
2 Linear Encoders Located On Each End Of Upper Beam Make Measuring Of The RAM Position
2 Servo Valves Electrically Controlled By DNC (Axes Y1 & Y2)
Choice Of Narrow Or Wide Bed Bolted To The Lower Beam To Allow Flexibility With Tooling
Emergency Stop Palm Button On Foot Pedal Assembly
Key Lock Switch For ON/OFF Power Supply & Selector Of Modes Of Operation
1 Instruction Manual, 1 Programming Manual, 1 Operation & Service Manual
Call For Information & Pricing On Options
Standard Wila Manual Crowning
Servo Driven R Back Gauge
Choice Of Cybelec Modeva PAC Or Delem DA-66T Controller
X Axis (Programming Of Flange Dimension/Back Gauge Position)
Y Axes (Y1/Y2) (Programming Of Ram Position Including Tiling For Tapered Bends & X)
1 Set Of Adjustable Punch Holders (Hold American & European Style Forming Punches)
Choice Of Tooling Voucher OR 4 Way Die With Segmented Gooseneck Punch
OPTIONAL EQUIPMENT AND TOOLING
Name: Comeq - CNC Motorized Wila Crowning
Name: Comeq - Top Mechanical Wila Clamping NSCL-I-Pro Without Tool
Name: Comeq - Bottom Mechanical Wila Clamping NSCR-I-Pro Without Tool
Name: Comeq - Top Mechanical Wila Clamping for American Die Without Tool ASCL-I-MC/UPB
Name: Comeq - Bottom Mechanical Wila Clamping for American Die Without Tool ASCR-I-MC/UPB
Name: Comeq - Top Hydraulic Wila Clamping NSCR-I-PRO Without Tool
Name: Comeq - Bottom Hydraulic Wila Clamping NSCR-I-PRO Without Tool
Name: Comeq - Top Hydraulic Wila Clamping Premium NSCL-II-PREMIUM
Name: Comeq - Bottom Hydraulic Wila Clamping Premium NSCR-II-PREMIUM
Name: Comeq - Top Hydraulic Wila Clamping for American Tools without Tool ASXL-I-HC/UPB
Name: Comeq - Bottom Hydraulic Wila Clamping for American Tools without Tool ASCR-I-HC/UPB
Name: Comeq - Promecam Hydraulic Fast Clamping
Name: Comeq - AKAS Laser & Safety PLC (CE)
Name: Comeq - AKAS Laser (Motorized) & Safety PLC (CE)
Name: Comeq - Lasersafe and Safety PLC (CE)
Name: Comeq - Front Light Barrier & Safety PLC (CE)
Name: Comeq - High Speed (Up to 7.09"/sec) Approach & Return Speed
Name: Comeq - Additional Back Gauge Finger
Name: Comeq - Additional Front Support Arm
Name: Comeq - Air Condition for Electrical Box
Name: Comeq - Second Foot Pedal
Name: Comeq - Central Lubrication Manual Pump
Name: Comeq - Central Lubrication Motorized
Name: Comeq - Rear Side Cover Protection
Name: Comeq - Tool Cabinet
Name: Comeq - Special Color
Name: Comeq - Controller Options: ModEva RA Touch, Delem DA-69 Touch
Name: Comeq - 4 Axis 2D Control (CANNOT to be used with other Delem Options)
Name: Comeq - Laser Angle Measurement
Name: Comeq - AP3 + AP4 Sheet Follower
Name: Comeq - Throat Depth 29.53"
Name: Comeq - 4 Axis, X+R+Z1+Z2
Name: Comeq - 5 Axis, X1+X2+R+Z1+Z2
Name: Comeq - 6 Axis, X1+X2+R1+R2+Z1+Z2
* Temporary specifications subject to verification. All quotations subject to prior sale.
New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
