9" x 49" Brand New GMC Manual Variable Speed Knee Type Vertical Milling Machine with DRO, Mdl. GMM-949VPKG, OEM DRO, 2 Axis, Installed, Table Power Feed X, Installed, ISO 9001 Certified, Meehanite Casting, Turcite B Coating on X/Y Ways, Variable Speed, Hardened & Ground Dovetail Guideways, Hand Scraped Precision Ways, Hardened & Ground Table & Ground Table T-Slots, Precision Ground ACME Leadscrews, Chromed Ground Quill, Chromed Dials, Adjustable Ways, Hand Brake on Mill Head, Tilting & Rotating Head, One Shot Lubrication System, Front & Rear Rubber Chip Guards, One Manual Draw Bar, Two Year Industrial Warranty on Parts, Made In Taiwan, Tool Box With Tools, #SMGMM949VPKG

Stock No:
#SMGMM949VPKG
Manufacturer:
GMC
Model:
GMM-949VPKG
Capacity:
9" X 49"
Condition:
New

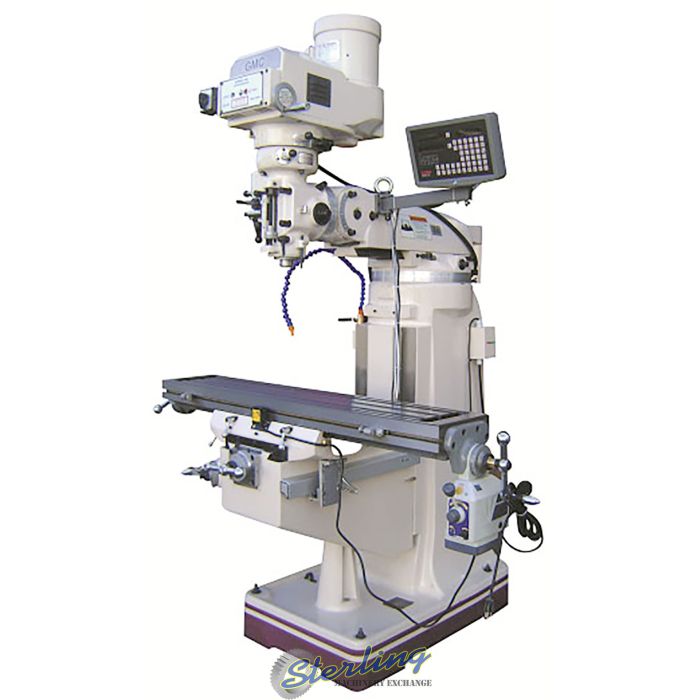

Brand New GMC Manual Variable Speed Knee Type Vertical Milling Machine with DRO
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Table Size
9" x 49"
Table Load Capacity
650 LBS
X Axis Travel
35-1/2"
Y-Axis Travel
12"
Z-Axis Travel
17"
Ram Travel
12"
Spindle Taper
R8
Spindle Diameter
3-3/8"
Spindle Travel
5"
Table T-Slot Size
5/8" x 3 Slots
Spindle Speed
70 - 4300 rpm / Variable Speed
Head Swivel
90 Degree Left & Right
Horsepower
3 HP
Voltage
220/440V ~ 3 Phase
Dimensions (L x W x H)
.
WEIGHT
2650 lbs
EQUIPPED WITH
Made In Taiwan
One Shot Lubrication System
ISO 9001 Certified
Variable Speed
Meehanite Casting
Turcite B Coating On X/Y Ways
Hardened & Ground Dovetail Guideways
Hand Scraped Precision Ways
Hardened & Ground Table & Ground Table T-Slots
Precision Ground ACME Leadscrews
Chromed Ground Quill
Chromed Dials
Adjustable Ways
Hand Brake On Mill Head
Tilting & Rotating Head
Front & Rear Rubber Chip Guards
One Manual Draw Bar
Two Year Industrial Warranty On Parts
Tool Box With Tools
OEM DRO, 2 Axis, Installed
Table Power Feed X, Installed
OPTIONAL EQUIPMENT AND TOOLING
gmc - 52 pcs clamping kit, ½”-13nc stud, 5/8” t-slot
Name: GMC - 52 pcs clamping kit, ½”-13NC stud, 5/8” T-slot
Price: $100.00
Stock No:# 900-0001
ADD TO MACHINE QUOTE:

gmc - 6
Name: GMC - 6" Vise
Price: $325.00
Stock No:# 900-0021
ADD TO MACHINE QUOTE:

gmc - 11 pcs r8 collets set, 1/8” – 7/8”
Name: GMC - 11 pcs R8 collets set, 1/8” – 7/8”
Price: $100.00
Stock No:# 900-0007
ADD TO MACHINE QUOTE:

* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
