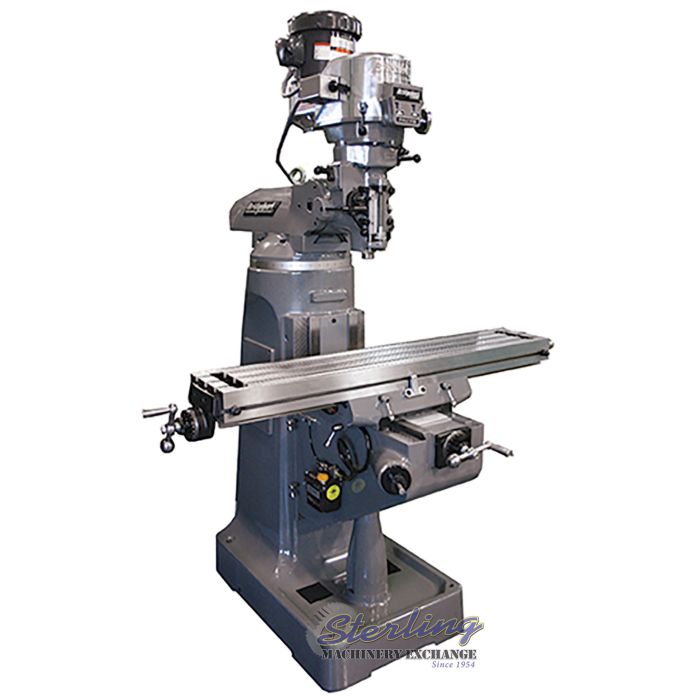

9" X 49" Brand New Bridgeport/Hardinge Series Standard Vertical Milling Machine, Mdl. BPKMR8STD, Metered, One-Shot Lubrication System, Chrome Plated Ways & Gibs, Color - Machine Tool Gray, Inch Screws & Dials, 360 Degree Rotation of RAM/Turret, Precision Ground & Hand Spotted Table with Dual Locks, Chrome/Nickel Alloy Spindle, Manual Feed on Table, Saddle & Knee, Large, Graduated, Easy Reading Dials, Spindle Guard, #SMBPSERIES1

Stock No:
#SMBPSERIES1
Manufacturer:
BRIDGEPORT
Capacity:
9" X 49"
Condition:
New
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Table
.
Overall Size
9" x 49"
Working Surface
9" x 49"
T-Slot Centers
3 @ 2.5"
T-Slot Size
0.625"
Height Above Floor (Max)
47.25"
Weight of Work Piece (Max)
750 Lbs.
Range
.
Table Travel (X Axis)
36"
Saddle Travel (Y Axis)
12"
Quill Travel
5"
Knee Travel (Z Axis)
16" (Knee Travel Reduced by 1" with Flood Coolant)
Throat Distance (Min/Max)
6.75" / 18.75"
Table to Spindle Nose Gage Line (Min/Max)
2.5" / 18.25"
Spindle
2 Head
A/C Power Rating
.
30 Minute Duty Cycle
3 H.P.
Continuous
2 H.P.
Tooling
R-8 Collets
Speed Range
.
High (Infinitely Variable)
500 - 4200 rpm
Low
60 - 500 rpm
Power Quill Feed
0.0015 in/rev
Manual Adjust
0.003 in/rev / 0.006 in/rev
Drilling Capacity
.
Power Quill Feed
3/4"
Milling Capacity (Mild Steel)
3/4"
Boring Range (Mild Steel)
6" Diameter
Spindle Diameter
1.875"
Quill Diameter
3.375"
Positioning
.
Auto (X,Y)
100 IPM
Manual (X,Y)
100 IPM
Feed Rate Range (X,Y)
0.1 - 35 ipm
Minimum Increment
0.0001"
Power Capacity
5.36 H.P.
Voltage
208/230/460V ~ 3 Phase
Floor Area
100" x 64" x 85"
HEIGHT
7.04'
Net Weight
1930 lbs
Shipping Weight
2100 LBS
EQUIPPED WITH
Metered, One-Shot Lubrication System
Chrome Plated Ways & Gibs
Color - Machine Tool Gray
Inch Screws & Dials
360 Degree Rotation Of RAM/Turret
Precision Ground & Hand Spotted Table With Dual Locks
Chrome/Nickel Alloy Spindle
Spindle Guard
Manual Feed On Table, Saddle & Knee
Large, Graduated, Easy Reading Dials
