Radial Drills are known for drilling, tapping, counterboring and reaming and countersinking.  What is the Best Radial Drill to Buy?

A radial drill, also known as a radial arm drill or radial drilling machine, is a type of machine tool used for drilling holes in large or heavy workpieces that are difficult to move.  They are commonly used in manufacturing, fabrication, and maintenance workshops and used to drill holes in various materials such as metal, woods, and plastics. The large vertical column of a radial drill, supports the horizontal arm or radial arm allowing rotation the drill head different directions. The rotation creates the ability to reach different positions on the workpiece without repositioning the entire machine.  The drill head has a motor, spindle and drill chuck used to raise or lower the height of the workpiece. Radial drills have a wide range of speed and feed settings accommodating various drilling requirements The large vertical column, supports the horizontal arm or radial arm allowing rotation the drill head different directions. The rotation creates the ability to reach different positions on the workpiece without repositioning the entire machine.

  1. Drilling is the process of creating a hole in a workpiece using a rotating cutting tool called a drill bit. When using a radial drill, the drill bit is mounted on a spindle that can move in different directions. The radial drill allows for positioning the drill bit at various angles and distances from the workpiece. By rotating the spindle and applying axial pressure, the drill bit removes material, creating a hole.
  2. Tapping is the process of creating internal threads in a pre-drilled hole. It is often used to create threaded holes for screws, bolts, or other fasteners. A tap, is the cutting tool with threads. The tap is inserted into the hole, and as it rotates, it then it cuts and forms the threads in the workpiece.
  3. Counterboring is the process of enlarging the upper portion of a pre-existing hole to create a flat-bottomed cavity called a counterbore. The purpose of counterboring is to provide a seat or recess for a fastener such as a bolt head, allowing it to sit flush with the surface of the workpiece. With a radial drill, a counterboring tool can be mounted on the spindle and positioned over the existing hole. The tool is then rotated and fed into the hole, removing material and creating the counterbore.
  4. Reaming is the process of refining and sizing a previously drilled hole to achieve a higher level of precision, smoothness, and accuracy. A reamer is a cutting tool with multiple flutes. With a radial drill, the reaming tool can be attached to the spindle and positioned in the hole. The reamer is rotated and moved in an axial direction to remove a small amount of material and improve the diameter, roundness, and finish off the hole.
  5. Countersinking is a machining operation used to create a conical recess in a material, typically a metal, to allow the head of a screw, bolt, or rivet to sit flush with or below the surface. It is done to improve the appearance, reduce the risk of snagging or damage, and ensure a secure fit between the fastener and the material.

Determining the capacity of a radial drill is essential. Consider several key specifications and measurements.

  1. Identify the drill's throat distance: The throat distance refers to the measurement from the center of the column to the center of the spindle. It represents the maximum distance from the column to the drill bit.
  2. Measure the spindle travel or quill travel: The spindle travel is the maximum vertical distance the spindle can move up and down. It determines the drill's drilling depth capacity.
  3. Consider the drill bit size: The drill bit size indicates the maximum diameter of the drill bit that the machine can accommodate.
  4. Evaluate the power and speed capabilities: The power rating of the drill motor and the available speed settings also contribute to the drill's capacity. Higher power and variable speed options enable drilling through tougher materials and larger diameters.
  5. Consult the experts at Sterling Machinery Exchange and Fabrication. They understand the manufacturer's specifications as they sell both new and used radial drills.  Sterling Machinery Exchange will assist you to purchase the right radial drill for your purposes.  Knowing the maximum capacities, such as throat distance, spindle travel, and drill bit size is the knowledge we have done for you to make a decision right for your manufacturing purposes.

Are you looking to Purchase a Radial Drill?

  1. Determine the maximum dimensions and weight of the workpieces you will be drilling. Radial drills come in various sizes and capacities, so choose a machine that can accommodate your workpiece requirements.
  2. Consider the maximum hole diameter and depth you need to achieve in your drilling operations. Ensure that the radial drill you select has the appropriate spindle capacity and quill stroke to meet your drilling requirements.
  3. Evaluate the power and speed capabilities of the radial drill. Higher horsepower and a wider range of spindle speeds will provide more flexibility to handle different materials and drilling tasks.
  4. The length of the radial arm determines the reach or distance from the column to the drill bit. Choose a machine with an arm length that allows you to position the drill head at the desired locations on your workpieces.
  5. Consider the overall build quality and construction of the radial drill. Look for a machine that is robust, rigid, and provides stability during drilling operations to ensure accurate and precise results.
  6. Check the ease of operation and adjustment features of the machine. Look for intuitive controls, smooth arm rotation, and convenient adjustments for the drill head height and position.
  7. Determine if there are any specific features or accessories that are important for your drilling applications. For example, coolant systems, tapping attachments, or digital readouts may be beneficial depending on your needs.
  8. Consider your budget and the available space in your workshop. Ensure that the chosen radial drill fits within your budget and can be accommodated in your workspace.

Popular brands of Radial Drills:

  1. Clausing Industrial manufactures radial drills. Their models are designed for various drilling applications.
  2. Wilton offers reliable and durable radial drills suitable for professional use.
  3. Jet Tools is a trusted brand that produces radial drill presses known for their precision and durability.
  4. Cincinnati Machine Tools offers a variety of radial drill models known for their reliability and performance.
  5. Walker Turner is not as well-known as some other brands, but Walker Turner has a reputation for producing solid radial drills.
  6. G&L (Giddings & Lewis) is a respected manufacturer radial drill presses. They are known for their robust construction and high precision.
  7. Powermatic is primarily recognized for its woodworking machinery, but they also produce radial drill presses. Top of Form
  8. Knuth is a well-known German brand that manufactures a diverse range of machinery, including radial drills.
  9. Acra Offers a variety of models with different specifications to meet various drilling requirements.
  10. Kao Ming is a Taiwanese brand that specializes in the production of radial drills. They have a range of models designed for precision drilling operations.
  11. Baileigh Industrial produces radial drills suitable for both industrial and workshop applications.

Sterling Machinery Exchange has completed the research about radial drills and has knowledge of the different manufacturers, as well as their reputations in producing quality radial drills. Ask the experts at Sterling Machinery Exchange and Fabrication to help you make an informed decision.  They will assist you to choose a radial drill that best suits your drilling requirements, budget, and workspace constraints.  If you want to sell your USED Radial Drill, Sterling Machinery buys and Sells Used Machinery.  We offer financing, Liquidations, Auctions and Appraisals.  We pay top dollar for Used Machines.

Call us now!  (626) 444-0311

Radial Drills MACHINERY AND EQUIPMENT FOR SALE


18 Items

Set Descending Direction
  1. Used

    5' x 15" Used Kao Ming Radial Drill, Mdl. KMR-1600DH, Made in Taiwan, Auto Lubrication, Power Column, Power Down Feed, Box Table With T Slotted Attachment, #A5871 Year: 1986

    Used-Kao Ming-Used Kao Ming Radial Drill-KMR-1600DH-A5871-01
    $17,500.00
    Used Kao Ming Radial Drill
    Stock No: #A5871 Manufacturer: Kao Ming Model: KMR-1600DH Capacity: 5' x 15"
    Category: Drills, Radial
    Condition: Used

  1. New

    3' x 8" Brand New Acra Radial Arm Drill, Mdl. FRD900, Coolant System, Box Table, Tool Box, Made In Tiawan, #SMFRD900

  2. New

    3' x 9" Brand New Baileigh Mechanical Radial Drill, Mdl. RD-1000M, MFG Number BA9-1008487, 1.57" Maximum Drilling Capacity, Heavy Duty Construction, Power Down Feed, Book Shape Work Table, Quick & Tapping Chuck, #SMRD1000M

    New-Baileigh-Brand New Baileigh Mechanical Radial Drill-RD-1000M-BA9-1008487-SMRD1000M-01
    Starting At:
    $13,325.00
    Stock No: #SMRD1000M MFG Number: BA9-1008487 Manufacturer: Baileigh Model: RD-1000M Capacity: 3' x 9"
    Category: Drills, Radial
    Condition: New
    Brand New Baileigh Mechanical Radial Drill Brand New Baileigh Mechanical Radial Drill Brand New Baileigh Mechanical Radial Drill

  3. New

    3' x 11" Brand New Acra Radial Arm Drill, Mdl. FRD1100, Coolant System, Box Table, Tool Box, Made In Tiawan, #SMFRD1100

  4. New

    4' x 11" Brand New Acra Radial Arm Drill, Mdl. FRD1300, Coolant System, Box Table, Tool Box, Made In Tiawan, #SMFRD1300

  5. New

    4' x 11" Brand New Acra Radial Arm Drill, Mdl. FRD1280, Coolant System, Box Table, Tool Box, Made In Tiawan, #SMFRD1280

  6. New

    4' x 13" Brand New Acra Radial Arm Drill, Mdl. ARD1600H, 19" x 24" Box Table, Coolant System, Tool Box, Made In China, #SMARD1600

  7. New

    4' x 13" BRAND NEW ACRA RADIAL ARM DRILL, Mdl. FRD1700, Made In Tiawan, Coolant System, Box Table, Tool Box, Roller Bearing At Basement Is Built Round A Double Column Provides Max. Rigidity And Accuracy, Protection Design For Limitary Safety Is Utilized In Every Transmission Section, Separate Speed Operation On Locking Installation Easy And Convenient To Operate. Excellent & Exact Precision, #SMFRD1700

  8. New

    5' x 13" Brand New Baileigh Mechanical Radial Drill, Mdl. RD-1600H, MFG Number BA9-1008486, 2" Maximum Drilling Capacity, Heavy Duty Construction, Power Down Feed, Large Column, Box Shape Work Table, Spindle Protection Cover, Quick Chuck, Tapping Chuck, Industrial Coolant System, Work Light, 220V / 3-Phase, #SMRD1600H

    New-Baileigh-Brand New Baileigh Radial Drill-RD-1600H-BA9-1008486-SMRD1600H-01
    Starting At:
    $25,625.00

    Finance as low as

    525.57 Per Mo.*
    Stock No: #SMRD1600H MFG Number: BA9-1008486 Manufacturer: Baileigh Model: RD-1600H Capacity: 5' x 13"
    Category: Drills, Radial
    Condition: New
    Brand New Baileigh Radial Drill Brand New Baileigh Radial Drill Brand New Baileigh Radial Drill

  9. New

    5' x 13" Brand New Knuth Radial Arm Drill, Mdl. R-60V, Coolant System, Cube Table, LED Work Lamp, Operator Manual, Quill teeth are precision-ground for a smooth feed and minimum wear, The drill head moves on hardened and ground guideways, Adjustable boring depth stop with large, easy to read scale and Nonius, All operator controls are placed within reach for convenient and practical handling and quick learning, Optimum size/performance ratio and a new drive technology make this a bestseller, Infinitely variable spindle speed and easy to read digital display, Independent hydraulic clamping: boom can be moved vertically without losing the spindle-to-bore alignment, Drill head and column can be clamped/released together or separately with the push of a button, A central lubrication system ensures reliable lubrication of the column, #SMR60V

  10. New

    5' x 17" Brand New Acra Radial Arm Drill, Mdl. ARD2000H, Coolant System, Tool Box, 24" x 31" Box Table, Made In China, #SMARD2000

  11. New

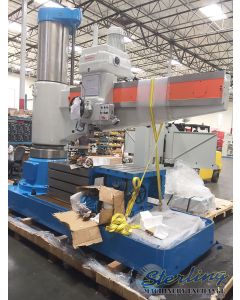

    6' x 21" Brand New Acra Radial Arm Drill, Mdl. ARDC2500, 31.5" x 39.37" Box Table, Coolant System, Main Parts And Key Parts Are Made By High Strength Cast And Special Steel Material, Heat Treatment Made By First-Class Equipment, Ensuring Durability, Machining Is made By means Of Specialized Equipment, To Ensure Basic Parts With Superior Quality, Clamping For Assemblies And Speed-Change Of Spindle Is Achieved By Hydraulic Power And Is Sensitive And Reliable, 16 Steps Of Spindle Speed And Feed Brings About Economic And HighEfficiency Cutting, Mechanical And Electrical Controls Are Centralized On The Headstock, With Easy And Rapid Operation, New Painting Technology And Improved Outward Appearance Reflects The Specialty Of Machines, Tool Box, Made In China, #SMARDC2500

  12. New

    6'.9" x 18" Brand New Knuth Radial Arm Drill, Mdl. R-80V, Base, column, boom and gear head are made of premium high-quality cast, Major design features include a large column and a highly torsion-resistant boom, Boom height adjustment via a powerful motorized drive and vertical spindle, The boom lifting gears run in an oil-bath for maximum reliability and minimum wear, Advanced column swivel design with optimized clamping features maximum rigidity and minimum clamping offset, Swivel axis and travel axis feature extremely smooth operation to make the operator's everyday production work easier, The gears feature hardened and precision-ground chrome-nickel steel gears for smooth and low-noise operation, All gear parts are lubricated reliably via oil pump, The main spindle runs on precision bearings and features an automatic spindle brake, Quill Teeth Are Precision-ground For A Smooth Feed And Minimum Wear, The Drill Head Moves On Hardened And Ground Guideways, All models feature adjustable overload clutches in the feeds, Adjustable Boring Depth Stop With Large, Easy To Read Scale And Nonius, All Operator Controls Are Placed Within Reach For Convenient And Practical Handling And Quick Learning, Powerful coolant system with coolant reservoir integrated into the machine foot, Optimum Size/performance Ratio And A New Drive Technology Make This A Bestseller, Infinitely Variable Spindle Speed And Easy To Read Digital Display, The quills feature guided counterweights for easy handling and increased safety, Independent Hydraulic Clamping: Boom Can Be Moved Vertically Without Losing The Spindle-to-bore Alignment, Drill Head And Column Can Be Clamped/released Together Or Separately With The Push Of A Button, A Central Lubrication System Ensures Reliable Lubrication Of The Column, #SMR80V

  13. New

    8" X 32" Brand New Knuth Radial Drill, Mdl. R 32 Basic, Coolant system, Cube Table, Halogen lights, #SMR32Basic

  14. New

    8" X 32" Brand New Knuth Radial Drill, Mdl. R 80 VT PRO, Touchscreen control panel, Automatic thread cutting cycles, Servo motor for quill feed, Accessory set for drilling, Cube Table, Manual central lubrication, Coolant System, LED work lights, Height adjustable spindle cover, Operator instructions, #SMR80VTPRO

  15. New

  16. New

    10" x 36" Brand New Knuth Radial Drill, Mdl. R 40 V, Coolant System, Cube Table, LED Work Lamp, Operator instructions, #SMR40V

  17. New

    29" x 8" Brand New Knuth Radial Drill, Mdl. SBF 40 TV 1000, Thread cutting function, Table feed TV 1000, Draw Bar, Drill Chuck, Tool-holder bits, Coolant System, Operator manual, #SMSBF40TV1000
