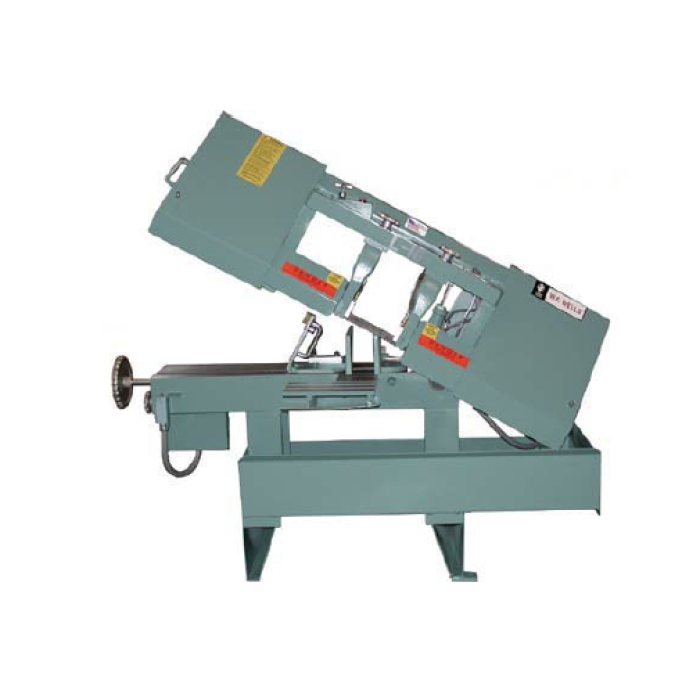

10" x 16" Brand New W.F. Wells Manual Horizontal Hinge Type Bandsaw, Mdl. L-10, 1" Bi-Metal Blade, Carbide Blade Guides, Manual Vise, Manual Blade Tensioner, 45 Degree Manual Swiveling Vise, Blade Brush, Built-In Coolant System, Automatic End-of-Cut Shut Off, Blade Powered Rotary Cleaning Brush, 45 Degree Swiveling Vise, All Motors & Controls, TEFC Motors, Electrics to NFPA 79 Standards, Low Voltage Protection, Overload Protection, Quick & Easy Blade Speed Change, Blade Speed & Work Selector Chart, All Safety Guards, Hydraulic Oil, Operator Manual & Parts List, #SML10

W.F. Wells
Stock No:
#SML10
Manufacturer:
W.F. Wells
Model:
L-10
Capacity:
10" x 16"
Condition:
New
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
45 Degrees
10" x 7.75"
45 Degree Round
7.75"
90 Degree Round
11"
Weight Capacity
2,000 Lbs.
Wheel Diameter
14.5"
Blade Speed
70 - 380 SFPM
Sawing Feed
Variable, Hydraulic
Sawing Force
Variable, Counterbalanced
Blade Guide
Carbide
Blade Tension
Manual
Band Wheel Size
14-1/2"
Vise
Manual
Blade Drive
3 H.P. (3ph), 1-1/2 H.P. (1ph)
Coolant Capacity
10 Gallons
Work Height From Floor to Table
28.25"
Warranty
One Year Labor, 90 Day Parts
Horsepower
1.5 H.P. (1ph), 3 H.P. (3ph)
Voltage
115/230V 1 Phase, 208/230/460/575V 3 Phase
WEIGHT
850 Lbs.
EQUIPPED WITH
Manual Vise
1" Bi-Metal Blade
Manual Blade Tensioner
Carbide Blade Guides
45 Degree Manual Swiveling Vise
Overload Protection
Built-In Coolant System
Blade Brush
Blade Powered Rotary Cleaning Brush
45 Degree Swiveling Vise
ALL MOTORS & CONTROLS
TEFC Motors
Automatic End-of-Cut Shut Off
Electrics To NFPA 79 Standards
Low Voltage Protection
Quick & Easy Blade Speed Change
Blade Speed & Work Selector Chart
All Safety Guards
Hydraulic Oil
Operator Manual & Parts List
* Temporary specifications subject to verification.
