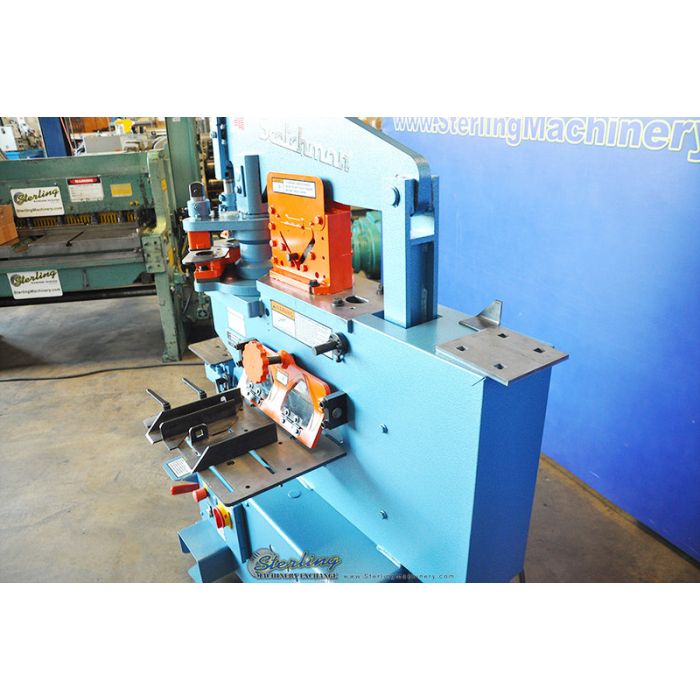

50 Ton Brand New Scotchman Ironworker (WITH 3 STATION TURRET HEAD), Mdl. 5014-ET, 50 - Ton Punch Station With 3 - Station Revolving Turret (1 - 1/4" In 1/2"), Keyed Punch Ram For Safety, Three 2" Die Holders, Three Punch nuts With Wrench And Three Strippers, One Round Punch & Die: Max. Diameter 1", 3 Year Manufacturers Warranty!, Electronic Stroke Control, #SM5014ET

Stock No:
#SM5014ET
Manufacturer:
Scotchman
Model:
5014-ET
Capacity:
50 Tons
Condition:
New
Brand New Scotchman Ironworker (WITH 3 STATION TURRET HEAD)
Print a Quick Quote!
View Gallery
EnglishVideo
50 Ton Brand New Scotchman Ironworker (WITH 3 STATION TURRET HEAD), Mdl. 5014 -TM, 50 - Ton Punch Station With 3 - Station Revolving Turret (1 - 1/4" In 1/2"), Keyed Punch Ram For Safety, Three 2" Die Holders, Three Punch nuts With Wrench And Three St 50 Ton Brand New Scotchman Ironworker (WITH 3 STATION TURRET HEAD), Mdl. 5014 -TM, 50 - Ton Punch Station With 3 - Station Revolving   Turret (1 - 1/4" In 1/2"), Keyed Punch Ram For Safety, Three 2" Die Holders, Three Punch nuts With   Wrench And Three Strippers, One Round Punch & Die: Max. Diameter 1", 3 Year Manufacturers Warranty!,  #SM5014TM   To Buy or sell new or used CNC for sale please visit http://www.Sterlingmachinery.com   http://www.sterlingmachinery.com/cnc_machines.php Call Today!  626-444-0311   To Sell Your Used Machining Center, CNC Milling Machines, CNC Press Brakes, CNC, Press, Machinery visit  http://www.sterlingmachinery.com/sell_machinery.php Used Machining Center, CNC Milling Machines, CNC Press Brakes, CNC Press, Sterling Machinery, New Dealer, Metal Working Machines, Machine Tools, cnc
SpanishVideo
50 Ton estrenar escoc?s Ferrer (CON 3 ESTACI?N DE TORRETA HEAD), MDL. 5014 -TM, 50 - Estaci?n Pu?etazo Ton Con 3 - Estaci?n Rotatorio Torreta (1 - 1/4 "En media"), con llave Pu?etazo Ram para la seguridad, tres 2 "Die titulares, nueces de tres golpes con 50 Ton estrenar escocés Ferrer (CON 3 ESTACIÓN DE TORRETA HEAD), MDL. 5014 -TM, 50 - Estación Puñetazo Ton Con 3 - Estación Rotatorio Torreta (1 - 1/4 "En media"), con llave Puñetazo Ram para la seguridad, tres 2 "Die titulares, nueces de tres golpes con la llave y tres separadores, Una Ronda Punch & Die:. Max Diámetro 1 ", 3 Año de fabricantes !, # SM5014TM   To Buy or sell new or used CNC for sale please visit http://www.Sterlingmachinery.com   http://www.sterlingmachinery.com/cnc_machines.php Call Today!  626-444-0311   To Sell Your Used Machining Center, CNC Milling Machines, CNC Press Brakes, CNC, Press, Machinery visit  http://www.sterlingmachinery.com/sell_machinery.php Used Machining Center, CNC Milling Machines, CNC Press Brakes, CNC Press, Sterling Machinery, New Dealer, Metal Working Machines, Machine Tools, cnc
DETAILED SPECIFICATION
Capacity
50 Ton
Punch Capacity:
Punch
1-1/4" in 1/2" Material
Punch
13/16" in 3/4" Material
Throat Depth
4"
Flat Bar Shear
14" Length
Angle Shear 90 Degrees
4" x 4" x 3/8"
Angle Shear 45 Degrees
2" x 2" x 3/8"
Optional Rectangular Notcher Capacity
2-1/2" x 3" x 5/16"
Optional 90 Degree V. Notcher Capacity
6" x 6" x 1/8"
Optional Rod Shear Capacity
1/4" to 1"
Optional Square Rod Shear Capacity
1/4" To 3/4"
Optional Square Tube Shear Capacity
1/2" to 1" x 12 Ga.
Optional Picket Tool Capacity
1/2", 3/4", 1", x 16 Ga.
Strokes Per Minute {Light Material} Punch Station
1/4" x 40 SPM
Strokes Per Minute {Heavy Material} Punch Station
3/4" x 17 SPM
Type
Hydraulic
Horsepower
3 H.P.
Dimensions (L x D x H)
48" x 29" x 67"
WEIGHT
1580 lbs
EQUIPPED WITH
14" Flat Bar Shear With 4-Way Reversible Blade
Keyed Punch Ram For Safety
Angle Shear
Rectangular Notcher
50 - Ton Punch Station With 3 - Station Revolving Turret (1 - 1/4" In 1/2")
Three 2" Die Holders, Three Punch Nuts With Wrench And Three Strippers
One Round Punch & Die: Max. Diameter 1"
Electronic Stroke Control
3 Year Manufacturers Warranty!
OPTIONAL EQUIPMENT AND TOOLING
scotchman- ironworker punch table
Name: Scotchman- Ironworker Punch Table
Price: Call For Price
Stock No:# 330050
ADD TO MACHINE QUOTE:

scotchman - work light - 110 volt (factory install)
Name: Scotchman - Work Light - 110 Volt (Factory Install)
Price: Call For Price
Stock No:# 090398
ADD TO MACHINE QUOTE:

scotchman - laser light for bar shear ​(factory install)
Name: Scotchman - Laser Light for Bar Shear ​(Factory Install)
Price: Call For Price
Stock No:# 033244
ADD TO MACHINE QUOTE:

scotchman - 12
Name: Scotchman - 12" Brake w/2" V Dies for 1/4" Material
Price: Call For Price
Stock No:# 433000
ADD TO MACHINE QUOTE:

scotchman - brake length gauge w/scale
Name: Scotchman - Brake Length Gauge w/Scale
Price: Call For Price
Stock No:# 026800
ADD TO MACHINE QUOTE:

scotchman - 12
Name: Scotchman - 12" Brake Table w/Scale & Squaring Arm #026865
Price: Call For Price
Stock No:# 026865
ADD TO MACHINE QUOTE:

scotchman - open end brake (max 1/4
Name: Scotchman - Open End Brake (Max 1/4" x 3" Flat or Angle Iron)
Price: Call For Price
Stock No:# 001360-001365
ADD TO MACHINE QUOTE:

scotchman - pipe notcher housing (separate dies for each size)
Name: Scotchman - Pipe Notcher Housing (Separate Dies for Each Size)
Price: Call For Price
Stock No:# 001195
ADD TO MACHINE QUOTE:

scotchman - 3/4
Name: Scotchman - 3/4" Schedule 40 Pipe Die Set
Price: $640.00
Stock No:# 001220
ADD TO MACHINE QUOTE:

scotchman - 1
Name: Scotchman - 1" Schedule 40 Pipe Die Set
Price: $640.00
Stock No:# 001222
ADD TO MACHINE QUOTE:

scotchman - 1-1/4
Name: Scotchman - 1-1/4" Schedule 40 Pipe Die Set
Price: Call For Price
Stock No:# 001224
ADD TO MACHINE QUOTE:

scotchman - 1-1/2
Name: Scotchman - 1-1/2" Schedule 40 Pipe Die Set
Price: Call For Price
Stock No:# 001226
ADD TO MACHINE QUOTE:

scotchman - 2
Name: Scotchman - 2" Schedule 40 Pipe Die Set
Price: $700.00
Stock No:# 001228
ADD TO MACHINE QUOTE:

scotchman - tool table pusher for pipe notcher
Name: Scotchman - Tool Table Pusher for Pipe Notcher
Price: Call For Price
Stock No:# 012450
ADD TO MACHINE QUOTE:

scotchman - 90 degree v-notcher (6
Name: Scotchman - 90 Degree V-Notcher (6" x 6" x 1/8" or 3" x 3" x 1/4")
Price: Call For Price
Stock No:# 540160
ADD TO MACHINE QUOTE:

scotchman - square tube shear (1/2
Name: Scotchman - Square Tube Shear (1/2" to 1" - 12 Ga. Max)
Price: Call For Price
Stock No:# 001350-016540
ADD TO MACHINE QUOTE:

scotchman - picket tool housing (separate dies for each size)
Name: Scotchman - Picket Tool Housing (Separate Dies for Each Size)
Price: Call For Price
Stock No:# 001293-001172-001175
ADD TO MACHINE QUOTE:

scotchman - 1/2
Name: Scotchman - 1/2" Upper & Lower Dies (14 Ga. Max)
Price: Call For Price
Stock No:# 001150-001249
ADD TO MACHINE QUOTE:

scotchman - 3/4
Name: Scotchman - 3/4" Upper & Lower Dies (14 Ga. Max)
Price: Call For Price
Stock No:# 001190-001292
ADD TO MACHINE QUOTE:

scotchman - 1
Name: Scotchman - 1" Upper & Lower Dies (14 Ga. Max)
Price: Call For Price
Stock No:# 001162-001264
ADD TO MACHINE QUOTE:

scotchman - 2-5/8
Name: Scotchman - 2-5/8" Die Holder
Price: Call For Price
Stock No:# 000687
ADD TO MACHINE QUOTE:

scotchman - rod shear (up to 1
Name: Scotchman - Rod Shear (Up to 1" Round or 3/4" Square)
Price: Call For Price
Stock No:# 017400
ADD TO MACHINE QUOTE:

scotchman - angle shear (4
Name: Scotchman - Angle Shear (4" x 4" x 3/8") when ordered separately
Price: Call For Price
Stock No:# 343425
ADD TO MACHINE QUOTE:

scotchman - angle iron miter guide (45 & 22 degrees)
Name: Scotchman - Angle Iron Miter Guide (45 & 22 Degrees)
Price: Call For Price
Stock No:# 343442
ADD TO MACHINE QUOTE:

scotchman - #20 round punch & die package
Name: Scotchman - #20 ROUND PUNCH & DIE PACKAGE
Price: Call For Price
Stock No:# 002505
ADD TO MACHINE QUOTE:

scotchman - deluxe #20 punch & die package
Name: Scotchman - DELUXE #20 PUNCH & DIE PACKAGE
Price: Call For Price
Stock No:# 002507
ADD TO MACHINE QUOTE:

scotchman - 8
Name: Scotchman - 8" Brake Package (includes 8" Brake & Brake Length Gauge w/Scale)
Price: $1,795.00
Stock No:# 002320
ADD TO MACHINE QUOTE:

scotchman - 12
Name: Scotchman - 12" Brake Package (includes 12" Brake, Brake Length Gauge w/Scale & 12" Brake Table w/Scale & Squaring Arm)
Price: Call For Price
Stock No:# 002321
ADD TO MACHINE QUOTE:

scotchman - 4
Name: Scotchman - 4" x 6" Die Riser Blocks (Set of 2)
Price: Call For Price
Stock No:# 018277
ADD TO MACHINE QUOTE:

scotchman - bolt - m12 x 75 shcs (2 required for 4
Name: Scotchman - Bolt - M12 x 75 SHCS (2 required for 4" x 6" Riser Blocks)
Price: Call For Price
Stock No:# 221328
ADD TO MACHINE QUOTE:

scotchman - shear table w/miter fence
Name: Scotchman - Shear Table w/Miter Fence
Price: Call For Price
Stock No:# 510045
ADD TO MACHINE QUOTE:

scotchman - 48
Name: Scotchman - 48" Deluxe Back Gauge
Price: Call For Price
Stock No:# 025603
ADD TO MACHINE QUOTE:

scotchman - infeed conveyor (24
Name: Scotchman - Infeed Conveyor (24" x 5' w/Support Arms)
Price: Call For Price
Stock No:# 026980
ADD TO MACHINE QUOTE:

scotchman - 6
Name: Scotchman - 6" Brake w/4-Way Lower V Die
Price: Call For Price
Stock No:# 001176
ADD TO MACHINE QUOTE:

scotchman - 8
Name: Scotchman - 8" Brake w/2" V Dies for 1/4" Material
Price: Call For Price
Stock No:# 433003
ADD TO MACHINE QUOTE:

scotchman - pipe notcher package (includes housing, 1-1/4
Name: Scotchman - Pipe Notcher Package (Includes Housing, 1-1/4" Sch. 40 Pipe Dies, 1-1/2" Sch. 40 Pipe Dies & Tool Table Pusher)
Price: Call For Price
Stock No:# 002302
ADD TO MACHINE QUOTE:

scotchman - punch pusher for pipe notcher
Name: Scotchman - Punch Pusher for Pipe Notcher
Price: Call For Price
Stock No:# 001194
ADD TO MACHINE QUOTE:

scotchman - weld coupon bender
Name: Scotchman - Weld Coupon Bender
Price: Call For Price
Stock No:# 024700-024720
ADD TO MACHINE QUOTE:

scotchman - #20 round punch & die package
Name: Scotchman - #20 ROUND PUNCH & DIE PACKAGE
Price: Call For Price
Stock No:# 002506
ADD TO MACHINE QUOTE:

scotchman - optional brake dies available
Name: Scotchman - Optional Brake Dies Available
Price: Call For Price
Stock No:# OPTIONALBRAKEDIES
ADD TO MACHINE QUOTE:

scotchman - tool table extension
Name: Scotchman - Tool Table Extension
Price: Call For Price
Stock No:# 533216
ADD TO MACHINE QUOTE:

scotchman - laser light for bar shear
Name: Scotchman - Laser Light for Bar Shear
Price: Call For Price
Stock No:# 033240
ADD TO MACHINE QUOTE:

scotchman - turret die holder spacer
Name: Scotchman - Turret Die Holder Spacer
Price: Call For Price
Stock No:# 001572
ADD TO MACHINE QUOTE:

scotchman - productivity package
Name: Scotchman - Productivity Package
Price: Call For Price
Stock No:# 002361
ADD TO MACHINE QUOTE:

scotchman - multi shear - special profile (45 & 50) - material sample required
Name: Scotchman - Multi Shear - Special Profile (45 & 50) - Material Sample Required
Price: Call For Price
Stock No:# 024490
ADD TO MACHINE QUOTE:

scotchman - multi shear - strut channel (45 & 50) - material sample required
Name: Scotchman - Multi Shear - Strut Channel (45 & 50) - Material Sample Required
Price: Call For Price
Stock No:# 024500
ADD TO MACHINE QUOTE:

Additional Information

Optional Scotchman Ironworker Accessories:
Call For Pricing.

CLICK HERE FOR A #20 PUNCH AND DIE PRICE LIST

CLICK HERE FOR A COMPLETE SCOTCHMAN IRONWORKER BROCHURE


Reasons to buy a Scotchman


  1. Scotchman is Made in U.S.A. -- and we can prove it!
  2. Scotchman offers the Best-in-the-Business 3 YEAR-WARRANTY!
  3. Scotchman has a SAFE punch & die change out.
  4. Scotchman punch is guided through a true vertical guide block.
  5. The punch can be safely left in a Scotchman ironworker while using the Angle Shear.
  6. The punch can be safely left in a Scotchman ironworker while using the Flat Bar Shear.
  7. The brake can be used without removing the punch on a Scotchman ironworker.
  8. A Scotchman Pipe Notcher can be used on the tool table without removing the punch.
  9. The Scotchman punch is Keyed to prevent shaped punches from spinning making it a SAFER machine.
  10. Scotchman ironworkers have a larger capacity angle shear.
  11. Calls made to Scotchman are answered by a person, not a machine.

Scotchman prides itself in manufacturing QUALITY, DEPENDABLE, AMERICAN Ironworkers.

Made in the U.S.A.





* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.

Similar Machines



Used Machines

New Machines
Used Machines

SHIPPING

We're able to obtain brokers for Cross country and worldwide deliveries and only hire fully insured Flatbed Double Drops, Single Drops and Permitted Loads.

Make sure to get insurance, as this is not usually included. All machines come banded and strapped to a pallet unless instructed otherwise.
Crating is optional and comes at extra charge.
Loading docks or ramps are required! If you do not have one, inform the shipping company and there will more than likely be an extra charge.
* Indicates required fields

Sterling Machinery Exchange can help you with shipping worldwide. We ship daily and can get amazing shipping rates to make your purchase easier

Please let us know your information and we can find out the cost to your door!
Types of Trucking We Offer:

*TRUCKLOAD SHIPPING* The Full Truckload Advantage encompasses a comprehensive, end-to-end range of cargo transit and logistics solutions, backed by cutting-edge shipping analytic and monitoring technology.

  • Reduced Cost Per Unit
  • Shortened Transit Times
  • Fewer Damages
  • Dedicated Capacity
  • More Cargo Insurance
  • Thousands of Carriers to Choose From
  • Ail or Rubber Tire Option
  • Full Truckload
    • Van
    • Flatbed
    • Standard 48' Flatbed
    • Step Deck
    • Removable Goose Neck
    • Over-dimensional
    • Conestoga
    • Curtain Van
    • Refrigerated
    • Double-drop/Lowboy
  • Partial Truckload
    • Consolidated Truckloads
    • Volume LTL
    • Dedicated Partial Truckload
  • Specialized Services
    • Cross Dock
    • E-track/Logistical Trailers
    • Break Bulk
    • Short Term Warehousing
    • TWIC/TSA Services
    • White Glove
  • Intermodal
    • 48' and 53' Containers
    • 20', 40', and 45'
    • International Containers & High Cubes
    • Drayage (Port, Rail)
  • *LTL SHIPPING*

Our LTL shipping offers a best-in-class proprietary Transportation Management System tailored to the needs of LTL shippers. CARRIER RATE 2.0 provides an industry-leading, all-in-one solution for obtaining quotes, booking, and managing shipments.

    • Choose your carrier based on cost, transit time, and preference
    • Choose from industry leading carriers for your specific shipment
    • Schedule pickups with one click!
    • Track and manage your shipments online
  • QUOTE
    • Enter Origin & Destination Zip Codes
    • Select Package Type
    • Enter Pallet Count for Pallet Rate
    • Enter Class and Weight
    • Add Accessorials
  • *EXPEDITED SHIPPING*

We understand our transportation and logistics customers are looking for ways to save time and money. Air freight shipping means on-time delivery is a top priority. Our technology, relationships, and team of industry professionals provide an unparalleled ability to meet your most important shipping needs. Services Offerings

    • Next Flight Out (NFO’s)
    • Next Day by 1030
    • Exclusive Use Vehicles (E.U.V.’s)
    • Next Day by Noon
    • Local Pickup/Delivery
    • Next Day by 5pm
    • 2nd Day by 1030
    • 2nd Day by Noon
    • 2nd Day by 5pm
    • 3rd Day by 1030
    • 3rd Day by Noon
    • 3rd Day by 5pm
    • 3-5 Day Economy Ground
    • Trade Show Pickup/Delivery
    • Weekend Pickup/Delivery
    • Export/Import Freight
    • After Hours Pickup/Delivery
    • Project Freight/Distributions
    • Aircraft Charters
    • Ocean Services

Scotchman Industries, Inc. is a leading Manufacturer of Metal Fabrication Equipment, accessories and custom tools. From general to heavy-duty metal fabrication, to farm use, shipbuilding, technical schools, the U.S. military, Fortune 500 companies and the one-man hobby garage shop, Scotchman has been the preferred solution for our customers for nearly half a century.
