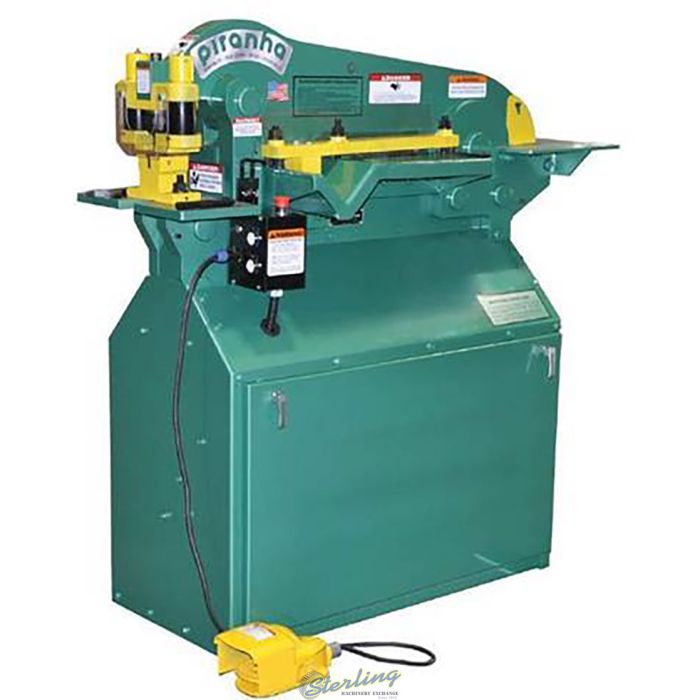

50 Ton Brand New Piranha Hydraulic Ironworker, Mdl. P-50, Flat Shear Station, Hold Down Assembly, Angle Shear, Punch Station, Quick Change Tooling, Instruction/Parts Book, Coupling Wrench, Coper-Notcher Station, Electric Foot Switch, Electric Limit Switches, #SMP50

Stock No:
#SMP50
Manufacturer:
PIRANHA
Model:
P-50
Capacity:
50 Ton
Condition:
New
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Punch Capacity
50 Ton
Hole Size (Max. Material)
13/16" (3/4")
Max. Hole Size (Material)
3" (3/16")
Throat Depth
5"
Closed Height w/o Die Block
7-3/4"
Open Height
11-1/2"
Stroke Length
3-3/4"
Platen Table Size
8" x 16"
Blade Length
13"
Plate Shear Capacity
3/4" x 6"
Angle Shear Capacity
3" x 3" x 3/8"
Coper Notcher Capacity
40 Ton
.
2-1/4" x 3" x 1/4"
.
2-1/4" x 3" x 1/4"
.
2-1/4" x 3" x 1/4"
.
2-1/4" x 3" x 1/4"
.
2-1/4" x 3" x 1/4"
Punch End Strokes Per Minute
30 @ 1/2"
Work Station Height
42"
Hydraulic Pump
3.6 gal/minute
Pounds per Square Inch
2800
Fluid Capacity
12 Gallons
Motor Speed
1800 RPM
Horsepower
3 HP
Voltage
230/460V ~ 3 Phase
Dimensions (L x W x H)
55" x 24" x 58"
WEIGHT
1,700 LBS
EQUIPPED WITH
Flat Shear Station
Hold Down Assembly
Angle Shear
Punch Station
Quick Change Tooling
Instruction/Parts Book
Coupling Wrench
Coper-Notcher Station
Electric Foot Switch
Electric Limit Switches
OPTIONAL EQUIPMENT AND TOOLING
piranha - 6
Name: Piranha - 6" Bending Attachment
Price: Call For Price
Stock No:# 4421660
ADD TO MACHINE QUOTE:

piranha - 12
Name: Piranha - 12" Bending Attachment
Price: Call For Price
Stock No:# 4421665
ADD TO MACHINE QUOTE:

piranha - 1-1/2
Name: Piranha - 1-1/2" Oversize Punch Attachment
Price: Call For Price
Stock No:# 4421641
ADD TO MACHINE QUOTE:

piranha - 2-3/4
Name: Piranha - 2-3/4" 28XX Punch Attachment (2" Max Hole) Oversize Punch Attachment
Price: Call For Price
Stock No:# 4421622
ADD TO MACHINE QUOTE:

piranha - 3-3/4
Name: Piranha - 3-3/4" 28XX Punch Attachment (3" Max Hole) Oversize Punch Attachment
Price: Call For Price
Stock No:# 4421625
ADD TO MACHINE QUOTE:

piranha - 5' quick set table extension attachment
Name: Piranha - 5' Quick Set Table Extension Attachment
Price: Call For Price
Stock No:# 4431618
ADD TO MACHINE QUOTE:

piranha - 10' quick set table extension attachment
Name: Piranha - 10' Quick Set Table Extension Attachment
Price: Call For Price
Stock No:# 4431619
ADD TO MACHINE QUOTE:

piranha - 3' backgauge, manual
Name: Piranha - 3' Backgauge, Manual
Price: Call For Price
Stock No:# 44217501
ADD TO MACHINE QUOTE:

piranha - 6' backgauge, manual
Name: Piranha - 6' Backgauge, Manual
Price: Call For Price
Stock No:# 44217506
ADD TO MACHINE QUOTE:

piranha - 9' backgauge, manual
Name: Piranha - 9' Backgauge, Manual
Price: Call For Price
Stock No:# 44217509
ADD TO MACHINE QUOTE:

piranha - pipe notcher die holder
Name: Piranha - Pipe Notcher Die Holder
Price: Call For Price
Stock No:# 4433631
ADD TO MACHINE QUOTE:

piranha - 3/4
Name: Piranha - 3/4" Schedule 40 Pipe Notching Die
Price: Call For Price
Stock No:# 4433642
ADD TO MACHINE QUOTE:

piranha - 1
Name: Piranha - 1" Schedule 40 Pipe Notching Die
Price: Call For Price
Stock No:# 4433636
ADD TO MACHINE QUOTE:

piranha - 1-1/4
Name: Piranha - 1-1/4" Schedule 40 Pipe Notching Die
Price: Call For Price
Stock No:# 4433637
ADD TO MACHINE QUOTE:

piranha - 1-1/2
Name: Piranha - 1-1/2" Schedule 40 Pipe Notching Die
Price: Call For Price
Stock No:# 4433638
ADD TO MACHINE QUOTE:

piranha - 2
Name: Piranha - 2" Schedule 40 Pipe Notching Die
Price: Call For Price
Stock No:# 4433639
ADD TO MACHINE QUOTE:

piranha - fig. dh pipe notching striker
Name: Piranha - Fig. DH Pipe Notching Striker
Price: Call For Price
Stock No:# 4433640
ADD TO MACHINE QUOTE:

piranha - 10 piece punch & die set
Name: Piranha - 10 Piece Punch & Die Set
Price: Call For Price
Stock No:# 820493IW000900
ADD TO MACHINE QUOTE:

piranha - 5 piece punch & die set
Name: Piranha - 5 Piece Punch & Die Set
Price: Call For Price
Stock No:# 822491IW000900
ADD TO MACHINE QUOTE:

piranha - chip bucket
Name: Piranha - Chip Bucket
Price: Call For Price
Stock No:# 0220143
ADD TO MACHINE QUOTE:

piranha - coper table guides, set of 3
Name: Piranha - Coper Table Guides, Set of 3
Price: Call For Price
Stock No:# 4421800
ADD TO MACHINE QUOTE:

piranha - single phase motor
Name: Piranha - Single Phase Motor
Price: Call For Price
Stock No:# PIRANHASINGLEPHASE
ADD TO MACHINE QUOTE:

piranha - channel die block
Name: Piranha - Channel Die Block
Price: Call For Price
Stock No:# 4421615
ADD TO MACHINE QUOTE:

piranha - punch quick set plate/angle gauging table
Name: Piranha - Punch Quick Set Plate/Angle Gauging Table
Price: Call For Price
Stock No:# 4421621
ADD TO MACHINE QUOTE:

Additional Information

Why Buy A Piranha P-50 Ironworker

Piranha P-50 ironworker machines are the entry-level of the iconic line of Piranha hydraulic ironworker machines, but they don’t lack the toughness and precision expected from a Piranha Ironworker. P-50 also has a nice list of available attachments to enhance its usefulness.

  • Industry leading cycle times—punch holes in less time than other ironworkers.
  • Urethane Strippers—Results in less part distortion, faster cycle times, no need for stripper height adjustment.
  • Integrated notching station—Low shear removes fillet for precise, burr-free cuts and clean notches.
  • Ergonomics—Convenient work height and visibility for all stations. The single work height also provides added benefits when using roller feed tables.
  1. Urethane Stripper Attachment- keeps material flat through the punching process, eliminating
    distortion.  The shorter required stroke gives you a faster punching cycle.
  2. Mechanical Shear Hold-downs- clamps material at change of material thickness.  Part movement is eliminated by clamping the part throughout the entire shearing cycle.
  3. Visibility- a direct line of sight over the hold down bar allows the operator to easily and accurately line up cuts to the shear blades.
  4. Flat Bar Shear- the low rake angle shear design results in flatter and higher quality sheared parts.  Shear blades have four usable edges giving you a longer life and less expensive blades.
  5. Angle Shear- the square upper angle knife has four cutting radius to better fit the angle being sheared, giving you lower distortion and a higher quality cut.
  6. Coper Notcher- the low rake angle blade keeps part flat and under control during notching.

STANDARD EQUIPMENT

  • Mechanical Hold Down
  • Coupling Wrench
  • Punch Holder, Urethane Stripper, & Die Block
  • 1/2” Allen Wrench
  • Set of Angle Knives
  • Foot Switch
  • Set of Coper Knives
  • Set of 13” Plate Shear Knives
  • Instruction/Parts Book/Video Link



Piranha P-50 Ironworker ATTACHMENTS

BENDING ATTACHMENTS
The bending attachments are designed to increase productivity on the punch end of the machine. The 6” versions are mounted parallel to the beam allowing you unlimited throat depth, while the 12″ version mounts perpendicular to the beam. The 6” bending attachment comes with a single “V” opening. The 12” bending attachment includes a 4-way bending die with openings of 7/8”, 1-1/8”, 1-1/2” and 2”.

OVERSIZE PUNCHING ATTACHMENTS
Oversize Attachments mount in place of standard punch attachment and are designed to punch a 50-ton maximum hole.

QUICKSET GAUGING TABLES
The quickset gauging table option is a productivity tool for the punch end. The gauging table mounts around the die block and uses finger stops to repeat a series of punched holes in flat bar or angle. The attachment comes with a table and flat bar gauge with measuring rules for easy hole location layout. A 5’ or 10’ extension can be added to the left or right side of the base table for longer part processing.

SHEARING BACKGAUGES
The backgauge option is a productivity tool for the shearing section. The backgauge mounts on the drop side of the machine and uses a compression sleeve for infinite, easy adjustment to gauge cut lengths in the angle, flat bar and round bar shearing stations. A support leg is included with the 9’ version.

PIPE NOTCHING ATTACHMENTS
The pipe notching attachments mount easily on the platen table in place of the punch die block. This is a single notch system. To notch both sides of the pipe you must rotate the pipe and realign with the notching die for the second notch.

The pipe notching attachment is made up of three separate pieces, the pipe notching die holder, the pipe notching die and the pipe notching striker.

  • The pipe notching die holder is a universal die holder that bolts to the platen table and can accept 3/4” through 2” Schedule 40 Pipe Notching Dies
  • The pipe notching dies are spring return die sets that mount in the pipe notching die holder. Standard sizes of pipe notching dies are 3/4”, 1”, 1-1/4”, 1-1/2” and 2” Schedule 40. Other sizes of pipe and tube notching dies are available upon request but may require a different die holder.
  • The pipe notching striker is an extended flat bottom punch used in your standard stripper assembly to press down the pipe notching die.

What ironworkers are the best?  Scotchman or Piranha?

Benefits of Piranha Hydraulic Ironworkers over Scotchman Hydraulic Ironworkers (50 Ton Model P-50 Vs 5014-EC)

The hydraulic ironworker is a valuable tool for cutting and punching metal in industrial manufacturing. When comparing two of the industry's leading brands - Piranha and Scotchman - there are several advantages that make Piranha hydraulic ironworkers stand out. The 50 ton model (P-50) is better suited for precision work than the Scotchman 5014-EC model.

Increased Speed & Productivity

Piranha hydraulic ironworkers offer greater speed and productivity than Scotchman models. With faster cutting speeds, operators can complete more jobs in less time, resulting in greater output and reduced costs. Additionally, the quick release shear blade clamping system allows for blade changes with minimal effort, decreasing downtime between jobs.

Better Accuracy & Control

Piranha hydraulic ironworkers provide superior accuracy and control when cutting complex shapes or making precision cuts at tight tolerances. This makes them ideal for jobs that require precise cuts or intricate shapes, as it eliminates the need for additional machining or costly adjustments afterwards.

More Durable Materials & Components

Piranha hydraulic ironworker frames are made from heavy-duty steel plates that are more durable than those used on most Scotchman models. The higher tensile strength of these materials ensures they will perform consistently under high stress applications while maintaining their shape over extended periods of use. Additionally, their components feature tough alloy steel gears which are resistant to wear and tear, improving longevity and reducing maintenance costs over time.

For most industrial applications, Piranha hydraulic ironworkers offer a superior performance advantage over traditional Scotchman models such as the 50 ton P-50 or 5014-EC. Not only do they provide greater speed, accuracy and durability but they also reduce operational costs due to improved productivity and lower maintenance requirements.



* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
