16"/23" x 40" Brand New GMC Precision Gap Bed Lathe, Mdl. GML-1640HD, #6 morse Taper, 10" 4-Jaw Chuck With Set Reversible Jaws, 5-1/2" Large Steady Rest With Roller Jaws, 2" Follow Rest, #6 morse Taper, Full Length Splash Guard, 2 Dead Centers & 1 Reducing Sleeve, Thread Chasing Dial, Taper Turning Attachment (Installed), Leveling Pads, One Piece Solid Cast Iron Machine Base, Oil Pump On Apron For All Guideways & Leadscrews, Spindle Nose 2-1/16", Free SINO DRO installed, #SMGML1640HD

Stock No:
#SMGML1640HD
Manufacturer:
GMC
Model:
GML-1640HD
Capacity:
16"/23" x 40"
Condition:
New

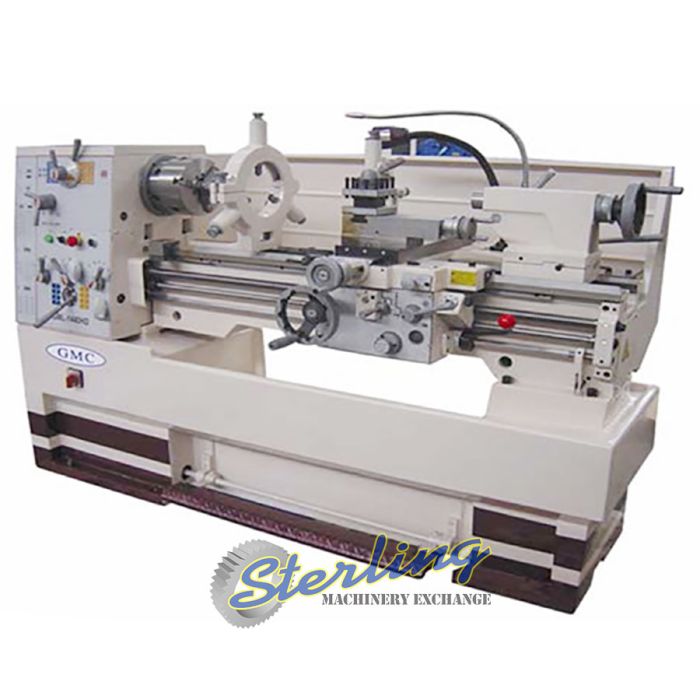

Brand New GMC Precision Gap Bed Lathe
Print a Quick Quote!
View Gallery
EnglishVideo
16"/23" x 40" Brand New GMC Precision Gap Bed Lathe, Mdl. GML-1640HD, 8" 3-Jaw Chuck with Set Reversible Jaws, 10" 4-Jaw Chuck with Set Reversible Jaws, 12" Face Plate, 5-1/2" Large Steady Rest with Roller Jaws, 2" Follow Rest, Removable Gap, Foot Brake, 16"/23" x 40" Brand New GMC Precision Gap Bed Lathe, Mdl. GML-1640HD, 8" 3-Jaw Chuck with Set Reversible Jaws, 10" 4-Jaw Chuck with Set Reversible Jaws, 12" Face Plate, 5-1/2" Large Steady Rest with Roller Jaws, 2" Follow Rest, Removable Gap, Foot Brake, Halogen Work Light, 4 Way Tool Post, Full Length Splash Guard, 2 Dead Centers & 1 Reducing Sleeve, Thread Chasing Dial, Tool Box, Taper Turning Attachment (Installed), Leveling Pads, One Piece Solid Cast Iron Machine Base, Oil Pump on Apron for all Guideways & Leadscrews, Spindle Nose 2-1/16",  #SMGML1640HD Please check it out here  https://www.sterlingmachinery.com/new-used-lathes-sale-engine-lathe/brand-new-gmc-precision-gap-bed-lathe.html To Buy or sell new or used Lathe for sale please visit https://www.sterlingmachinery.com/lathes.php Call Today!  626-444-0311 To Sell Your Used Lathe visit    https://www.sterlingmachinery.com/sell_machinery.php
DETAILED SPECIFICATION
Capacity
16-1/16" x 40"
Swing Over Bed
16-1/16"
Length of Work Piece
40"
Swing Over Cross Slide
10-1/4"
Swing in Gap
23-1/4"
Width Of Bed
10-1/4"
Gap to Spindle
8-1/2"
Gap to Chuck Jaws
3-1/2"
Spindle Bore
2-1/16" / D1-6
Taper of Spindle Center
MT#6 (with MT#6/MT#4 sleeve)
Spindle Speeds
45 - 1800 rpm / 16 Steps
Longitudinal Feeds
0.0018-0.07 IPR / 42 Kinds
Cross Feeds
0.0009-0.03 IPR / 42 Kinds
Inch Threads
70 - 2 TPI / 45 Kinds
Metric Threads
0.2 - 14mm / 39 Kinds
Module Threads
0.3-3.6mm / 18 Kinds
Diametral Pitch Threads
8 - 40 DP / 21 Kinds
Top Slide Travel
4-1/4"
Cross Slide Travel
8-1/2"
Spindle Length without Chuck
20-1/2"
Leadscrew Length x TPI
1-1/4" x 4 TPI
Diameter of Tail Stock Quill
2-1/16"
Travel of Tail Stock Quill
5"
Taper of Tail Stock Quill Center
MT#4
Coolant Pump Motor
1/8 HP / 220V only / 3 Phase
Horsepower
6 HP
Voltage
220V ~ 3 Phase
Dimension (L x W x H)
79" x 38" x 56"
WEIGHT
4150 lbs
EQUIPPED WITH
4 Way Tool Post
12" Face Plate
10" 4-Jaw Chuck With Set Reversible Jaws
Thread Chasing Dial
5-1/2" Large Steady Rest With Roller Jaws
#6 morse Taper
Halogen Work Light
2" Follow Rest
Taper Turning Attachment (Installed)
Leveling Pads
One Piece Solid Cast Iron Machine Base
Foot Brake
Full Length Splash Guard
Free SINO DRO installed
Oil Pump On Apron For All Guideways & Leadscrews
2 Dead Centers & 1 Reducing Sleeve
Removable Gap
Spindle Nose 2-1/16"
* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
