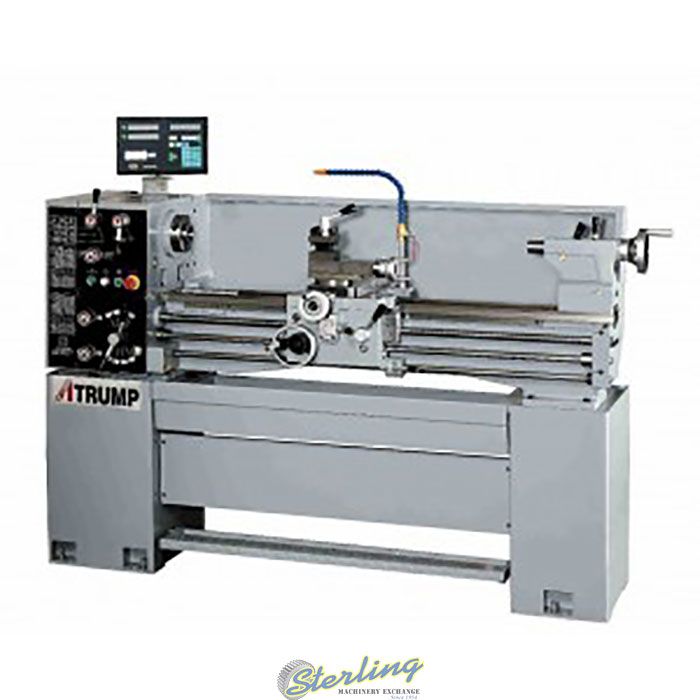

16"/21" x 40" Brand New Atrump Precision Gap Bed Engine Lathe, Mdl. LD-1640, D1-6 Back Plate 8", Hardened & Ground Bed Ways, Hardened & Ground Gears in Headstock, Rapid Foot Break, Precision Taper Roller Bearing, Feed Rod is Equipped with Over Load Safety Clutch, Apron Equipped with Interlocking Device to Prevent Feeding Inter-Gearing During Automatic Feeding, Change Gears, Rear Splash Guard, Steady Rest, 4 Jaw Independent Chuck 8", 3 Jaw Scroll Chuck 6", 4 Way Tool Post, Floor Stand, Follow Rest, Face Plate 10", Complete Electric Control Unit, Tool Box & Kits, Spindle Nose 2-3/16", #SMLD1640

Atrump
Stock No:
#SMLD1640
Manufacturer:
Atrump
Model:
LD-1640
Capacity:
16"/21" x 40"
Condition:
New
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Basic Dimension
16"/21" x 40"
Swing Over Gap
21-3/4"
Swing Over Cross Slide
9-1/2"
Distance Between Centers
40"
Bed
Width of Bed Ways
10"
Top Slide Travel
4"
Cross Slide Travel
8"
Spindle
Spindle Nose Mounting
D1-6
Spindle Bore
2-3/16"
Spindle Nose Taper & Sleeve
Outer M.T. #5, Inner M.T. #3
Range Of Spindle Speeds
12 Speed Gear Change
Thread & Feed
Range of Inch Threads
4 to 56 T.P.I. (32 kinds)
Range of Metric Threads
0.4 to 7.0 (30 kinds)
Range of longitudinal feeds
0.0017" to 0.0242"/rev
Range of Crossfeeds
0.0013" to 0.03919"/rev
Tailstock
Quill Taper
M.T. #4
Quill Travel
4-3/8"
Motor
Main Spindle Motor
5 H.P.
Coolant Pump Motor
1/8 H.P.
Warranty
One Year Limited Warranty
Voltage
208V to 230V (Max) ~ 3 Phase
Dimensions (L x W x H)
82" x 34" x 60"
WEIGHT
1896 lbs
EQUIPPED WITH
Spindle Nose 2-3/16"
4 Way Tool Post
Hardened & Ground Gears In Headstock
Rapid Foot Break
Tool Box & Kits
Rear Splash Guard
Precision Taper Roller Bearing
Steady Rest
Feed Rod Is Equipped With Over Load Safety Clutch
Apron Equipped With Interlocking Device To Prevent Feeding Inter-Gearing During Automatic Feeding
Complete Electric Control Unit
Follow Rest
Change Gears
4 Jaw Independent Chuck 8"
3 Jaw Scroll Chuck 6"
Floor Stand
Face Plate 10"
D1-6 Back Plate 8"
Hardened & Ground Bed Ways
OPTIONAL EQUIPMENT AND TOOLING
atrump - quick change tool post with 4 tool holders
Name: Atrump - Quick Change Tool Post with 4 Tool Holders
Price: $830.00
Stock No:# TLPT-QK16-0
ADD TO MACHINE QUOTE:

atrump - taper turning attachment
Name: Atrump - Taper Turning Attachment
Price: $1,380.00
Stock No:# TA-16
ADD TO MACHINE QUOTE:

atrump - face plate 14
Name: Atrump - Face Plate 14"
Price: $770.00
Stock No:# FC-14-0
ADD TO MACHINE QUOTE:

atrump - installation of any 2-axis dro
Name: Atrump - Installation of any 2-Axis DRO
Price: $325.00
Stock No:# DRO-LATH-0
ADD TO MACHINE QUOTE:

atrump - single saddle stop
Name: Atrump - Single Saddle Stop
Price: $140.00
Stock No:# 1P-STOP-16
ADD TO MACHINE QUOTE:

atrump - 4 position saddle stop
Name: Atrump - 4 Position Saddle Stop
Price: $150.00
Stock No:# 4P-STOP-16
ADD TO MACHINE QUOTE:

atrump - 2-axis import dro (brand: carmar, made in taiwan)
Name: Atrump - 2-Axis Import DRO (Brand: Carmar, Made in Taiwan)
Price: $1,260.00
Stock No:# SW-2-CM
ADD TO MACHINE QUOTE:

atrump - 2-axis newall dro equipment for xy axis
Name: Atrump - 2-Axis Newall DRO Equipment for XY Axis
Price: $2,800.00
Stock No:# C80-2-NW
ADD TO MACHINE QUOTE:

atrump - work light (110v, 55w)
Name: Atrump - Work Light (110V, 55W)
Price: $140.00
Stock No:# HL-110
ADD TO MACHINE QUOTE:

* Temporary specifications subject to verification.
