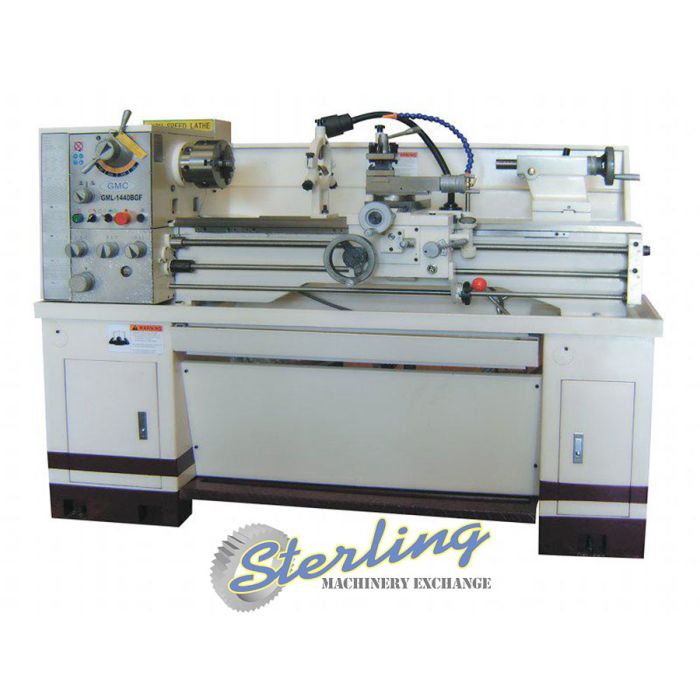

14"/19" x 40" Brand New GMC Precision Engine Lathe, Mdl. GML-1440BGF-3, 6" 3-Jaw Chuck with Set Reversible Jaws, 8" 4-Jaw Chuck with Set Reversible Jaws, 10" Face Plate, 3-3/4" Steady Rest, 2" Follow Rest, Foot Brake, Coolant System, Halogen Work Light, 4 Way Tool Post, Full Length Splash Guard, 2 Dead Centers & 1 Reducing Sleeve, Thread Chasing Dial, Spindle Nose 1-1/2", Tool Box, #SMGML1440BGF3

Stock No:
14"/19" x 40"
Brand New GMC Precision Engine Lathe
Print a Quick Quote!
View Gallery
14" x 40"
Length of Work Piece
Length of Cutting
Swing Over Cross Slide
Swing in Gap
Width Of Bed
Gap to Spindle
Gap to Chuck Jaws
Spindle Bore
1-1/2", D1-4
Taper of Spindle Center
Spindle Speeds
70 - 2000 rpm / 8 Steps
Longitudinal Feeds
0.00168-0.11750 IPV / 24 Kinds
Cross Feeds
0.00046-0.03231 IPR / 24 Kinds
Inch Threads
4 - 112 TPI / 56 Kinds
Metric Threads
0.1 - 7.0 mm / 44 Kinds
Diametral Pitch Threads
16 - 112 DP / 32 Kinds
Module Threads
0.1 - 1.75 mm / 34 Kinds
Top Slide Travel
Cross Slide Travel
Spindle Speeds
70/115/190/300/460/755/1255/2000 rpm
Diameter of Tail Stock Quill
Travel of Tail Stock Quill
Taper of Tail Stock Quill Center
Coolant Pump Motor
1/16 HP / 220V ~ 1 Phase
220V ~ 3 Phase
Dimension (L x W x H)
70" x 35" x 59"
1730 lbs
6" 3-Jaw Chuck With Set Reversible Jaws
4 Way Tool Post
8" 4-Jaw Chuck With Set Reversible Jaws
Tool Box
Thread Chasing Dial
10" Face Plate
3-3/4" Steady Rest
Coolant System
Halogen Work Light
2" Follow Rest
Foot Brake
Full Length Splash Guard
2 Dead Centers & 1 Reducing Sleeve
Spindle Nose 1-1/2"
* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
