1/4" x 5' Brand New GMC Initial Pinch Hydraulic Plate Roll Bending Machine, Mdl. HBR-0525, ISO 9001 Certified, Heavy Welded All Steel Construction, Easy Swing-Out Top Roller, Standard Cone Attachment Installed, 1 Each LED Indicator for Bending Roll Position, Safety Line All Around Machine for Emergency Stop, German Hydraulic Logic System Centrally Located & Quiet, Bending Roll is Hydraulic Powered Up/Down & Tilting Adjustment, Safety Type Removable Foot Pedal, Overload Protection & Disconnect Switch, All Rolls Made of High Grade Alloy Steel, All Rolls Run Forward & Reverse, Planetary Reduction Gear & Pump, Tool Box, One Year Industrial Warranty for Parts, Made In Taiwan, #SMHBR0525

Stock No:
#SMHBR0525
Manufacturer:
GMC
Model:
HBR-0525
Capacity:
1/4" x 5'
Condition:
New

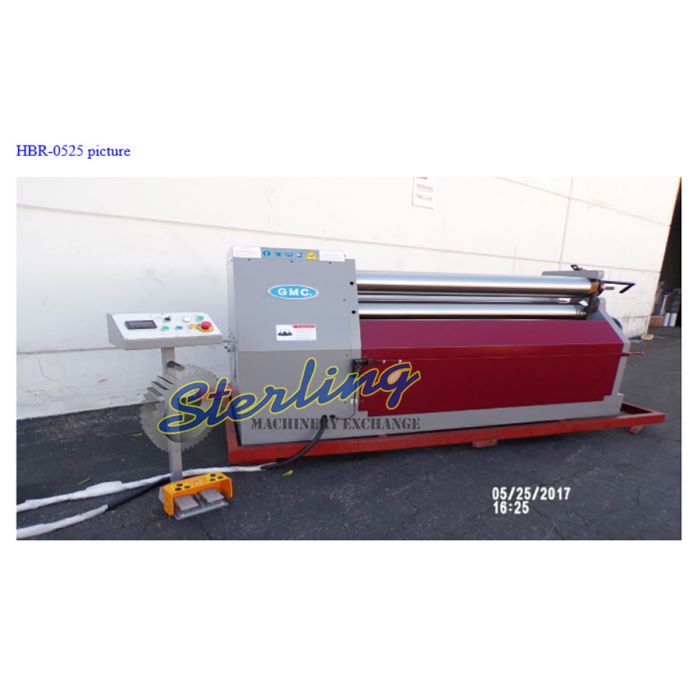

Brand New GMC Initial Pinch Hydraulic Plate Roll Bending Machine
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Roll Capacity
.
Mild Steel
1/4" x 5'
Stainless Steel
3/16" x 5'
Minimum Roll Diameter
9-7/8"
Roll Length
62"
Roll Diameter
7"
Pre-Bend
0.18"
Roll Speed
7 rpm
Roll Opening
1-5/8"
Oil Tank Capacity
25 Gallons
Horsepower
5.5 HP
Voltage
220/440V ~ 3 Phase
Dimensions (L x W x H)
102" x 38" x 58"
WEIGHT
6850 lbs
EQUIPPED WITH
Made In Taiwan
ISO 9001 Certified
Heavy Welded All Steel Construction
Easy Swing-Out Top Roller
Tool Box
Standard Cone Attachment Installed
1 Each LED Indicator For Bending Roll Position
Safety Line All Around Machine For Emergency Stop
German Hydraulic Logic System Centrally Located & Quiet
Bending Roll Is Hydraulic Powered Up/Down & Tilting Adjustment
Safety Type Removable Foot Pedal
Overload Protection & Disconnect Switch
All Rolls Made Of High Grade Alloy Steel
All Rolls Run Forward & Reverse
Planetary Reduction Gear & Pump
One Year Industrial Warranty For Parts
OPTIONAL EQUIPMENT AND TOOLING
gmc - safety fence for enclosure of the back side of machine (call for information/pricing)
Name: GMC - Safety Fence for Enclosure of the Back Side of Machine (call for information/pricing)
Price: Call For Price
Stock No:# GMC1
ADD TO MACHINE QUOTE:

gmc - cone attachment - to make cone parts (call for information & pricing)
Name: GMC - Cone Attachment - to make cone parts (call for information & pricing)
Price: Call For Price
Stock No:# GMC2
ADD TO MACHINE QUOTE:

gmc - 3 grooves for bending wire - 3/8
Name: GMC - 3 Grooves for Bending Wire - 3/8", 1/2", 5/8" (call for information/pricing)
Price: Call For Price
Stock No:# GMC3
ADD TO MACHINE QUOTE:

gmc - 460v ~ 3 phase (call for information/pricing)
Name: GMC - 460V ~ 3 Phase (call for information/pricing)
Price: Call For Price
Stock No:# GMC4
ADD TO MACHINE QUOTE:

* Temporary specifications subject to verification.
