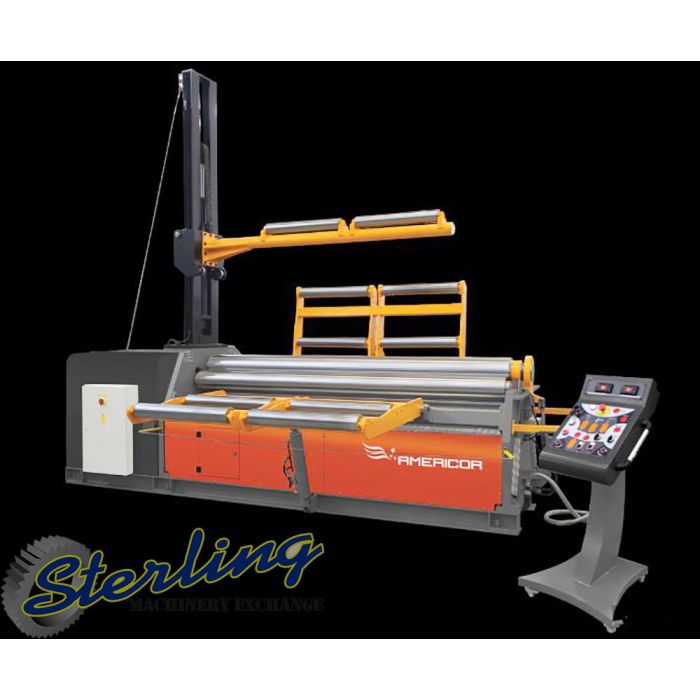

1/4" x 5' Brand New Comeq Americor Hydraulic 4 RDP Plate Bending Roll, Mdl. 4-RDP 150/5, Hydraulic Roll Adjustment for Bending & Prebending Operation, Hydraulic Pinch/Clamping Roll, Hydraulic Drop End, Overload Protection, Cone Bending Attachment, Induction Hardened Rolls, Roller Bearings on All Roll Shafts, Emergency Stop Cable at Front & Rear of Machine, Easy Tilt of Bending Rolls for Cone Bending, Extra Large Openings Between Top & Bottom Rolls, Hydraulic Oil & Manual, Rolling Control Console, Hardened Gears, Lineal Guided Roll Adjustment for the Bending Rolls, Welded Steel Frames, Hydraulic Balancing System, Top Roll Powered by Electrical Motor & Planetary Gearbox, Bottom Roll Powered with Universal Joint System, User's Manual, An Enhanced Drive System with NO BELTS, CHAINS, or EXTRA GEAR DRIVING SYSTEMS, #SM150/5-4RDP

Stock No:
#SM150/5-4RDP
Manufacturer:
Comeq
Model:
4-RDP 150/5
Capacity:
1/4" x 5'
Condition:
New
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Pre-Bending Capacity
0.177"
Bending Capacity
0.256"
Forming Width
72"
Working Length
61.05"
Working Speed
19.70 ft/min
Top Roll Diameter
5.91"
Bottom Roll Diameter
5.91"
Lateral Roll Diameter
5.12"
Horsepower
5 HP
Dimensions (L x W x H)
130" x 46" x 44"
WEIGHT
5214 lbs
EQUIPPED WITH
Hydraulic Roll Adjustment For Bending & Prebending Operation
Hydraulic Drop End
Hydraulic Pinch/Clamping Roll
Induction Hardened Rolls
Cone Bending Attachment
Overload Protection
Roller Bearings On All Roll Shafts
Emergency Stop Cable At Front & Rear Of Machine
Easy Tilt Of Bending Rolls For Cone Bending
Extra Large Openings Between Top & Bottom Rolls
Hydraulic Oil & Manual
Rolling Control Console
Hardened Gears
Lineal Guided Roll Adjustment For The Bending Rolls
Welded Steel Frames
Hydraulic Balancing System
Top Roll Powered By Electrical Motor & Planetary Gearbox
Bottom Roll Powered With Universal Joint System
An Enhanced Drive System With NO BELTS, CHAINS, Or EXTRA GEAR DRIVING SYSTEMS
OPTIONAL EQUIPMENT AND TOOLING
comeq - americor series hydraulic 2-speed drive
Name: Comeq - Americor Series Hydraulic 2-Speed Drive
Price: $4,375.00
Stock No:# COMEQA1
ADD TO MACHINE QUOTE:

* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
