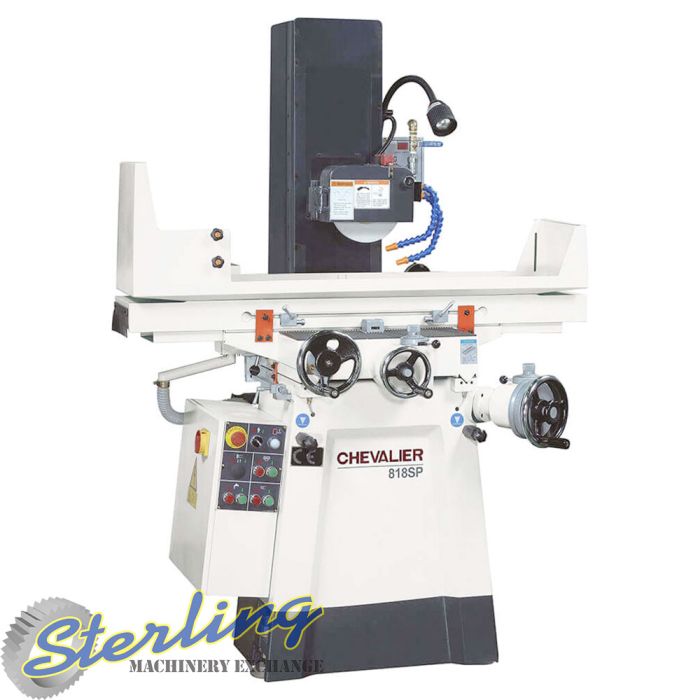

6" x 18" Brand New Chevalier Super Precision Surface & Form Grinder, Mdl. FSG-618SP, Vertical Handwheel at Waist Level, Table Traverses on Linear Ball Bearings & D2 Hardened & Ground Guideways, Honeycomb Ribbed Column with D2 Hardened & Ground Guideway Systems, Elevating & Crossfeed Leadscrews are Hardened & Ground, Saddle Travels on Turcite-B Coated & Hand Scraped Double V Guideways, 0.000050" Vertical Microfeed, Lubricated & Sealed Cartridge Type Spindle, Automatic lubrication system, Pin Spanner Wrench, Dust Protection Plate, Hex Wrenches, Leveling Pads, Coupling, Balancing Arbor, Magnetic Chuck Setting Screw, Spare Steel Wire, Wrench, Tool Box, Touch-Up Paint, Leveling Set Screws, Wheel Flange Extractor, Fuse, Lifting Rods, Wheel Flange & Weights, #FSG618SP

Stock No:
#SMFSG618SP
Manufacturer:
Chevalier
Model:
FSG-618SP
Capacity:
6" x 18"
Condition:
New
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Table Size
6" x 18"
Max. Grinding Length
20"
Max. Grinding Width
8"
Max. Distance From Table Surface to Spindle Centerline
20"
Downfeed Handwheel Per Graduation
0.0001"
Downfeed Handwheel Per Revolution
0.050"
Microfeed
0.000050"
Crossfeed Handwheel per Graduation
0.001"
Crossfeed Handwheel per Revolution
0.200"
Grinding Spindle Drive
.
Speed
3450 RPM
Power Rating
2 HP
Grinding Wheel Size (Dia. x Width x Bore)
8" x 1/2" x 1-1/4"
Voltage
230V
WEIGHT
2090 lbs
EQUIPPED WITH
Vertical Handwheel At Waist Level
Table Traverses On Linear Ball Bearings & D2 Hardened & Ground Guideways
Tool Box
Honeycomb Ribbed Column With D2 Hardened & Ground Guideway Systems
Elevating & Crossfeed Leadscrews Are Hardened & Ground
Saddle Travels On Turcite-B Coated & Hand Scraped Double V Guideways
Leveling Pads
0.000050" Vertical Microfeed
Lubricated & Sealed Cartridge Type Spindle
Automatic Lubrication System
Pin Spanner Wrench
Dust Protection Plate
Balancing Arbor
Hex Wrenches
Coupling
Magnetic Chuck Setting Screw
Spare Steel Wire
Wrench
Touch-Up Paint
Leveling Set Screws
Wheel Flange Extractor
Fuse
Lifting Rods
Wheel Flange & Weights
OPTIONAL EQUIPMENT AND TOOLING
chevalier - diamond dresser with diamond (0.5k)
Name: Chevalier - Diamond Dresser with Diamond (0.5k)
Price: Call For Price
Stock No:# B03-0601
ADD TO MACHINE QUOTE:

chevalier - chevalier (6
Name: Chevalier - Chevalier (6" x 18") - Electromagnetic Chuck
Price: Call For Price
Stock No:# B09-0106
ADD TO MACHINE QUOTE:

chevalier- chuck controller (with variable holding power & auto demagnetizer)
Name: Chevalier- Chuck Controller (With Variable Holding Power & Auto Demagnetizer)
Price: Call For Price
Stock No:# B23-0106
ADD TO MACHINE QUOTE:

chevalier - kanetsu or chevalier - permanent magnetic chuck
Name: CHEVALIER - Kanetsu or Chevalier - Permanent Magnetic Chuck
Price: Call For Price
Stock No:# B09-0102
ADD TO MACHINE QUOTE:

chevalier - inclinable 4
Name: Chevalier - Inclinable 4" x 7" - Permanent Magnetic Chuck
Price: Call For Price
Stock No:# B09-0104
ADD TO MACHINE QUOTE:

chevalier - inclinable 6
Name: Chevalier - Inclinable 6" x 12" - Permanent Magnetic Chuck
Price: Call For Price
Stock No:# B09-0105
ADD TO MACHINE QUOTE:

chevalier - chevalier fine pole chuck
Name: Chevalier - Chevalier Fine Pole Chuck
Price: Call For Price
Stock No:# B09-0110
ADD TO MACHINE QUOTE:

chevalier - inclinable 6
Name: Chevalier - Inclinable 6" x 12" - Electromagnetic Chuck
Price: Call For Price
Stock No:# B09-0601
ADD TO MACHINE QUOTE:

chevalier - installation charge - single axis
Name: Chevalier - Installation Charge - Single Axis
Price: Call For Price
Stock No:# INSTALL1AXIS
ADD TO MACHINE QUOTE:

chevalier - installation charge - double axis
Name: Chevalier - Installation Charge - Double Axis
Price: Call For Price
Stock No:# INSTALL2AXIS
ADD TO MACHINE QUOTE:

chevalier - precision vise (2
Name: Chevalier - Precision Vise (2" x 3")
Price: Call For Price
Stock No:# B11-0101
ADD TO MACHINE QUOTE:

chevalier - precision vise (2-1/2
Name: Chevalier - Precision Vise (2-1/2" x 4")
Price: Call For Price
Stock No:# B11-0102
ADD TO MACHINE QUOTE:

chevalier - precision vise (3
Name: Chevalier - Precision Vise (3" x 4")
Price: Call For Price
Stock No:# B11-0103
ADD TO MACHINE QUOTE:

chevalier - precision vise (3-1/2
Name: Chevalier - Precision Vise (3-1/2" x 5")
Price: Call For Price
Stock No:# B11-0104
ADD TO MACHINE QUOTE:

chevalier - precision vise (4
Name: Chevalier - Precision Vise (4" x 5")
Price: Call For Price
Stock No:# B11-0105
ADD TO MACHINE QUOTE:

chevalier - wheel balancing stand with leveling bubble
Name: Chevalier - Wheel Balancing Stand with Leveling Bubble
Price: Call For Price
Stock No:# B15-0102
ADD TO MACHINE QUOTE:

chevalier - balancing stand (roller type)
Name: Chevalier - Balancing Stand (Roller Type)
Price: Call For Price
Stock No:# B15-0601
ADD TO MACHINE QUOTE:

chevalier - combination coolant & dust collector (9 gal)
Name: Chevalier - Combination Coolant & Dust Collector (9 gal)
Price: Call For Price
Stock No:# B17-0101D
ADD TO MACHINE QUOTE:

chevalier - heavy duty dust collector
Name: Chevalier - Heavy Duty Dust Collector
Price: Call For Price
Stock No:# B17-0102D
ADD TO MACHINE QUOTE:

chevalier - coolant equipment with magnetic separator (13-1/4 gal)
Name: Chevalier - Coolant Equipment with Magnetic Separator (13-1/4 gal)
Price: Call For Price
Stock No:# B17-0105D
ADD TO MACHINE QUOTE:

chevalier - combination coolant & dust collector with magnetic separator (9 gal)
Name: Chevalier - Combination Coolant & Dust Collector with Magnetic Separator (9 gal)
Price: Call For Price
Stock No:# B17-0106H
ADD TO MACHINE QUOTE:

chevalier - coolant system with paper filter (22-1/2 gal)
Name: Chevalier - Coolant System with Paper Filter (22-1/2 gal)
Price: Call For Price
Stock No:# B17-0107E
ADD TO MACHINE QUOTE:

chevalier - coolant system (11.1 gal)
Name: Chevalier - Coolant System (11.1 gal)
Price: Call For Price
Stock No:# B17-0110D
ADD TO MACHINE QUOTE:

chevalier - coolant system (24 gal)
Name: Chevalier - Coolant System (24 gal)
Price: Call For Price
Stock No:# B17-0901D
ADD TO MACHINE QUOTE:

chevalier - exhaust hood
Name: Chevalier - Exhaust Hood
Price: Call For Price
Stock No:# 0203-00019001
ADD TO MACHINE QUOTE:

chevalier - variable spindle speeds by a/c frequency control, 230v (factory installed)
Name: Chevalier - Variable Spindle Speeds by A/C Frequency Control, 230V (Factory Installed)
Price: Call For Price
Stock No:# BL48-0101
ADD TO MACHINE QUOTE:

chevalier - variable spindle speeds by a/c frequency control, 460v (factory installed)
Name: Chevalier - Variable Spindle Speeds by A/C Frequency Control, 460V (Factory Installed)
Price: Call For Price
Stock No:# BL48-0102
ADD TO MACHINE QUOTE:

chevalier - led machine lamp
Name: Chevalier - LED Machine Lamp
Price: Call For Price
Stock No:# B01-0104
ADD TO MACHINE QUOTE:

chevalier - wheel hub (flange & weights)
Name: Chevalier - Wheel Hub (Flange & Weights)
Price: Call For Price
Stock No:# B05-0101
ADD TO MACHINE QUOTE:

chevalier - punch former
Name: Chevalier - Punch Former
Price: Call For Price
Stock No:# B07-01011
ADD TO MACHINE QUOTE:

chevalier - chevalier (8
Name: Chevalier - Chevalier (8" x 18") - Permanent Magnetic Chuck
Price: Call For Price
Stock No:# B09-0103
ADD TO MACHINE QUOTE:

chevalier - chevalier fine pole (8
Name: Chevalier - Chevalier Fine Pole (8" x 18) - Permanent Magnetic Chuck
Price: Call For Price
Stock No:# B09-0604
ADD TO MACHINE QUOTE:

chevalier - chevalier (8
Name: Chevalier - Chevalier (8" x 18") - Electromagnetic Chuck
Price: Call For Price
Stock No:# B09-0607
ADD TO MACHINE QUOTE:

chevalier - kanetsu or chevalier permanent magnetic chuck (6
Name: Chevalier - Kanetsu or Chevalier Permanent Magnetic Chuck (6" x 12")
Price: Call For Price
Stock No:# B09-0101
ADD TO MACHINE QUOTE:

chevalier - chevalier transverse bar fine pole (6
Name: Chevalier - Chevalier Transverse Bar Fine Pole (6" x 12")
Price: Call For Price
Stock No:# B09-0602
ADD TO MACHINE QUOTE:

chevalier - chevalier transverse bar fine pole (6
Name: Chevalier - Chevalier Transverse Bar Fine Pole (6" x 12")
Price: Call For Price
Stock No:# B09-0608
ADD TO MACHINE QUOTE:

chevalier - chevalier electromagnetic chuck (6
Name: Chevalier - Chevalier Electromagnetic Chuck (6" x 12")
Price: Call For Price
Stock No:# B09-0605
ADD TO MACHINE QUOTE:

chevalier - chevalier transverse bar pole chuck (6
Name: Chevalier - Chevalier Transverse Bar Pole Chuck (6" x 18")
Price: Call For Price
Stock No:# B09-0609
ADD TO MACHINE QUOTE:

chevalier - chevalier transverse bar pole chuck (8
Name: Chevalier - Chevalier Transverse Bar Pole Chuck (8" x 18")
Price: Call For Price
Stock No:# B09-0610
ADD TO MACHINE QUOTE:

chevalier - elevating dro (18
Name: Chevalier - Elevating DRO (18"L)
Price: Call For Price
Stock No:# BL45-0106-F1Y
ADD TO MACHINE QUOTE:

chevalier - cross & elevating dro
Name: Chevalier - Cross & Elevating DRO
Price: Call For Price
Stock No:# BL45-0119-F2
ADD TO MACHINE QUOTE:

chevalier - parallel dressing attachment
Name: Chevalier - Parallel Dressing Attachment
Price: Call For Price
Stock No:# B13-1101
ADD TO MACHINE QUOTE:

chevalier - adapter for mounting e-type opti dresser
Name: Chevalier - Adapter for Mounting E-Type Opti Dresser
Price: Call For Price
Stock No:# B41-1102
ADD TO MACHINE QUOTE:

chevalier - splash guard with coolant nozzle
Name: Chevalier - Splash Guard with Coolant Nozzle
Price: Call For Price
Stock No:# B19-1102
ADD TO MACHINE QUOTE:

chevalier - micro crossfeed device
Name: Chevalier - Micro Crossfeed Device
Price: Call For Price
Stock No:# B39-1101
ADD TO MACHINE QUOTE:

chevalier - universal wheel guard for side forming
Name: Chevalier - Universal Wheel Guard for Side Forming
Price: Call For Price
Stock No:# B41-1101
ADD TO MACHINE QUOTE:

chevalier - rapid elevating system
Name: Chevalier - Rapid Elevating System
Price: Call For Price
Stock No:# B39-1102
ADD TO MACHINE QUOTE:

chevalier - installation charge for rapid elevating system
Name: Chevalier - Installation Charge for Rapid Elevating System
Price: Call For Price
Stock No:# RAPIDELEVATINGSYSTEMINSTALLATION
ADD TO MACHINE QUOTE:

* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.

Similar Machines

New-Birmingham-Brand New Birmingham Surface Grinder-WSG-618-SMWSG618-01
$9,950.00
Used-Harig-Used Harig Surface Grinder-618-P1032-01
$3,250.00
Stock No:#P1032
Manufacturer: Harig
Capacity: 6" x 18"
Category: Grinders
Subcategory: Surface, Reciprocating (Horizontal Spindle), N/C & CNC
Condition: Used
Used-Harig-Used Harig Surface Grinder-618-P1031-01
$3,750.00
Stock No:#P1031
Manufacturer: Harig
Capacity: 6" x 18"
Category: Grinders
Subcategory: Surface, Reciprocating (Horizontal Spindle), N/C & CNC
Condition: Used
Used-KENT-Used Kent Manual Suface Grinder (Late Model)-KGS-618-A7484-01
$5,450.00
Stock No:#A7484
Manufacturer: KENT
Capacity: 6" x 18"
Category: Grinders
Subcategory: Surface, Reciprocating (Horizontal Spindle), N/C & CNC
Condition: Used

New-Birmingham-Brand New Birmingham Manual Surface Grinder-WSG-818-SMWSG818-01
Starting At:
$11,750.00

Used Machines

Used-Webb-Used Webb Heavy Duty Surface Grinder-612-A4105-01
$3,850.00
Stock No:#A4105
Manufacturer: Webb
Capacity: 6" x 12"
Category: Grinders
Subcategory: Surface, Reciprocating (Horizontal Spindle), N/C & CNC
Condition: Used
Used-Mitsui-Used Mitsui Surface Grinder-MSG-200MH-A5009-01
$3,750.00
Stock No:#A5009
Manufacturer: Mitsui
Capacity: 6" x 12"
Category: Grinders
Subcategory: Surface, Reciprocating (Horizontal Spindle), N/C & CNC
Condition: Used
Used-Boyar Schultz-Used Boyar Schultz Manual Surface Grinder W/ Electro Magnetic Chuck and Control-612-A7263-01
$3,250.00
Stock No:#A7263
Manufacturer: Boyar Schultz
Capacity: 6" x 12"
Category: Grinders
Subcategory: Surface, Reciprocating (Horizontal Spindle), N/C & CNC
Condition: Used
Used-Boyar Schultz-Used Boyar Schultz Manual Surface Grinder W/ Electro Magnetic Chuck and Control-612-A7320-01
$2,950.00
Stock No:#A7320
Manufacturer: Boyar Schultz
Capacity: 6" x 12"
Category: Grinders
Subcategory: Surface, Reciprocating (Horizontal Spindle), N/C & CNC
Condition: Used
Used-Boyar Schultz-Used Boyar Schultz Manual Surface Grinder W/ Electro Magnetic Chuck and Control-H612-A7319-01
$2,950.00
Stock No:#A7319
Manufacturer: Boyar Schultz
Capacity: 6" x 12"
Category: Grinders
Subcategory: Surface, Reciprocating (Horizontal Spindle), N/C & CNC
Condition: Used
Used-Harig-Used Harig Surface Grinder-612-P1030-01
$3,250.00
Stock No:#P1030
Manufacturer: Harig
Capacity: 6" x 12"
Category: Grinders
Subcategory: Surface, Reciprocating (Horizontal Spindle), N/C & CNC
Condition: Used
Used-Harig-Used Harig Surface Grinder-612-P1029-01
$3,750.00
Stock No:#P1029
Manufacturer: Harig
Capacity: 6" x 12"
Category: Grinders
Subcategory: Surface, Reciprocating (Horizontal Spindle), N/C & CNC
Condition: Used
Used-Harig-Used Harig Surface Grinder (No Chuck)-612-P1027-01
$1,250.00
Stock No:#P1027
Manufacturer: Harig
Capacity: 6" x 12"
Category: Grinders
Subcategory: Surface, Reciprocating (Horizontal Spindle), N/C & CNC
Condition: Used
Used-Harig-Used Harig Surface Grinder-612-P1028-01
$2,950.00
Stock No:#P1028
Manufacturer: Harig
Capacity: 6" x 12"
Category: Grinders
Subcategory: Surface, Reciprocating (Horizontal Spindle), N/C & CNC
Condition: Used
New Machines
Used Machines

SHIPPING

We're able to obtain brokers for Cross country and worldwide deliveries and only hire fully insured Flatbed Double Drops, Single Drops and Permitted Loads.

Make sure to get insurance, as this is not usually included. All machines come banded and strapped to a pallet unless instructed otherwise.
Crating is optional and comes at extra charge.
Loading docks or ramps are required! If you do not have one, inform the shipping company and there will more than likely be an extra charge.
* Indicates required fields

Sterling Machinery Exchange can help you with shipping worldwide. We ship daily and can get amazing shipping rates to make your purchase easier

Please let us know your information and we can find out the cost to your door!
Types of Trucking We Offer:

*TRUCKLOAD SHIPPING* The Full Truckload Advantage encompasses a comprehensive, end-to-end range of cargo transit and logistics solutions, backed by cutting-edge shipping analytic and monitoring technology.

  • Reduced Cost Per Unit
  • Shortened Transit Times
  • Fewer Damages
  • Dedicated Capacity
  • More Cargo Insurance
  • Thousands of Carriers to Choose From
  • Ail or Rubber Tire Option
  • Full Truckload
    • Van
    • Flatbed
    • Standard 48' Flatbed
    • Step Deck
    • Removable Goose Neck
    • Over-dimensional
    • Conestoga
    • Curtain Van
    • Refrigerated
    • Double-drop/Lowboy
  • Partial Truckload
    • Consolidated Truckloads
    • Volume LTL
    • Dedicated Partial Truckload
  • Specialized Services
    • Cross Dock
    • E-track/Logistical Trailers
    • Break Bulk
    • Short Term Warehousing
    • TWIC/TSA Services
    • White Glove
  • Intermodal
    • 48' and 53' Containers
    • 20', 40', and 45'
    • International Containers & High Cubes
    • Drayage (Port, Rail)
  • *LTL SHIPPING*

Our LTL shipping offers a best-in-class proprietary Transportation Management System tailored to the needs of LTL shippers. CARRIER RATE 2.0 provides an industry-leading, all-in-one solution for obtaining quotes, booking, and managing shipments.

    • Choose your carrier based on cost, transit time, and preference
    • Choose from industry leading carriers for your specific shipment
    • Schedule pickups with one click!
    • Track and manage your shipments online
  • QUOTE
    • Enter Origin & Destination Zip Codes
    • Select Package Type
    • Enter Pallet Count for Pallet Rate
    • Enter Class and Weight
    • Add Accessorials
  • *EXPEDITED SHIPPING*

We understand our transportation and logistics customers are looking for ways to save time and money. Air freight shipping means on-time delivery is a top priority. Our technology, relationships, and team of industry professionals provide an unparalleled ability to meet your most important shipping needs. Services Offerings

    • Next Flight Out (NFO’s)
    • Next Day by 1030
    • Exclusive Use Vehicles (E.U.V.’s)
    • Next Day by Noon
    • Local Pickup/Delivery
    • Next Day by 5pm
    • 2nd Day by 1030
    • 2nd Day by Noon
    • 2nd Day by 5pm
    • 3rd Day by 1030
    • 3rd Day by Noon
    • 3rd Day by 5pm
    • 3-5 Day Economy Ground
    • Trade Show Pickup/Delivery
    • Weekend Pickup/Delivery
    • Export/Import Freight
    • After Hours Pickup/Delivery
    • Project Freight/Distributions
    • Aircraft Charters
    • Ocean Services
No description exists for this manufacturer.
