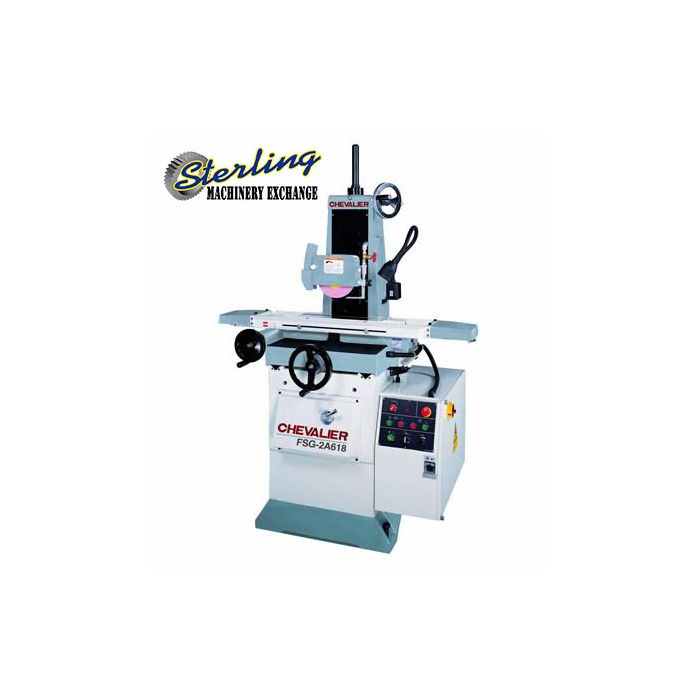

6" x 18" Brand New Chevalier Fully Automatic Precision Hydraulic Surface Grinder, Mdl. FSG-2A618, 2 Axis with Automatic Power Table, Proximity Switches, The Optimum Span of Double V Crossfeed Guideways is Designed Based on Bending Moment, All Essential Castings are Made of High Grade Meehanite Cast Iron that is Stress Relieved through Annealing to Eliminate Internal Stress, Auto Lubrication, Diamond Dresser with Diamond, One Grinding Wheel & Hub, Splash Guard & Nozzle, Balancing Arbor, Halogen Lamp, Tool Box & Tools, Operation Manual, Leveling Screws, Nuts & Pads, Exhaust Hood, Hardened & Ground Table Guideways with Steel Balls, Separate Hydraulic System, #SMFSG2A618

Stock No:
#SMFSG2A618
Manufacturer:
Chevalier
Model:
FSG-2A618
Capacity:
6" x 18"
Condition:
New
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Table Size
6" x 18"
Max. Grinding Length
18"
Max. Grinding Width
6"
Max. Distance From Table Surface to Spindle Centerline
18"
Longitudinal Movement of Table
.
Hydraulic
19-3/4"
Manual
20"
Table Speed
16- 82 FPM
Rapid Travel
38 IPM
Automatic Traverse Increment
.02 - .24"
Max. Auto Transverse Travel
6-3/4"
Max. Manual Transverse Travel
7"
Cross Transverse Travel
.
Per Revolution
0.100"
Per Graduation
0.0005"
Wheelhead Vertical Infeed
.
Per Graduation
0.0001"
Per Revolution
0.05"
Standard Grinding Speeds
60Hz @ 3,450 RPM/ 50Hz @ 2,850 RPM
Hydraulic Pump Motor
1 H.P.
Grinding Wheel Size (Dia. x Width x Bore)
8" x 1/2" x 1-1/4"
Total Rated Power (H.P.)
3.3 H.P.
Voltage
230V ~ 3 Phase
Dimensions (L x W x H)
52" x 44" x 76"
WEIGHT
1,700 LBS
EQUIPPED WITH
Exhaust Hood
Auto Lubrication
Hardened & Ground Table Guideways With Steel Balls
Separate Hydraulic System
2 Axis With Automatic Power Table
Tool Box & Tools
Proximity Switches
Diamond Dresser With Diamond
One Grinding Wheel & Hub
Splash Guard & Nozzle
Balancing Arbor
Halogen Lamp
Operation Manual
Leveling Screws, Nuts & Pads
The Optimum Span Of Double V Crossfeed Guideways Is Designed Based On Bending Moment
All Essential Castings Are Made Of High Grade Meehanite Cast Iron That Is Stress Relieved Through Annealing To Eliminate Internal Stress
OPTIONAL EQUIPMENT AND TOOLING
chevalier - diamond dresser with diamond (0.5k)
Name: Chevalier - Diamond Dresser with Diamond (0.5k)
Price: Call For Price
Stock No:# B03-0601
ADD TO MACHINE QUOTE:

chevalier - parallel dressing attachment
Name: Chevalier - Parallel Dressing Attachment
Price: Call For Price
Stock No:# B13-0101
ADD TO MACHINE QUOTE:

chevalier - chevalier (6
Name: Chevalier - Chevalier (6" x 18") - Electromagnetic Chuck
Price: Call For Price
Stock No:# B09-0106
ADD TO MACHINE QUOTE:

chevalier- chuck controller (with variable holding power & auto demagnetizer)
Name: Chevalier- Chuck Controller (With Variable Holding Power & Auto Demagnetizer)
Price: Call For Price
Stock No:# B23-0106
ADD TO MACHINE QUOTE:

chevalier - kanetsu or chevalier - permanent magnetic chuck
Name: CHEVALIER - Kanetsu or Chevalier - Permanent Magnetic Chuck
Price: Call For Price
Stock No:# B09-0102
ADD TO MACHINE QUOTE:

chevalier - inclinable 4
Name: Chevalier - Inclinable 4" x 7" - Permanent Magnetic Chuck
Price: Call For Price
Stock No:# B09-0104
ADD TO MACHINE QUOTE:

chevalier - inclinable 6
Name: Chevalier - Inclinable 6" x 12" - Permanent Magnetic Chuck
Price: Call For Price
Stock No:# B09-0105
ADD TO MACHINE QUOTE:

chevalier - inclinable 6
Name: Chevalier - Inclinable 6" x 12" - Electromagnetic Chuck
Price: Call For Price
Stock No:# B09-0601
ADD TO MACHINE QUOTE:

chevalier - fagor digital readout system - elevating digital readout 18
Name: Chevalier - Fagor Digital Readout System - Elevating Digital Readout 18"L (Factory Install)
Price: Call For Price
Stock No:# BL45-0101-F1Y
ADD TO MACHINE QUOTE:

chevalier - fagor digital readout system - crossfeed digital readout 8
Name: Chevalier - Fagor Digital Readout System - Crossfeed Digital Readout 8"L (Factory Install)
Price: Call For Price
Stock No:# BL45-0102-F1Z
ADD TO MACHINE QUOTE:

chevalier - fagor digital readout system - crossfeed & elevating digital readout (factory install)
Name: Chevalier - Fagor Digital Readout System - Crossfeed & Elevating Digital Readout (Factory Install)
Price: Call For Price
Stock No:# BL45-0103-F2
ADD TO MACHINE QUOTE:

chevalier - installation charge - single axis
Name: Chevalier - Installation Charge - Single Axis
Price: Call For Price
Stock No:# INSTALL1AXIS
ADD TO MACHINE QUOTE:

chevalier - installation charge - double axis
Name: Chevalier - Installation Charge - Double Axis
Price: Call For Price
Stock No:# INSTALL2AXIS
ADD TO MACHINE QUOTE:

chevalier - precision vise (2
Name: Chevalier - Precision Vise (2" x 3")
Price: Call For Price
Stock No:# B11-0101
ADD TO MACHINE QUOTE:

chevalier - precision vise (2-1/2
Name: Chevalier - Precision Vise (2-1/2" x 4")
Price: Call For Price
Stock No:# B11-0102
ADD TO MACHINE QUOTE:

chevalier - precision vise (3
Name: Chevalier - Precision Vise (3" x 4")
Price: Call For Price
Stock No:# B11-0103
ADD TO MACHINE QUOTE:

chevalier - precision vise (3-1/2
Name: Chevalier - Precision Vise (3-1/2" x 5")
Price: Call For Price
Stock No:# B11-0104
ADD TO MACHINE QUOTE:

chevalier - precision vise (4
Name: Chevalier - Precision Vise (4" x 5")
Price: Call For Price
Stock No:# B11-0105
ADD TO MACHINE QUOTE:

chevalier - diamond dresser with diamond (0.1k)
Name: Chevalier - Diamond Dresser with Diamond (0.1k)
Price: Call For Price
Stock No:# B03-0101
ADD TO MACHINE QUOTE:

chevalier - wheel balancing stand with leveling bubble
Name: Chevalier - Wheel Balancing Stand with Leveling Bubble
Price: Call For Price
Stock No:# B15-0102
ADD TO MACHINE QUOTE:

chevalier - balancing stand (roller type)
Name: Chevalier - Balancing Stand (Roller Type)
Price: Call For Price
Stock No:# B15-0601
ADD TO MACHINE QUOTE:

chevalier - combination coolant & dust collector (9 gal)
Name: Chevalier - Combination Coolant & Dust Collector (9 gal)
Price: Call For Price
Stock No:# B17-0101D
ADD TO MACHINE QUOTE:

chevalier - heavy duty dust collector
Name: Chevalier - Heavy Duty Dust Collector
Price: Call For Price
Stock No:# B17-0102D
ADD TO MACHINE QUOTE:

chevalier - coolant equipment with magnetic separator (13-1/4 gal)
Name: Chevalier - Coolant Equipment with Magnetic Separator (13-1/4 gal)
Price: Call For Price
Stock No:# B17-0105D
ADD TO MACHINE QUOTE:

chevalier - combination coolant & dust collector with magnetic separator (9 gal)
Name: Chevalier - Combination Coolant & Dust Collector with Magnetic Separator (9 gal)
Price: Call For Price
Stock No:# B17-0106H
ADD TO MACHINE QUOTE:

chevalier - coolant system with paper filter (22-1/2 gal)
Name: Chevalier - Coolant System with Paper Filter (22-1/2 gal)
Price: Call For Price
Stock No:# B17-0107E
ADD TO MACHINE QUOTE:

chevalier - coolant system (11.1 gal)
Name: Chevalier - Coolant System (11.1 gal)
Price: Call For Price
Stock No:# B17-0110D
ADD TO MACHINE QUOTE:

chevalier - coolant system (24 gal)
Name: Chevalier - Coolant System (24 gal)
Price: Call For Price
Stock No:# B17-0901D
ADD TO MACHINE QUOTE:

chevalier - splash guard & nozzle
Name: Chevalier - Splash Guard & Nozzle
Price: Call For Price
Stock No:# B19-0102
ADD TO MACHINE QUOTE:

chevalier - exhaust hood
Name: Chevalier - Exhaust Hood
Price: Call For Price
Stock No:# 0203-00019001
ADD TO MACHINE QUOTE:

chevalier - variable spindle speeds by a/c frequency control, 230v (factory installed)
Name: Chevalier - Variable Spindle Speeds by A/C Frequency Control, 230V (Factory Installed)
Price: Call For Price
Stock No:# BL48-0101
ADD TO MACHINE QUOTE:

chevalier - variable spindle speeds by a/c frequency control, 460v (factory installed)
Name: Chevalier - Variable Spindle Speeds by A/C Frequency Control, 460V (Factory Installed)
Price: Call For Price
Stock No:# BL48-0102
ADD TO MACHINE QUOTE:

chevalier - led machine lamp
Name: Chevalier - LED Machine Lamp
Price: Call For Price
Stock No:# B01-0104
ADD TO MACHINE QUOTE:

chevalier - wheel hub (flange & weights)
Name: Chevalier - Wheel Hub (Flange & Weights)
Price: Call For Price
Stock No:# B05-0101
ADD TO MACHINE QUOTE:

chevalier - punch former
Name: Chevalier - Punch Former
Price: Call For Price
Stock No:# B07-01011
ADD TO MACHINE QUOTE:

chevalier - universal wheel guard for side forming
Name: Chevalier - Universal Wheel Guard for Side Forming
Price: Call For Price
Stock No:# B41-0106
ADD TO MACHINE QUOTE:

* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
