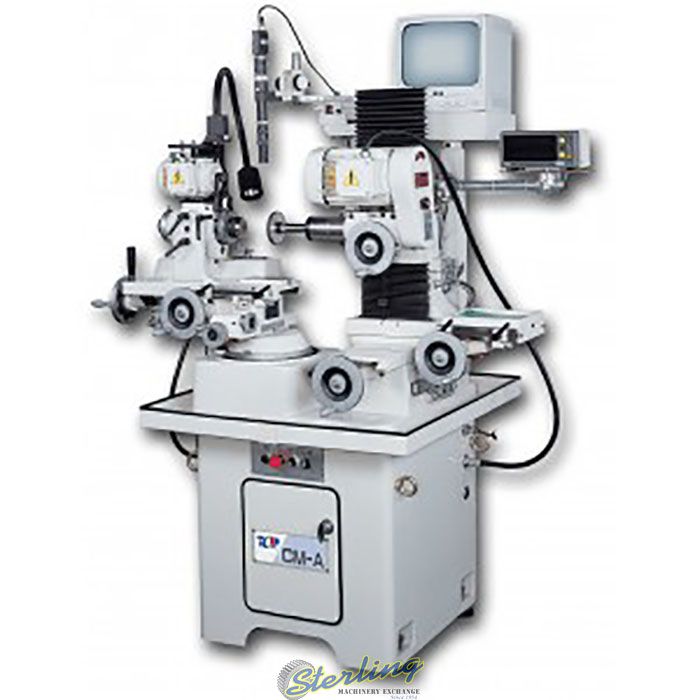

12" x 6" Brand New Atrump Monaset Manual Tool & Cutter Grinder, Mdl. CM-A , Equipped With An Digital Readout On The X, Y, & A Axis, and a High Precision Camera Device for precise Grinding, Sharpening, & Reconditioning Complex Tools & Cutters., Precise Ballscrew Using Grinding Wheel Side X & Y Axis, Precise Grinding Acme Lead Screw Using the Other Entire Axis, Swiveling, Turntable & Moveable Offset Slide, Wheelhead Toothrest Assembly with Extension Bar, Super Precision Match Sets Class 7 Bearing at Spindle, Grinding Wheel Guards With Extension Bar, Front Stock Support, Straight Cylindrical Collects: (A) Metric Sizes or (B) Inch Sizes, Set of 3 Taper Collects, Set of 5 Grinding Wheel Flanges, 4 Standard & 1 Extension Flange, Diamond Holder Bracket, Wrench for Workhead, Toothrest Entering Gauge, Adjustable Tailstock Support Unit, Spanner for Grinding Wheel, Leveling Blocks, Standard Arbor, Screwdriver, Set of Wrenches, Double End Spanner, Set of 4 Index Plates for Spiral Lead Mechanism, Tool Box, Oil Bottle, Grinding Wheels (1 Each of Straight, Flaring Cup & Dish Shape), Additional Diamond Truing Tool with Diamond Nib, Spring Loaded Index Pawl for Workhead, 1/2" Wheel Flange & Spanner, Grinding Attachment for Large Face Milling Cutter, 4" Six-Jaw Chuck for Workhead, Wheel Flange with 2 Collets for Internal Grinding, Wet Grinding Attachment with Water Proof Equipment, Casting Base to Reduce Vibration, Quality Certified by ISO 9002 & CE Standard, #SMCMA

Atrump
Stock No:
#SMCMA
Manufacturer:
Atrump
Model:
CM-A
Capacity:
12" x 6"
Condition:
New
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Capacity
12" x 6"
Work Head
Swing Over Main Slide (Diameter)
12"
Collet Work Diameter
1.25" (max)
Collet Work Diameter
0.19" (min)
Spiral Angle
60 Degrees (max)
Distance Between Speak of Spindle
3.93" (max)
Distance Between Center of Tailstock
5.98" (max)
Grinding Wheel Head
Grinding Diameter
3.93" (max)
Range
Slide Travel
5.11"
Offset Slide Travel
3.93"
Front Of Center
1.96"
Rear of Center
1.96"
Angle Adjustment of Workhead
Rotation of Horizontal Plane
+/- 105° (210°)
Rotational of Vertical Plane
+/- 40°
Slide Travel
4.33"
Vertical Slide Travel
9.44" (total)
Above Center
4.33"
Below Center
5.11"
Cross Slide Travel
6.7"
Front Of Center
2.75"
Rear of Center
3.93"
Spindle Speed
Wheelhead (3 Speeds)
4000/6000/8000 rpm
Workhead, AC
1/4 H.P.
Grinding Wheelhead, AC
1/2 H.P.
Warranty
One Year Limited Warranty
Power Requirements
6.5 KVA 3 Phase 208V to 230V (Max)
Dimensions (L x W x H)
82" x 45" x 80"
WEIGHT
2270 lbs
EQUIPPED WITH
Equipped With An Digital Readout On The X, Y, & A Axis, And A High Precision Camera Device For Precise Grinding, Sharpening, & Reconditioning Complex Tools & Cutters.
Precise Ballscrew Using Grinding Wheel Side X & Y Axis
Tool Box
Precise Grinding Acme Lead Screw Using The Other Entire Axis
Swiveling, Turntable & Moveable Offset Slide
Wheelhead Toothrest Assembly With Extension Bar
Super Precision Match Sets Class 7 Bearing At Spindle
Grinding Wheel Guards With Extension Bar
Front Stock Support
Straight Cylindrical Collects: (A) Metric Sizes Or (B) Inch Sizes
Set Of Wrenches
Set Of 3 Taper Collects
Set Of 5 Grinding Wheel Flanges, 4 Standard & 1 Extension Flange
Diamond Holder Bracket
Wrench For Workhead
Toothrest Entering Gauge
Adjustable Tailstock Support Unit
Spanner For Grinding Wheel
Leveling Blocks
Standard Arbor
Screwdriver
Double End Spanner
Set Of 4 Index Plates For Spiral Lead Mechanism
Oil Bottle
Grinding Wheels (1 Each Of Straight, Flaring Cup & Dish Shape)
Additional Diamond Truing Tool With Diamond Nib
Spring Loaded Index Pawl For Workhead
1/2" Wheel Flange & Spanner
Grinding Attachment For Large Face Milling Cutter
4" Six-Jaw Chuck For Workhead
Wheel Flange With 2 Collets For Internal Grinding
Wet Grinding Attachment With Water Proof Equipment
Casting Base To Reduce Vibration
Quality Certified By ISO 9002 & CE Standard
OPTIONAL EQUIPMENT AND TOOLING
atrump - large cutter radius grinding attachment
Name: Atrump - Large Cutter Radius Grinding Attachment
Price: Call For Price
Stock No:# CM2-OPT01
ADD TO MACHINE QUOTE:

atrump - 4
Name: Atrump - 4" Universal 6-Jaw Chuck for Workhead
Price: Call For Price
Stock No:# CM2-OPT02
ADD TO MACHINE QUOTE:

atrump - frequency inverter for grinding wheel spindle - 1hp
Name: Atrump - Frequency Inverter for Grinding Wheel Spindle - 1HP
Price: Call For Price
Stock No:# FREQINVERTER-1HP
ADD TO MACHINE QUOTE:

atrump - frequency inverter for grinding wheel spindle - 2hp
Name: Atrump - Frequency Inverter for Grinding Wheel Spindle - 2HP
Price: Call For Price
Stock No:# FREQINVERTER-2HP
ADD TO MACHINE QUOTE:

atrump - upgrading grinding wheel/spindle motor to 2hp
Name: Atrump - Upgrading Grinding Wheel/Spindle Motor to 2HP
Price: Call For Price
Stock No:# UPGRADEGWHEEL/SPINDLE-2HP
ADD TO MACHINE QUOTE:

atrump - dust collector (1hp)
Name: Atrump - Dust Collector (1HP)
Price: Call For Price
Stock No:# DUSTCOLL-1HP
ADD TO MACHINE QUOTE:

* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
