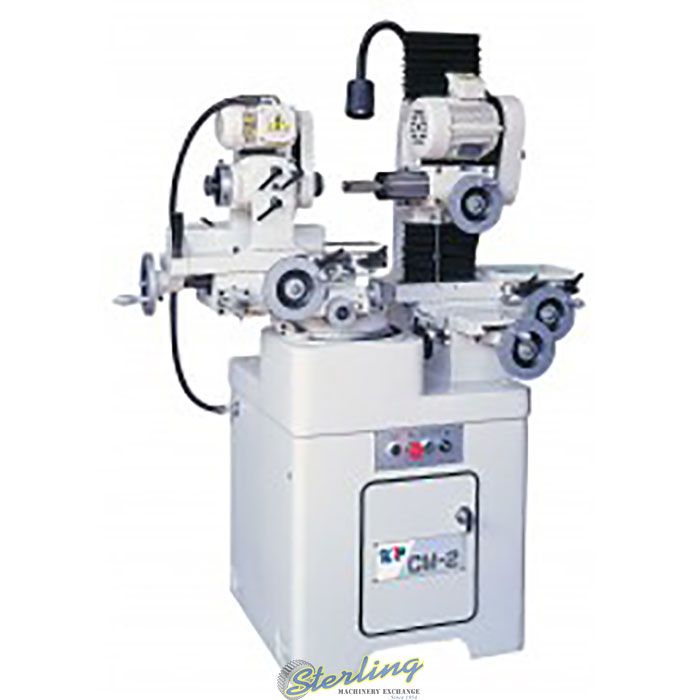

12" x 6" atrump CM-2, New #SMCM2

Atrump
Machine Type:
GRINDERS
Manufacturer:
Atrump
Model:
CM-2
Capacity:
12" x 6"
Condition:
New
Stock No:
#SMCM2
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Capacity 12" x 6"
Workhead Capacity:
Swing Over Main Slide (Diameter) 12" (max)
Collet Work Diameter 1.25" (max)
Collet Work Diameter 0.19" (min)
Spiral Angle 60 Degrees (max)
Distance Between Speak of Spindle 3.93" (max)
Distance Between Center of Tailstock 5.98" (max)
Grinding Wheel Head
Grinding Diameter 3.93" (max)
Range
Work Head
Slide Travel 5.11"
Offset Slide Travel 3.93"
Front Of Center 1.96"
Rear of Center 1.96"
Angle Adjustment of Workhead
Rotation of Horizontal Plane +/- 105° (210°)
Rotational of Vertical Plane +/- 40°
Grinding Wheelhead
Slide Travel 4.33"
Vertical Slide Travel 9.44" (total)
Above Center 4.33"
Below Center 5.11"
Cross Slide Travel 6.7"
Front Of Center 2.75"
Rear of Center 3.93"
Spindle Speed
Workhead Speed 360 RPM
Wheelhead (3 Speeds) 4000/6000/8000 rpm
Warranty One Year Limited Warranty
Motor
Workhead, AC 1/4 H.P.
Grinding Wheelhead, AC
Power Requirements 6.5 KVA 3 Phase 208V to 230V (Max)
Dimensions (L x W x H) 65" x 45" x 60"
WEIGHT 1895 lbs
Features
Swiveling, Turntable & Moveable Offset Slide
Tool Box
Precise Ballscrew Using Grinding Wheel Side X & Y Axis
Precise Grinding Acme Lead Screw Using The Other Entire Axis
Super Precision Match Sets Class 7 Bearing At Spindle
Wheelhead Toothrest Assembly With Extension Bar
Grinding Wheel Guards With Extension Bar
Front Stock Support
Diamond Holder Bracket
Wrench For Workhead
Set Of Wrenches
Toothrest Entering Gauge
Adjustable Tailstock Support Unit
Spanner For Grinding Wheel
Leveling Blocks
Standard Arbor
Screwdriver
Double End Spanner
Set Of 4 Index Plates For Spiral Lead Mechanism
Oil Bottle
Grinding Wheels (1 Each Of Straight, Flaring Cup & Dish Shape)
Additional Diamond Truing Tool With Diamond Nib
1/2" Wheel Flange & Spanner
Casting Base To Reduce Vibration
Quality Certified By ISO 9002 & CE Standard
OPTIONAL EQUIPMENT AND TOOLING
atrump - large cutter radius grinding attachment
Name: Atrump - Large Cutter Radius Grinding Attachment
Price: Call For Price
Stock No:# CM2-OPT01
ADD TO MACHINE QUOTE:

atrump - 4
Name: Atrump - 4" Universal 6-Jaw Chuck for Workhead
Price: Call For Price
Stock No:# CM2-OPT02
ADD TO MACHINE QUOTE:

atrump - dust collector (1hp)
Name: Atrump - Dust Collector (1HP)
Price: Call For Price
Stock No:# DUSTCOLL-1HP
ADD TO MACHINE QUOTE:

atrump - 17 pc collet set & spring loaded index pawl
Name: Atrump - 17 pc Collet Set & Spring Loaded Index Pawl
Price: Call For Price
Stock No:# 17PCCOLLSET
ADD TO MACHINE QUOTE:

* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
