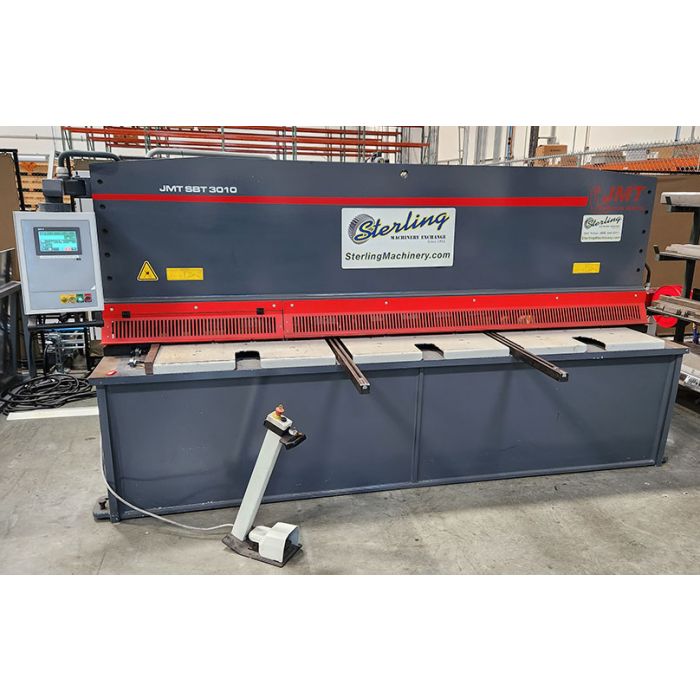

1/4" x 10' Used JMT Hydraulic Plate Metal Cutting Shear (Great Condition), Mdl. JMT SBT 3010, Foot Pedal, Ball Transfers In Table, Front Material Supports, Squaring Arm, Programmable Back Gauge Control- Can Make Multiple Cuts From One Sheet., Stroke Length Adjustment, Quick Blade Clearance Adjustment, Year(2016) #P1055

Stock No:
#P1055
Manufacturer:
JMT
Model:
JMT SBT 3010
Capacity:
1/4" x 10'
Serial Number:
608716286
Condition:
Used
Print a Quick Quote!
View Gallery
EnglishVideo
3/8" x 12' Used JMT Hydraulic plate shear, Mdl. JMT SBT 3010, Foot Pedal, #P1055 3/8" x 12' Used  JMT Hydraulic plate shear, Mdl. JMT SBT 3010, Foot Pedal, #P1055
DETAILED SPECIFICATION
Cutting Length
10'
Max. Thickness - Mild Steel
1/4"
Max. Thickness - Stainless Steel
6 Mm
Gap In Side Frame
50 Mm
Strokes
13 1/min
Cutting angle
1.5 °
Back Gauge Speed
200 Mm/s
Backgauge Speed
200 Mm/s
Motor Power
22 KW
Horsepower
29.5
Voltage
220/440V ~ 3 Phase
EQUIPPED WITH
Foot Pedal
Ball Transfers In Table
Squaring Arm
Front Material Supports
Programmable Back Gauge Control- Can Make Multiple Cuts From One Sheet.
Stroke Length Adjustment
Quick Blade Clearance Adjustment
* Temporary specifications subject to verification.
