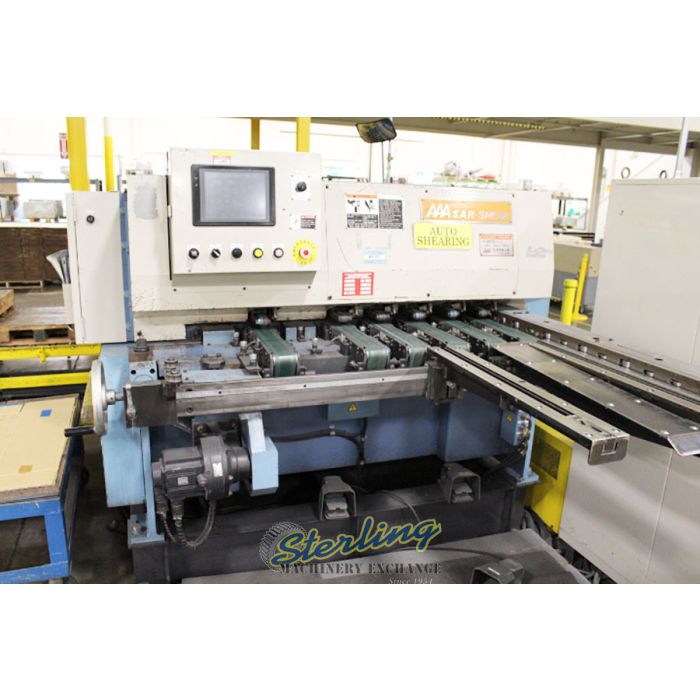

1/8" x 49" aizawa Automatic Shear ARS-312, Used #A4791 SPECIAL PRICE! ASK SALESPERSON ABOUT MACHINE AND WARRANTY
Machine Type:
SHEARS
Manufacturer:
Aizawa
Model:
ARS-312
Capacity:
10 Ga x 4'
Serial#:
30518
Condition:
Used
Stock No:
#A4791
EnglishVideo
DETAILED SPECIFICATION
| Maximum Thickness | 0.4 - 3.2 mm |
| Width | 250 - 1250 mm |
| Length | 400 - 2000 mm |
| Smallest Size | 250 x 400 mm |
| Largest Size | 1250 x 2000 mm |
| Cutting Length | 28 - 1000 mm |
| Edge Cut | 5 - 60 mm |
| Residual Edge | Maximum 60 mm |
| Scrap Size | 180 mm |
| Stroke Per Minute | 150 S.P.M. |
| Rake Angle | 1 Degree, 15' |
| Blade | Four Edge Blade (90 Degrees) |
| Sheet Holder | Mono-Block Beam, Hold Down by Spring |
| Reduction Gear | Single Stage Worm Gear Reduction |
| Clutch & Brake | Combination of Air Released Single Disk Clutch & Spring Closed Brake |
| Blade Clearance | One Touch Clearance Adjustment Device |
| Setting Range | 0 - 1 mm (1 Revolution of Dial) |
| Minimum Pitch | 0.05 mm |
| Air Supply | 0.6 Mpa |
| Air Comsumption | 460 Liter/Min |
| Operation Style | Front Centralized Control Panel, Push Buttons and Foot Switches |
| Light at Blade | Halogen Lamp, 55 W x 2 Bulbs |
| Main Motor | 5.5 KW, 6 P |
| Ejector (FInal Product Push & Cut, Ejection of Scrap) | 5 - 60 mm |
| Back Gauge Control | AC Servo, Semi-Closed Loop Control |
| Effective Length | 1.1" - 39.3" |
| Speed | 4.7 m/min |
| Backgauge Motor | .75 kw, AC Servo |
| Stopper | 6 Stopper of Fixed Position, Equipped with Touch Sensor |
| Auto-Cut | Signal by 2 Touch Sensors of Selected 2 Stoppers |
| NC Feeder Control | Sectional Magnet Conveyor and Pinch Belt, 6 Sets, 70 mm Width |
| Feed Rate | 52.6 m/min |
| Motor | 1.0 KW, AC Servo |
| Feed Length | Same Data as of BG Present Position |
| Pinch Belt | 6 Sets, Operated by Air Cylinder |
| Side Gauge Effective Length | 90 -1,450 mm (With Magnet Rollers and Free Bearing Balls) |
| Conveyor Control | Inverter |
| Run-Out | 0 - 75 m/min Forward Running |
| Line Height | 1130 mm |
| Up/Down | Perfect Synchronized Motion with Ram |
| Motor | 0.75 KW |
| Pinch Roll | Urethane Sectional Roll Hold Down by Spring |
| Dumper | Maximum Opening 60 mm |
Features
New Replacement Cost Of $468,000.00
Auto Cycle Mode
High Speed NC Backgauge
Less Scratch Piling
Magnetic Feeder
Motorized Roller On Material Lifter
Single Material Lifter
Motorized Cross Out Roller For Piling Lifter
Scrap Box
Right Angle Positioner
Ejector
Run-Out Conveyor
Stamping
* Temporary specifications subject to verification.
All quotations subject to prior sale.
New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
