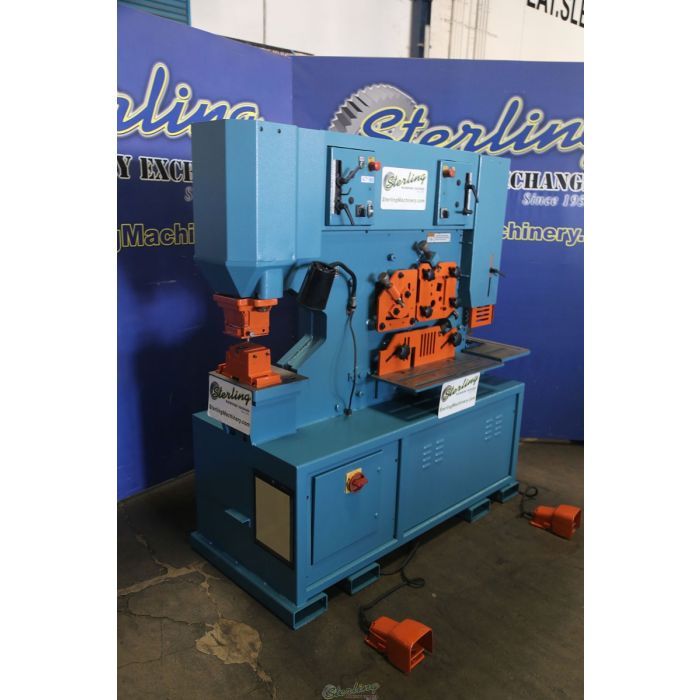

85 Ton Used Scotchman Hydraulic Ironworker Heavy Duty- (Made In The USA), Mdl. DO8514-20M, Punches and Dies Included, # 40 And # 45 Punch Nuts With Wrench & Stripper, #A7198

Stock No:
85 Ton
Serial Number:
Print a Quick Quote!
View Gallery
Punching Capacity
85 Ton
Special Tooling
4" Max. Dia.
Throat Depth
Flat Bar Shear
20" Length 1" X 16" 3/4" X 20"
Angle Shear 90 Degrees
6" x 6" x 1/2"
45 Degrees With Bar Shear
4" x 4" x 1/2"
Brake 12"
85 Ton
Brake 24"
85 Ton
Open End Brake
6" x 5/8"
Pipe Notcher Schedule 40
3/4", 1" 1-1/4", 1-1/2", 2"
90 Degrees V-Notcher
3" x 3" x 1/2"
Punch Attachment For Notcher Station
50 - Ton 1 - 1/4" In 1/2"
Channel Shear
2" To 6"
Round Rod
1/2", 3/4", 1", 1-1/2"
Square Rod ( Max.)
Square Tube Shear
1/2" To 2", 12 Gauge
Picket Tool
1/2", 3/4", 1", 16 Gauge
Offset Die Holder
Max. 40 Ton
Strokes Per Minute In Heavy Material
3/4" Stroke [Punch Station]
Strokes Per Minute In Light Material
37 SPM
2,600 PSI
W - 26"
Motor Standard
10 H.P. 3 PH
Motor Optional
10 HP 1PH
Shear Included
1/4" x 24"
W-30" X L-70" X H-77"
5,400 LBS
Dual Foot Pedal
# 40 And # 45 Punch Nuts With Wrench & Stripper
Punches and Dies Included

Additional Information

Comparing Scotchman DO8514-20M Dual Operation Hydraulic Ironworker and Piranha PII-88 Hydraulic Dual Operation Ironworker

When deciding between the Scotchman DO8514-20M dual operation hydraulic ironworker and the Piranha PII-88 dual operation hydraulic ironworker, it is important to assess the features and benefits of each.

Speed & Productivity

The Scotchman DO8514-20M offers faster cutting speeds than the Piranha PII-88, allowing it to finish jobs quickly and efficiently while reducing costs. Additionally, its quick release shear blade clamping system makes blade changes easy and fast, decreasing downtime between jobs.  Scotchman is American Made making technical support much easier to speak with local companies that know how these ironworkers are best maintained.

Accuracy & Control

The Scotchman ironworker provides superior accuracy and control when performing tasks such as curved or beveled cuts, contour punching and forming operations; making it ideal for tasks that require precise cuts or intricate shapes.

Durability & Longevity

The Scotchman ironworkers frames are made from heavy duty steel plates that are more durable than those used on most Piranha models; ensuring they will perform consistently under high stress applications while maintaining their shape over extended periods of use. Its components feature tough alloy steel gears which are resistant to wear and tear; improving longevity even further.

In conclusion, when choosing between a Scotchman DO8514-20M Dual Operation Hydraulic Ironworker or a Piranha PII-88 Hydraulic Dual Operation Ironworker, the Scotchman model offers a superior performance advantage due to its faster cutting speeds, superior accuracy and control, greater durability, and improved longevity. Therefore, if you are looking for an efficient and reliable machine with improved productivity rates then we would recommend the Scotchman DO8514-20M.

Parts and Service

Being that Scotchman is American Made in South Dakota, parts are easily accessable as well as customer punches and dies to create the best tooling you can get for your Hydrualic ironworker.


Standard Features of a used Scotchman 8414-20M

  • Dual Operator, 5 Stations
  • Dual operator allows for two operators to work at the same time at full capacity
  • 85 Ton punch station
  • Keyed punch ram for safety
  • Punch nut with wrench & stripper
  • Adjustable swing-away stripper
  • Punch jog control
  • Two electric remote foot pedals
  • Tandem Hydraulic Pump
  • Two valves
  • Slug-less angle shear
  • Rectangle notcher: can be converted to a V-notcher, 50 ton punch station, or open end brake
  • Flat bar shear
  • Shear table with miter fence
  • Rod shear
  • Slug receptacles
  • Electrical box supplied with emergency palm button and lock-out tag-out accommodations
  • Made in USA
* Temporary specifications subject to verification.
