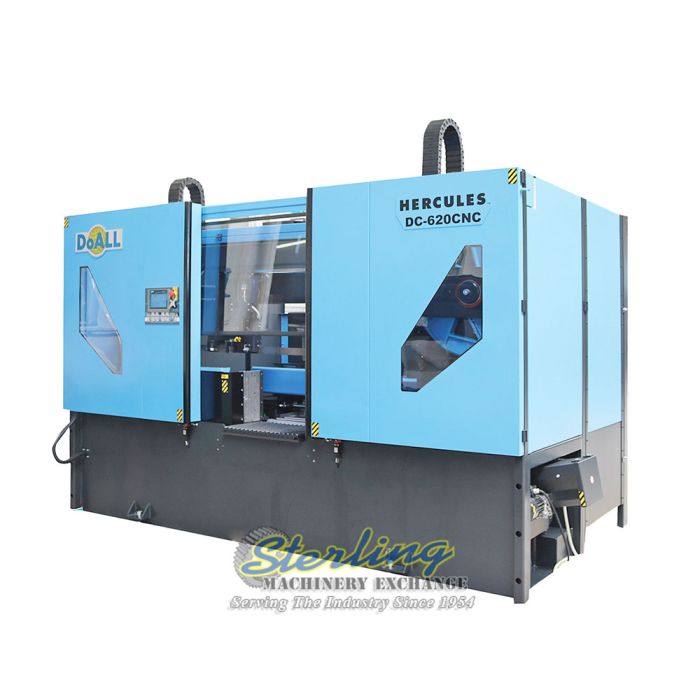

22" x 24" doall DC-620 CNC HERCULES 2, New #SMDC620CNC
Machine Type:
SAWS
Manufacturer:
DoAll
Model:
DC-620 CNC HERCULES 2
Capacity:
22" x 24"
Condition:
New
Stock No:
#SMDC620CNC
DETAILED SPECIFICATION
| Cutting Capacity For Tube | Round: 21.5", Rectagle: 24.5" x 21.5" |
| Cutting Capacity For Solid | Round: 21.5" |
| Maximum Nesting Capacity | 21.5" x 13.75" |
| Minimum Nesting Capacity | 3" |
| Bandsaw Blade Dimensions | Width: 2 x 0.063" , Length: 302-1/4" |
| Band Speed | 50-500 FPM |
| Auto Index Single Stroke Min - Max. | 0.12"-29.5" |
| Auto Index Multiple Stroke Max. | 394" |
| Minimum Butt End | 1.4" |
| Band Drive Motor | 20 HP |
| Material Pass Line Height | 31-1/2" |
| Machine Voltage | 460 VAC ~ 3P |
| Dimensions (L x W x H) | 157" x 91" x 115" |
| WEIGHT | 17,500 LBS |
Features
Flood Coolant
Siemens Control With Touch Screen Display
Smart Programming To Auto Select Cutting Param. Based On Material Size, Type
Auto. Material Feed Situated Close To Saw Blade
Auto. Feed Control W/ Programmable Feed Rates
Worm Chip Conveyor For Long Chips Incl. Chip Pan
Tool Kit
Variable Vise Pressure Control - Set Of 2
Dual Acting Index Vise Jaws For Crooked Stock
Hydraulic Band Tension
Automatic Feed Of Material Into Cutting Zone
Retractable Stationary Machine Vise Jaw
Automatic Retaraction Of Material In Cycle For Protection Of Carbide Blade.
Hydraulic Blade Clamping In Saw Guides.
Feeder And Bow Movements Using Linear-leading Ball Screw & Servo Motor
Complimentary DoAll Cutting Fluids Package
Dynamic Adjustments Of Feed Rate To Ensure Squareness
Power-driven Band Brush
Work Light
Automatic Guide Arm Setting
Programmable Work Heights
Operation & Parts Manuals On CD Or USB Data Stick
One Complimentary DoALL Bi-metal Saw Blade
