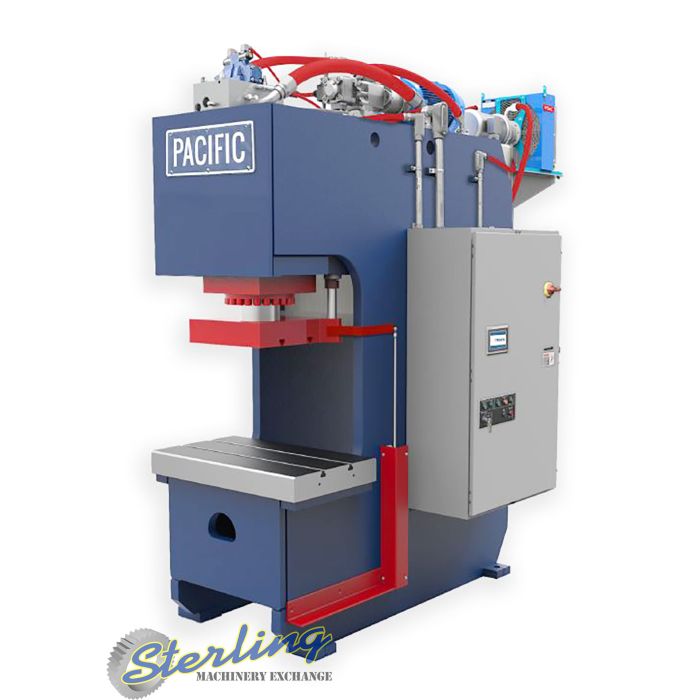

100 Ton x 18" Brand New Pacific Press Eco-Former Series Heavy Duty C-Frame Press, Mdl. Eco-Former 100, Forming, Stamping, Drawing & Punching Press, Heavy Duty Welded Frame, Hydraulic System with Oil Cooler, Digital Stroke Control HMI with 7" LED Screen, On-Site Assembly & Start Up, High Quality Commercial Hydraulic Valving & Cylinders, Hydraulic System Air Cooler, Rapid Advance & Inch Mode, Small Footprint & can be Flush Mounted, HMI System can be Programmed with Customizable Perimeters such as Open Height, Rapid Advance, Closed Height, Fast Return, Tonnage & Dwell Time, Pacific can Test & Verify Customer's Process in their facility for Proof of Operation Prior to Shipment, ENGINEERED AND BUILT IN THE USA!, #SMECOFORMER100

Stock No:
#SMECOFORMER100
Manufacturer:
Pacific Press
Model:
ECO-FORMER 100
Capacity:
100 Tons x 18"
Condition:
New
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Capacity
100 Ton
Punching Capacity
50 Ton
Stroke
18"
Closed Height
5"
Throat Depth
10"
Tool Holder
15" x 15"
Bed
35" x 18"
Distance Between Housings
23"
Rapid Advance
332 IPM
Normal Press
38 IPM
Normal Return
341 IPM
Horsepower
10 HP
Dimensions
80" x 40" x 120"
WEIGHT
21,000 Lbs
EQUIPPED WITH
Forming, Stamping, Drawing & Punching Press
Heavy Duty Welded Frame
Hydraulic System With Oil Cooler
Digital Stroke Control HMI With 7" LED Screen
On-Site Assembly & Start Up
High Quality Commercial Hydraulic Valving & Cylinders
Hydraulic System Air Cooler
Rapid Advance & Inch Mode
Small Footprint & Can Be Flush Mounted
HMI System Can Be Programmed With Customizable Perimeters Such As Open Height, Rapid Advance, Closed Height, Fast Return, Tonnage & Dwell Time
ENGINEERED AND BUILT IN THE USA!
* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
