18" X 80" Brand New Jet Precision Engine Large Spindle Bore Geared Head Lathe (ZX Series), Mdl. GH-1880ZX, MFG Number JT9-321486, 3-1/8" Spindle Bore is Supported by Two Tapered & One Ball Bearing, Chrome Molybdenum Headstock Gears are Hardened, Ground & Shaved, Universal Gearbox Allows Inch, Metric, Diametrical & Module Pitch Threads. No Change Gears Required, Carriage Features One-Shot Lubrication & Turcite-B on Bed Sliding Surfaces, T-Slotted Compound Slide with Four-Way Tool Post, One Piece Cast Iron Base, High Quality ANSI Class 50 Wear Resistant Cast Iron Bed Ways, Removable Gap, Five Position Automatic Carriage Stop, Meehanite Casting, Siemens Electrics, 10" 3-Jaw Scroll Chuck with Top Reversing Jaws, 12" Face Plate, 5 Piece Quick Change Tool Post Set, Follow Rest, Large Capacity Steady Rest with Ball Bearing Tips, Fully Integrated Coolant System, Full Length Splash Guard & Coolant Return, Large Easy to Use Foot Brake, Articulating LED Work Lamp, Electronic Chuck Key Holder, Fitted Top Mats to Hold Tooling, Centrally Located Controls with Jog Button, Threading Dial, Mounting Pads & Levelers, Live Center, Tolerance Test Certificate Included, Tool Box & Tools, E-Stop on Carriage for Added Safety, Spindle Nose 3-1/8", #SMGH1880ZX

Stock No:
#SMGH1880ZX
MFG Number:
JT9-321486
Manufacturer:
Jet
Model:
GH-1880ZX
Capacity:
18" x 80"
Serial Number:
55064-10
Condition:
New

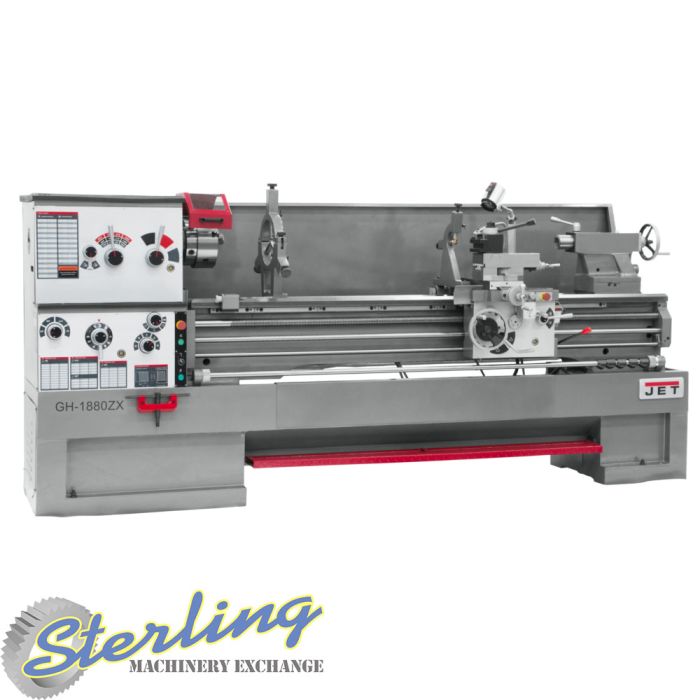

Brand New Jet Precision Engine Large Spindle Bore Geared Head Lathe (ZX Series)
Print a Quick Quote!
View Gallery
EnglishVideo
1/4��10�雨田用机械动力剪了升级控制,MDL M-3060,正面操作电源后挡瓦特/英寸和公制读数,广场臂,前支腿,一润滑系统,电动脚踏板,备用谢菲联,#A3669 1/4“×10”雨田用机械动力剪了升级控制,MDL M-3060,正面操作电源后挡瓦特/英寸和公制读数,广场臂,前支腿,一润滑系统,电动脚踏板,备用谢菲联,#A3669     To Buy or sell new or used shear for sale please visit http://www.Sterlingmachinery.com   http://www.sterlingmachinery.com/shears.php   Call Today!  626-444-0311
SpanishVideo
14" Brand New MACC Manual Cold Saw (Ferrous Material), Mdl. MACC 350 EDV, Movable Head - 45 deg L/45 deg R, Reduction Unit in Oil Bath, Double Hinged Pin with Eccentric Brush, Double Quick Locking Vise, Coolant Filter, Power Driven Pump for Band Cooling, 14" Brand New MACC Manual Cold Saw (Ferrous Material), Mdl. MACC 350 EDV, Movable Head - 45 deg L/45 deg R, Reduction Unit in Oil Bath, Double Hinged Pin with Eccentric Brush, Double Quick Locking Vise, Coolant Filter, Power Driven Pump for Band Cooling, Jet Separation System to Keep Blade Oiled, Sliding Counter Vice for Longitudinal Cutting, Bar Stop, Bar Support Arm, Service Tools, Instruction Manual, #SMMACC350EDV   To Buy or sell new or used Vertical or Horizontal Bandsaws for sale please visit http://www.Sterlingmachinery.com   http://www.sterlingmachinery.com/saws.php Call Today!  626-444-0311 To Sell Your Machinery visit  http://www.sterlingmachinery.com/sell_machinery.php     Vertical Bandsaw, Horizontal Bandsaw, Sterling Machinery, Dealer, Used, New, Metal Working Machines, Machine Tools, saw, dealers, fabrication, tool, supply, suppliers, sell, sale, metalworking, buy, chip, new, used,
ChineseVideo
14 Ga. x 161" Used Cidan Mechanical Guillotine Shear With Front Part Shoot and Programmable Control, Mdl. EVO-40, Quick Blade Gap Adjustment For Accurate Cuts, Low Profile, Pneumatic Sheet Support With Return Plate (Blanks To Front Side of Shear), Sheets 14 Ga. x 161" Used Cidan Mechanical Guillotine Shear With Front Part Shoot and Programmable Control, Mdl. EVO-40, Quick Blade Gap Adjustment For Accurate Cuts, Low Profile, Pneumatic Sheet Support With Return Plate (Blanks To Front Side of Shear), Sheets Fall In Front Allowing You To Place The Shear Against The Wall- Space Saver!, Programmable Back Gauge Control- Can Make Multiple Cuts From One Sheet.,  Year (2015)  #C5115     To Buy or sell new or used shears for sale please visit https://www.Sterlingmachinery.com   https://www.sterlingmachinery.com/shears.php Call Today!  626-444-0311 To Sell Your Used Metal Cutting Shear, Mechanical Shears, Hydraulic or CNC Machinery visit  https://www.sterlingmachinery.com/sell_machinery.php   Metal Cutting Shear, Hydraulic Shear, Mechanical Shear, Buy, Sell, Trade, Dealer, Sterling Machinery, Dealer, Used, New, Metal Working Machines, Machine Tools,
DETAILED SPECIFICATION
Capacity
18" x 80"
Style Type
Engine - Large Spindle Bore
Drive Type
Geared Head
Swing Over Bed
18"
Swing Over Cross Slide
11"
Swing Through Gap
27-1/2"
Length of Gap
12"
Distance Between Centers
80"
Spindle Bore
3-1/8"
Spindle Mount
D1-8
Spindle Taper (w/Sleeve)
MT-7 (MT-5)
Number Of Spindle Speeds
12
Spindle Speed Range
25 - 1800 RPM
Number of Longitudinal & Cross Feed Rates
46/31
Range of longitudinal feeds
0.0015 - 0.0900 IPM
Range of Cross Feeds
0.0006 - 0.0360 IPM
Number of Inch Threads
61
Range of Inch Threads
1-5/8 - 72 TPI
Number of Metric Threads
24
Range of Metric Threads
0.05 - 20
Maximum Tool Size
1" x 1"
Compound Slide Travel
5-1/8"
Cross Slide Travel
9"
Carriage Travel
74-5/16"
Tailstock Spindle Travel
5"
Taper in Tailstock Spindle
MT-5
Follow Rest Capacity
1/2" to 3-1/2"
Steady Rest Capacity
3/8" - 7-3/4"
Width Of Bed
13-1/8"
Horsepower
7-1/2 HP
Prewired Voltage
230V
Voltage
230/460V ~ 3 Phase
Dimensions (L x W x H)
136" x 44" x 66"
WEIGHT
6590 lbs
EQUIPPED WITH
3-1/8" Spindle Bore Is Supported By Two Tapered & One Ball Bearing
12" Face Plate
Chrome Molybdenum Headstock Gears Are Hardened, Ground & Shaved
Meehanite Casting
Universal Gearbox Allows Inch, Metric, Diametrical & Module Pitch Threads. No Change Gears Required
Carriage Features One-Shot Lubrication & Turcite-B On Bed Sliding Surfaces
Tool Box & Tools
T-Slotted Compound Slide With Four-Way Tool Post
One Piece Cast Iron Base
High Quality ANSI Class 50 Wear Resistant Cast Iron Bed Ways
Live Center
Follow Rest
Five Position Automatic Carriage Stop
Siemens Electrics
Removable Gap
10" 3-Jaw Scroll Chuck With Top Reversing Jaws
5 Piece Quick Change Tool Post Set
Large Capacity Steady Rest With Ball Bearing Tips
Fully Integrated Coolant System
Full Length Splash Guard & Coolant Return
Large Easy To Use Foot Brake
Articulating LED Work Lamp
Electronic Chuck Key Holder
Fitted Top Mats To Hold Tooling
Centrally Located Controls With Jog Button
Threading Dial
Mounting Pads & Levelers
Tolerance Test Certificate Included
E-Stop On Carriage For Added Safety
Spindle Nose 3-1/8"
