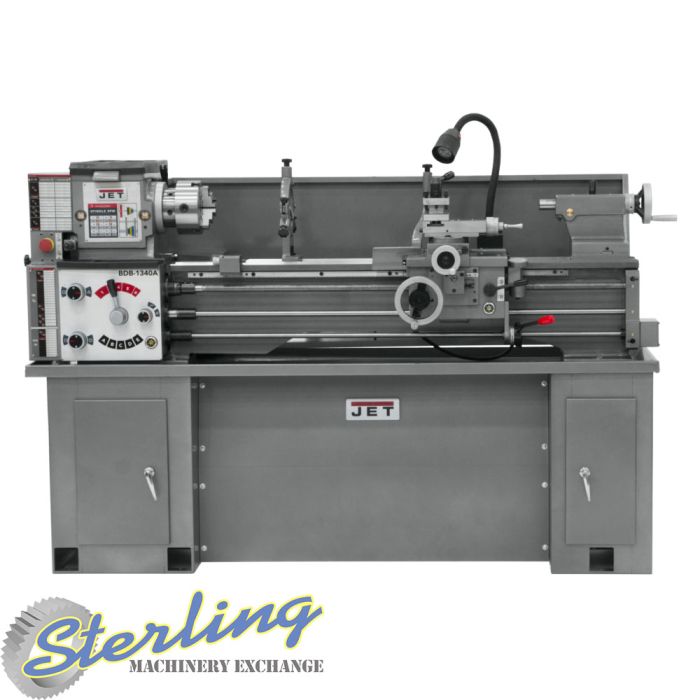

13" x 40" Brand New Jet Belt Drive Bench Lathe , Mdl. BDB-1340A, MFG Number JT9-321102AK, Enclosed Gearbox Design, Fast, Easy Speed Changes, Low Voltage Motor Controls, Helical Cut Headstock Gears, Change Gears allow Metric Threading, Spindle Supported by Precision Tapered Roller Bearings, V-Way Bed is Induction Hardened & Ground, Gap Bed Section for Large Diameter Work, Independent Leadscrew & Feed Rod, T-Slotted Compound Slide with Four-Way Tool Post, Automatic Feeding & Threading are Fully Interlocked, Feed Selectors Travel in Grooved Ways, Tailstock may be Offset for Turning Tapers & Includes Inch/Metric Graduated Quill, Oil Pan, Tolerance Test Certificate Included, Four Way Tool Post, Steady & Follow Rest, 12" Face Plate, 8" 4-Jaw Independent Chuck, 6" 3-Jaw Direct Mount Scroll Chuck with Top Reversing Jaws, Metric Change Gear, Centers & Headstock Center Sleeves, Threading Dial, Tool Box With Tools, Spindle Nose 1-3/8", Jet Red Assurance 2-Year Warranty, #SMBDB1340A

Stock No:
#SMBDB1340A
MFG Number:
JT9-321102AK
Manufacturer:
Jet
Model:
BDB-1340A
Capacity:
13" x 40"
Serial Number:
55064-10
Condition:
New
Brand New Jet Belt Drive Bench Lathe
Print a Quick Quote!
View Gallery
EnglishVideo
1/4��10�雨田用机械动力剪了升级控制,MDL M-3060,正面操作电源后挡瓦特/英寸和公制读数,广场臂,前支腿,一润滑系统,电动脚踏板,备用谢菲联,#A3669 1/4“×10”雨田用机械动力剪了升级控制,MDL M-3060,正面操作电源后挡瓦特/英寸和公制读数,广场臂,前支腿,一润滑系统,电动脚踏板,备用谢菲联,#A3669     To Buy or sell new or used shear for sale please visit http://www.Sterlingmachinery.com   http://www.sterlingmachinery.com/shears.php   Call Today!  626-444-0311
SpanishVideo
14" Brand New MACC Manual Cold Saw (Ferrous Material), Mdl. MACC 350 EDV, Movable Head - 45 deg L/45 deg R, Reduction Unit in Oil Bath, Double Hinged Pin with Eccentric Brush, Double Quick Locking Vise, Coolant Filter, Power Driven Pump for Band Cooling, 14" Brand New MACC Manual Cold Saw (Ferrous Material), Mdl. MACC 350 EDV, Movable Head - 45 deg L/45 deg R, Reduction Unit in Oil Bath, Double Hinged Pin with Eccentric Brush, Double Quick Locking Vise, Coolant Filter, Power Driven Pump for Band Cooling, Jet Separation System to Keep Blade Oiled, Sliding Counter Vice for Longitudinal Cutting, Bar Stop, Bar Support Arm, Service Tools, Instruction Manual, #SMMACC350EDV   To Buy or sell new or used Vertical or Horizontal Bandsaws for sale please visit http://www.Sterlingmachinery.com   http://www.sterlingmachinery.com/saws.php Call Today!  626-444-0311 To Sell Your Machinery visit  http://www.sterlingmachinery.com/sell_machinery.php     Vertical Bandsaw, Horizontal Bandsaw, Sterling Machinery, Dealer, Used, New, Metal Working Machines, Machine Tools, saw, dealers, fabrication, tool, supply, suppliers, sell, sale, metalworking, buy, chip, new, used,
ChineseVideo
14 Ga. x 161" Used Cidan Mechanical Guillotine Shear With Front Part Shoot and Programmable Control, Mdl. EVO-40, Quick Blade Gap Adjustment For Accurate Cuts, Low Profile, Pneumatic Sheet Support With Return Plate (Blanks To Front Side of Shear), Sheets 14 Ga. x 161" Used Cidan Mechanical Guillotine Shear With Front Part Shoot and Programmable Control, Mdl. EVO-40, Quick Blade Gap Adjustment For Accurate Cuts, Low Profile, Pneumatic Sheet Support With Return Plate (Blanks To Front Side of Shear), Sheets Fall In Front Allowing You To Place The Shear Against The Wall- Space Saver!, Programmable Back Gauge Control- Can Make Multiple Cuts From One Sheet.,  Year (2015)  #C5115     To Buy or sell new or used shears for sale please visit https://www.Sterlingmachinery.com   https://www.sterlingmachinery.com/shears.php Call Today!  626-444-0311 To Sell Your Used Metal Cutting Shear, Mechanical Shears, Hydraulic or CNC Machinery visit  https://www.sterlingmachinery.com/sell_machinery.php   Metal Cutting Shear, Hydraulic Shear, Mechanical Shear, Buy, Sell, Trade, Dealer, Sterling Machinery, Dealer, Used, New, Metal Working Machines, Machine Tools,
DETAILED SPECIFICATION
Capacity
13" x 40"
Style Type
Bench
Drive Type
Belt
Swing Over Bed
13"
Swing Over Cross Slide
7-25/32"
Swing Through Gap
18-3/4"
Length of Gap
8"
Distance Between Centers
40"
Spindle Bore
1-3/8"
Spindle Mount
D1-4
Spindle Taper (w/Sleeve)
MT-5 (MT-3)
Number Of Spindle Speeds
12
Spindle Speed Range
60 - 1240 RPM
Number of Longitudinal & Cross Feed Rates
38
Range of longitudinal feeds
0.0018 - 0.0374 IPR
Range of Cross Feeds
0.0006 - 0.013 IPR
Number of Inch Threads
38
Range of Inch Threads
3-1/2 - 80 TPI
Number of Metric Threads
23
Range of Metric Threads
0.45 - 10
Maximum Tool Size
5/8" x 5/8"
Compound Slide Travel
6-5/16"
Carriage Travel
35"
Tailstock Spindle Travel
3-3/4"
Taper in Tailstock Spindle
MT-3
Follow Rest Capacity
2-3/4"
Steady Rest Capacity
2-5/8"
Width Of Bed
7-3/4"
Horsepower
2 HP
Prewired Voltage
230V
Voltage
230V ~ 1 Phase
Dimensions (L x W x H)
71" x 32" x 45"
WEIGHT
1175 lbs
EQUIPPED WITH
Enclosed Gearbox Design
12" Face Plate
Fast, Easy Speed Changes
Low Voltage Motor Controls
Helical Cut Headstock Gears
Change Gears Allow Metric Threading
Spindle Supported By Precision Tapered Roller Bearings
Steady & Follow Rest
V-Way Bed Is Induction Hardened & Ground
Gap Bed Section For Large Diameter Work
Independent Leadscrew & Feed Rod
T-Slotted Compound Slide With Four-Way Tool Post
Jet Red Assurance 2-Year Warranty
Automatic Feeding & Threading Are Fully Interlocked
Feed Selectors Travel In Grooved Ways
Tailstock May Be Offset For Turning Tapers & Includes Inch/Metric Graduated Quill
Oil Pan
Tolerance Test Certificate Included
Four Way Tool Post
8" 4-Jaw Independent Chuck
Tool Box With Tools
6" 3-Jaw Direct Mount Scroll Chuck With Top Reversing Jaws
Metric Change Gear
Centers & Headstock Center Sleeves
Threading Dial
Spindle Nose 1-3/8"
