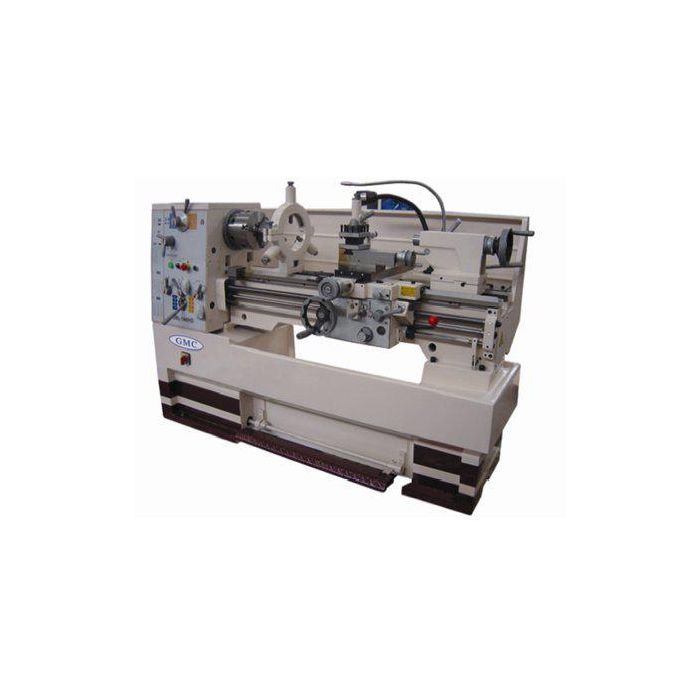

14" x 40" GMC Heavy Duty Precision Gap Bed Lathe GML-1440HD, Mdl. GML-1440HD, Free Taper turning attachment, , installed, 8 inch 3-jsw chuck with set reversible jaws, 10 inch 4-jaw chuck with set reversible jaws, 12 inch Face plate, 5 1/2 inch large steady rest with roller jaws, Oil pump on Apron for all guideways and leadscrews, 2 inch follow rest, Removeable gap, 4-way tools post, Coolant system , Halogen Work light , (2) dead centers and (1) reducing sleeve MT6/MT4, Thread chasing dial , Tool box and leveling pads, #SMGML1440HD

Stock No:
#SMGML1440HD
Manufacturer:
GMC
Model:
GML-1440HD
Capacity:
14" x 40"
Condition:
New
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Max. Swing Over Bed
14-7/8 Inch
Max. length of workpiece
40 Inch
Max. swing over cross slide
10-1/16 Inch
Max. Swing in gap
23-1/4 Inch
Width Of Bed
10-1/4 Inch
Effective length in gap to spindle
8-1/2 Inch
Effective length in gap to chuck jaws
3-1/2 Inch
Spindle Bore
2-1/16 Inch , D1-6
Taper of Spindle Center
M.T.# 6 ( With MT6/MT4 Sleeve)
Spindle Speeds
45-1,800 Rpm / 16 Steps
Longitudinal Feeds
0.0018-0.07 IPR, 42 Kinds
Cross Feeds
0.0009-0.03 IPR, 42 Kinds
Inch Threads
70-2 TPI, 45 Kinds
Metric Threads
0.2-14 Mm , 39 Kinds
Module Threads
0.3-3.6 Mm, 18 Kinds
Diametral Pitch Threads
8-40 DP , 21 Kinds
Max. travel of top slide
8-40 DP , 21 Kinds
Max. Travel of Cross Slide
8-1/2 Inch
Spindle length w/o chuck
20-1/2 Inch
Leadscrew Dia. X TPI
1-1/4 Inch Diameter X 4 TPI
Diameter of tailstock quill
2-1/16 Inch
Max. Travel of Tailstock Quill
5 Inch
Headstock Size
16 X 17 Inch
Taper of Tailstock Quill Center
M.T. # 4
Main Motor
6 HP, 220V Only, 3 Phase
Coolant Pump Motor
1/8 HP, 220V Only, 3 Phase
Net Weight, Approx
4,350 LBS
Overall dimensions, LxWxH
79 X 38 X 53 Inch
EQUIPPED WITH
8 inch 3-jsw chuck with set reversible jaws
10 inch 4-jaw chuck with set reversible jaws
12 inch Face plate
Coolant System
Halogen Work Light
5 1/2 inch large steady rest with roller jaws
Oil pump on Apron for all guideways and leadscrews
2 inch follow rest
Thread Chasing Dial
(2) dead centers and (1) reducing sleeve MT6/MT4
Free Taper turning attachment, , installed
Removeable gap
4-way tools post
Tool box and leveling pads
* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
