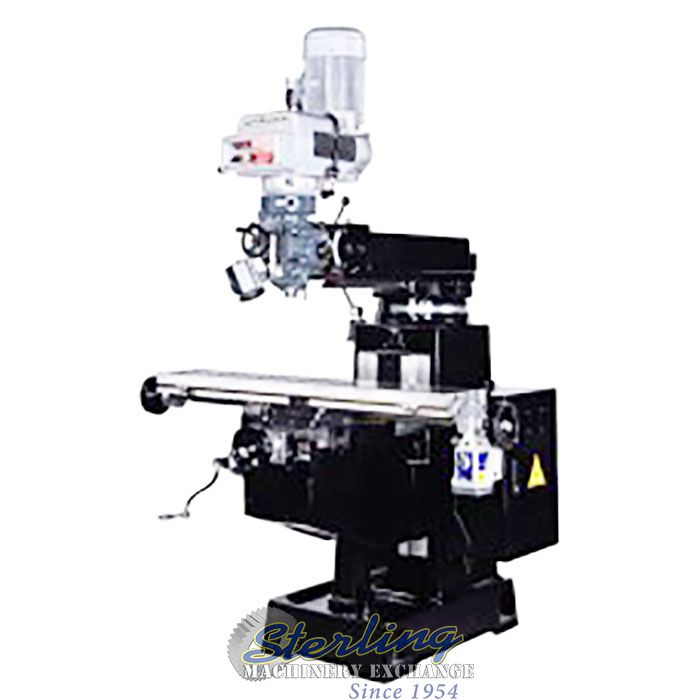

10" x 54" Brand New Atrump Vertical Electronic Variable Speed Manual Knee Mill, Mdl. K6EV, Electronical Variable Speed 5 H.P. Spindle Motor & 5 H.P. Inverter, NST40 Spindle Taper, Digital Output 4000 rpm Spindle Speed with Hi/Lo Gear, Hardened & Ground with Turcite-B Coating Guide Way, C7 Double Nut Precision ACME Lead Screws For High Accuracy And Long Lasting, FC30 Mechanite Castings Main Frame With Annealed And Stress Relieved For Long Term Reliability, Anti-Rust Chrome Quill, Standard Way Covers on all 3 Axis, Tool Box W/Tools, Precision APEC Class 7 Spindle Bearing to Ensure Spindle Runout Within 0.0002", Built-In Quartz Work Light, Fold Away Hand Wheel, Auto Lubrication System, Operation Manual, Draw Bar, Leveling Bolts & Plate, Power Knee, Built-In Coolant System, Chip Tray, Heavy Duty Square Slideway on Y & Z Axis, #SMK6EV

Atrump
Stock No:
#SMK6EV
Manufacturer:
Atrump
Model:
K6EV
Capacity:
10" x 54"
Condition:
New
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Table
10" x 54"
Logitudinal Travel
33.5"
Cross Travel
15.3"
Quill Travel
5.5"
Knee Travel
16.5"
Quill Diameter
4.13"
Load Capacity
N/A
Spindle Taper
NST40
Spindle Speed
70 to 4000 rpm with Hi/Lo Gear
Ram Travel
24"
Spindle Motor
7.5 H.P.
Horsepower
5 H.P. Inverter
Voltage
220/440V ~ 3 Phase
Dimensions (L x W x H)
114" x 71" x 100.3"
WEIGHT
4840 lbs
EQUIPPED WITH
Draw Bar
Leveling Bolts & Plate
Power Knee
Heavy Duty Square Slideway On Y & Z Axis
Chip Tray
Electronical Variable Speed 5 H.P. Spindle Motor & 5 H.P. Inverter
Built-In Coolant System
Auto Lubrication System
NST40 Spindle Taper
Hardened & Ground With Turcite-B Coating Guide Way
Digital Output 4000 Rpm Spindle Speed With Hi/Lo Gear
C7 Double Nut Precision ACME Lead Screws For High Accuracy And Long Lasting
Operation Manual
FC30 Mechanite Castings Main Frame With Annealed And Stress Relieved For Long Term Reliability
Anti-Rust Chrome Quill
Standard Way Covers On All 3 Axis
Precision APEC Class 7 Spindle Bearing To Ensure Spindle Runout Within 0.0002"
Built-In Quartz Work Light
Tool Box W/Tools
Fold Away Hand Wheel
OPTIONAL EQUIPMENT AND TOOLING
atrump - dro system x & y axis (newall)
Name: Atrump - DRO System X & Y Axis (NEWALL)
Price: Call For Price
Stock No:# C80-2-1454
ADD TO MACHINE QUOTE:

atrump - dro system x & y & quill axis (newall)
Name: Atrump - DRO System X & Y & Quill Axis (NEWALL)
Price: Call For Price
Stock No:# C80-3-1454
ADD TO MACHINE QUOTE:

atrump - installation dro 2 axis
Name: Atrump - Installation DRO 2 Axis
Price: Call For Price
Stock No:# DRO-LABOR-2 AXIS
ADD TO MACHINE QUOTE:

atrump - installation dro 3 axis
Name: Atrump - Installation DRO 3 Axis
Price: Call For Price
Stock No:# DRO-LABOR-3 AXIS
ADD TO MACHINE QUOTE:

atrump - power draw bar (maxi-torque)
Name: Atrump - Power Draw Bar (Maxi-Torque)
Price: Call For Price
Stock No:# PDB-MAX-0
ADD TO MACHINE QUOTE:

atrump - installation of power draw bar
Name: Atrump - Installation of Power Draw Bar
Price: Call For Price
Stock No:# PDB-MAX-L
ADD TO MACHINE QUOTE:

atrump - 52pcs clamping kit slot: 5/8
Name: Atrump - 52pcs Clamping Kit Slot: 5/8" (16mm) stud: 1/2-13
Price: Call For Price
Stock No:# CK-001-0
ADD TO MACHINE QUOTE:

atrump - 6
Name: Atrump - 6" Angle Vise W/Swivel Base (Import)
Price: Call For Price
Stock No:# VISE-6-1
ADD TO MACHINE QUOTE:

atrump - right angle attachment #40 (quill od: 105mm)
Name: Atrump - Right Angle Attachment #40 (Quill OD: 105mm)
Price: Call For Price
Stock No:# VR-40-105
ADD TO MACHINE QUOTE:

* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
