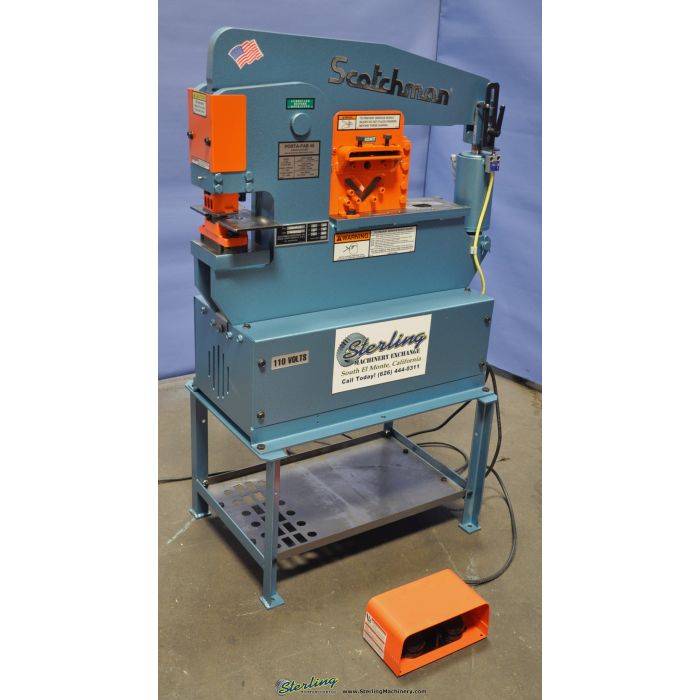

45 Tons scotchman PORTA FAB 45, New #SMPORTAFAB45
Machine Type:
IRONWORKERS
Manufacturer:
Scotchman
Model:
PORTA FAB 45
Capacity:
45 Tons
Condition:
New
Stock No:
#SMPORTAFAB45
$9,950.00
EnglishVideo
DETAILED SPECIFICATION
| Tonnage | 45 Ton |
| Punching Capacity | 1-1/2" x 3/8" |
| Special Tooling | 2 - 1/4" Max. Dia. |
| Flat Bar Shear | 6" Length |
| Angle Shear 90 Degrees | 3" x 3" x 5/16" |
| Angle Shear 45 Degreessss | 2"x 2" x 1/4" |
| Round Rod | 3/4" |
| Brake 8" | 25 Ton |
| Brake 12" | 20 Ton |
| Pipe Notcher | 3/4", 1" |
| Schedule 40 | 1 - 1/2" |
| Rectangle Notcher | 2" x 1 - 3/4" x 1/4" |
| 90 Degrees V-Notcher | 6" x 6" x 1/8" |
| Rod Shear | |
| Round Rod (Max.) | 1/4" To 1", 5 Cavity |
| Square Rod (Max.) | 1/4" To 3/4", 1 Cavity |
| Square Tube Shear | 1/2" to 1", 12 Gauge |
| Picket Tool | 1/2", 3/4" & 1" |
| Strokes Per Minute In Light Material | 20 SPM |
| Strokes Per Minute In Heavy Material | 6 SPM |
| Hydraulics | 2,500 PSI |
| Motor Standard | 2 HP 1PH |
| Motor Optional | 2 HP 1PH |
| Type | Hydraulic |
| Dimensions (L x W x H) | 36" x 18" x 39" |
Features
Keyed Punch Ram For Safety
45 - Ton Punch Station (1 - 1/8" In 1/2")
4 - 1/4" Throat Depth
2" Die Holders
One Round Punch & Die: Max. Diameter 1"
Adjustable Electric Stroke Control With Scale
Three - In - One Combination Tool
3 Year Manufacturers Warranty!
OPTIONAL EQUIPMENT AND TOOLING
Name: Scotchman - Rectangular Notcher (2" x 1-3/4" x 1/4") (PortaFab 45)
Price: Call For Price
Stock No:# 440000
ADD TO MACHINE QUOTE:
Name: Scotchman - 3 in 1 Combination Tool (When Ordered Separately) (PortaFab 45)
Price: Call For Price
Stock No:# 012351
ADD TO MACHINE QUOTE:
Name: Scotchman - Material Stop for 3 in 1 Tool
Price: Call For Price
Stock No:# 076930
ADD TO MACHINE QUOTE:
Name: Scotchman - Pipe Notcher Package (Includes Housing, 1-1/4" Sch. 40 Pipe Dies, 1-1/2" Sch. 40 Pipe Dies & Tool Table Pusher)
Price: Call For Price
Stock No:# 002300
ADD TO MACHINE QUOTE:
Name: Scotchman - 1/2" Upper & Lower Dies (14 GA. Max)
Price: Call For Price
Stock No:# 001150-01249
ADD TO MACHINE QUOTE:
Name: Scotchman - 12" Brake w/2" V Dies for 1/4" Material
Price: Call For Price
Stock No:# 433000
ADD TO MACHINE QUOTE:
Name: Scotchman - Brake Length Gauge w/Scale
Price: Call For Price
Stock No:# 026800
ADD TO MACHINE QUOTE:
Name: Scotchman - 12" Brake Table w/Scale & Squaring Arm #026865
Price: Call For Price
Stock No:# 026865
ADD TO MACHINE QUOTE:
Name: Scotchman - Open End Brake (Max 1/4" x 3" Flat or Angle Iron)
Price: Call For Price
Stock No:# 001360-001365
ADD TO MACHINE QUOTE:
Name: Scotchman - Pipe Notcher Housing (Separate Dies for Each Size)
Price: Call For Price
Stock No:# 001195
ADD TO MACHINE QUOTE:
Name: Scotchman - 3/4" Schedule 40 Pipe Die Set
Price: $640.00
Stock No:# 001220
ADD TO MACHINE QUOTE:
Name: Scotchman - 1" Schedule 40 Pipe Die Set
Price: $640.00
Stock No:# 001222
ADD TO MACHINE QUOTE:
Name: Scotchman - 1-1/4" Schedule 40 Pipe Die Set
Price: Call For Price
Stock No:# 001224
ADD TO MACHINE QUOTE:
Name: Scotchman - 1-1/2" Schedule 40 Pipe Die Set
Price: Call For Price
Stock No:# 001226
ADD TO MACHINE QUOTE:
Name: Scotchman - 2" Schedule 40 Pipe Die Set
Price: $700.00
Stock No:# 001228
ADD TO MACHINE QUOTE:
Name: Scotchman - Tool Table Pusher for Pipe Notcher
Price: Call For Price
Stock No:# 012450
ADD TO MACHINE QUOTE:
Name: Scotchman - 90 Degree V-Notcher (6" x 6" x 1/8" or 3" x 3" x 1/4")
Price: Call For Price
Stock No:# 540160
ADD TO MACHINE QUOTE:
Name: Scotchman - Square Tube Shear (1/2" to 1" - 12 Ga. Max)
Price: Call For Price
Stock No:# 001350-016540
ADD TO MACHINE QUOTE:
Name: Scotchman - Picket Tool Housing (Separate Dies for Each Size)
Price: Call For Price
Stock No:# 001293-001172-001175
ADD TO MACHINE QUOTE:
Name: Scotchman - 3/4" Upper & Lower Dies (14 Ga. Max)
Price: Call For Price
Stock No:# 001190-001292
ADD TO MACHINE QUOTE:
Name: Scotchman - 1" Upper & Lower Dies (14 Ga. Max)
Price: Call For Price
Stock No:# 001162-001264
ADD TO MACHINE QUOTE:
Name: Scotchman - 2-5/8" Die Holder
Price: Call For Price
Stock No:# 000687
ADD TO MACHINE QUOTE:
Name: Scotchman - Rod Shear (Up to 1" Round or 3/4" Square)
Price: Call For Price
Stock No:# 017400
ADD TO MACHINE QUOTE:
Name: Scotchman - #20 ROUND PUNCH & DIE PACKAGE
Price: Call For Price
Stock No:# 002505
ADD TO MACHINE QUOTE:
Name: Scotchman - DELUXE #20 PUNCH & DIE PACKAGE
Price: Call For Price
Stock No:# 002507
ADD TO MACHINE QUOTE:
Name: Scotchman - 4" x 6" Die Riser Blocks (Set of 2)
Price: Call For Price
Stock No:# 018277
ADD TO MACHINE QUOTE:
Name: Scotchman - Bolt - M12 x 75 SHCS (2 required for 4" x 6" Riser Blocks)
Price: Call For Price
Stock No:# 221328
ADD TO MACHINE QUOTE:
Name: Scotchman - 6" Brake w/4-Way Lower V Die
Price: Call For Price
Stock No:# 001176
ADD TO MACHINE QUOTE:
Name: Scotchman - 8" Brake w/2" V Dies for 1/4" Material
Price: Call For Price
Stock No:# 433003
ADD TO MACHINE QUOTE:
Name: Scotchman - Work Light - 110 Volt (Customer Install)
Price: Call For Price
Stock No:# 090393.1
ADD TO MACHINE QUOTE:
Name: Scotchman - Punch Pusher for Pipe Notcher
Price: Call For Price
Stock No:# 001194
ADD TO MACHINE QUOTE:
Name: Scotchman - Die Holder Spacer
Price: Call For Price
Stock No:# 001472
ADD TO MACHINE QUOTE:
Name: Scotchman - Weld Coupon Bender
Price: Call For Price
Stock No:# 024700-024720
ADD TO MACHINE QUOTE:
Name: Scotchman - #20 ROUND PUNCH & DIE PACKAGE
Price: Call For Price
Stock No:# 002506
ADD TO MACHINE QUOTE:
Name: Scotchman - 8" Brake Package
Price: Call For Price
Stock No:# 002518
ADD TO MACHINE QUOTE:
Name: Scotchman - 12" Brake Package
Price: Call For Price
Stock No:# 002519
ADD TO MACHINE QUOTE:
Name: Scotchman - Optional Brake Dies Available
Price: Call For Price
Stock No:# OPTIONALBRAKEDIES
ADD TO MACHINE QUOTE:
Name: Scotchman - Multi Shear - Strut Channel (XL & DO) - Material Sample Required
Price: Call For Price
Stock No:# 024504
ADD TO MACHINE QUOTE:
Name: Scotchman - Multi Shear - Special Profile (XL & DO) - Material Sample Required
Price: Call For Price
Stock No:# 024495
ADD TO MACHINE QUOTE:
Additional Information
Optional Scotchman Ironworker Accessories:
Call For Pricing.
CLICK HERE FOR A #20 PUNCH AND DIE PRICE LIST
CLICK HERE FOR A COMPLETE SCOTCHMAN IRONWORKER BROCHURE
Reasons to buy a Scotchman
Scotchman is Made in U.S.A. -- and we can prove it!- Scotchman offers the Best-in-the-Business 3 YEAR-WARRANTY!
- Scotchman has a SAFE punch & die change out.
- Scotchman punch is guided through a true vertical guide block.
- The punch can be safely left in a Scotchman ironworker while using the Angle Shear.
- The punch can be safely left in a Scotchman ironworker while using the Flat Bar Shear.
- The brake can be used without removing the punch on a Scotchman ironworker.
- A Scotchman Pipe Notcher can be used on the tool table without removing the punch.
- The Scotchman punch is Keyed to prevent shaped punches from spinning making it a SAFER machine.
- Scotchman ironworkers have a larger capacity angle shear.
- Calls made to Scotchman are answered by a person, not a machine.
Scotchman prides itself in manufacturing QUALITY, DEPENDABLE, AMERICAN Ironworkers.
* Temporary specifications subject to verification.
