Flow Fiber Laser Cutting Machines (LZR Series)
Browse Flow LZR fiber lasers by model, compare configurations, download brochures, and request pricing on new & used inventory.
Fast Forward Production
Designed for manufacturers and shaped by more than 50 years of experience in precision metal fabrication, Flow lasers deliver accuracy on both thin and thick materials. Built for high-volume production, its advanced dual-drive gantry and fast automatic shuttle table system support efficient operation.
Built for Speed, Stability & Consistency
- Dual-drive gantry: AC servo dual-drive gantry designed to maximize stability and reduce vibration at high speed, supporting part quality.
- G.L.A.S.S. CNC control: Windows-based CNC G.L.A.S.S. (Graphical Laser Application System Software).
- Auto-focus Precitec cutting head: Adjusts for varying thicknesses in piercing and cutting with a capacitive sensor for slight variations in material plane.
- Automatic nozzle changer: Systematic swap of cutting head tips for new materials and backup replacements for continuous production runs.
- Dual-pallet shuttle tables (LST): Standard laser shuttle tables provide swift exchange for sheets and a gateway to material handling automation.
Feature availability can vary by configuration—confirm exact options on your quote.
Power Options Matched to Your Production
Power levels available: 6 kW, 12 kW, 20 kW. Flow states these systems can cut and process materials over 1" thick (application dependent). For thinner materials, Flow lists cutting 0.25" aluminum, mild steel, and stainless steel at speeds of up to 1,000 inches/minute (application dependent).
What Fiber Lasers Are Commonly Used For
Fiber lasers are commonly used in fabrication for fast, repeatable cutting of sheet and plate components. Typical applications include production parts, brackets, panels, enclosures, frames, and precision profiles. Your actual results depend on material type, thickness, assist gas, and configuration.
- Sheet metal fabrication and job shop production
- Industrial manufacturing and general fabrication
- High-volume cutting where fast pallet exchange and automation matter

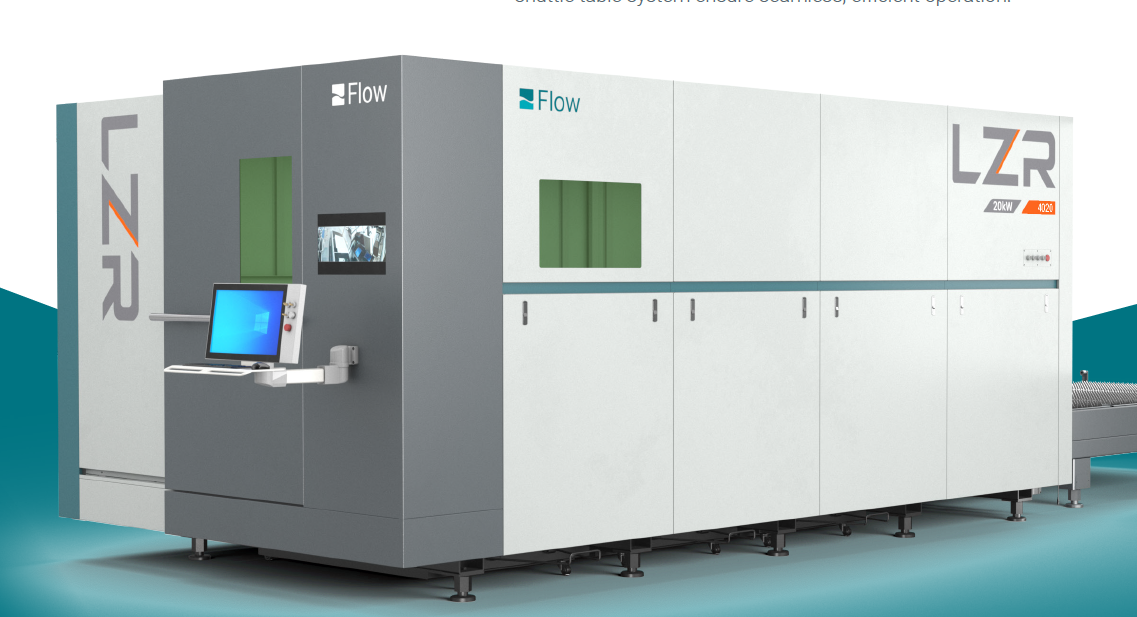

Flow LZR 3015 vs LZR 4020
| Specification | LZR 3015 | LZR 4020 |
|---|---|---|
| Power | 6 kW, 12 kW, 20 kW | 6 kW, 12 kW, 20 kW |
| Work Envelope | 120 × 60 in | 158 × 79 in |
| Z-Axis Travel | 11.75 in | 11.75 in |
| Linear Positional Accuracy | ± 0.001 in | ± 0.001 in |
| Repeatability | ± 0.0007 in | ± 0.0007 in |
| X/Y Max Speed | 3,937 in/min | 3,937 in/min |
| Max Weight of Workpiece | 4,400 lbs | 4,400 lbs |
| Machine Size (Footprint) | 342 × 119 × 83 in | 398 × 119 × 85 in |
Accuracy specifications are stated by Flow as per 3 ft / 1 m of travel unless otherwise noted. Larger bed sizes may be available—confirm with Flow.
Used Flow Fiber Lasers
Sterling Machinery Exchange occasionally offers used Flow fiber laser cutting machines, depending on current inventory and incoming equipment. If you’re searching for a used Flow LZR laser system (or comparable fiber laser cutting capacity), tell us your material type, thickness range, and production goals — we’ll help you find the right fit.
Flow Laser Machines in Stock
This section should display current new & used Flow laser inventory when available. If you want this to auto-populate like your other Flow pages, your dev can embed your existing inventory module here.

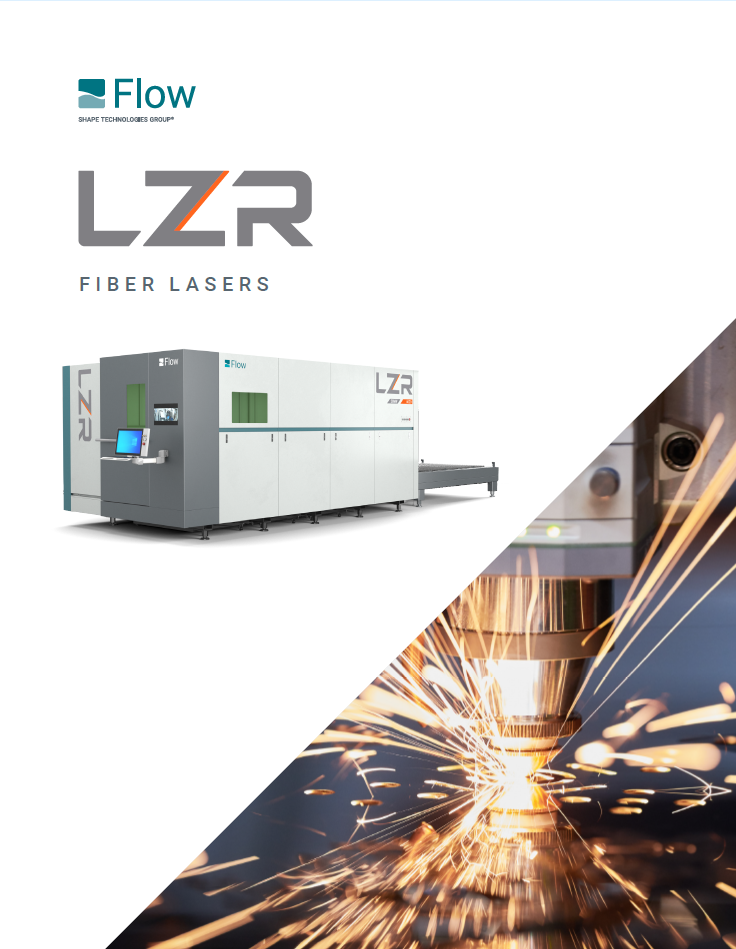

Download Flow LZR Fiber Laser PDFs
Add brochure downloads here. Keep file names consistent and trackable.
Brochure content and specifications may change. Confirm current configuration and options prior to purchase.
Flow Laser Demo Videos
Add your Sterling demo videos here (YouTube embeds or your on-site player). Paste links and I’ll format the embeds.
Flow Laser Demo (Video 1)
Flow Laser Demo (Video 2)
Service Coverage & Buying Help
Flow states local service & support in all 50 states. Sterling can help you evaluate configurations, power options, and availability (new or used) based on your materials, thickness, and throughput goals.
Sterling Machinery Exchange does not guarantee specific cut speeds or outcomes; results vary by material, thickness, assist gas, nozzle setup, and machine configuration. Always confirm production requirements with the manufacturer and your process engineering team.
Get a Quote on a Flow LZR Fiber Laser
Tell us what you’re cutting (material + thickness), target throughput, and whether you want 6 kW, 12 kW, or 20 kW. We’ll point you toward the right platform: LZR 3015 or LZR 4020.
Embed your RFQ form block here (name, email, phone, material, thickness, budget, new/used, timeline).
Prices fluctuate; final pricing depends on configuration, options, lead time, and availability.
Flow Laser Questions
What Flow laser models are on this page?
What power options are available?
How do I choose between LZR 3015 and LZR 4020?
Do you have used Flow lasers?
