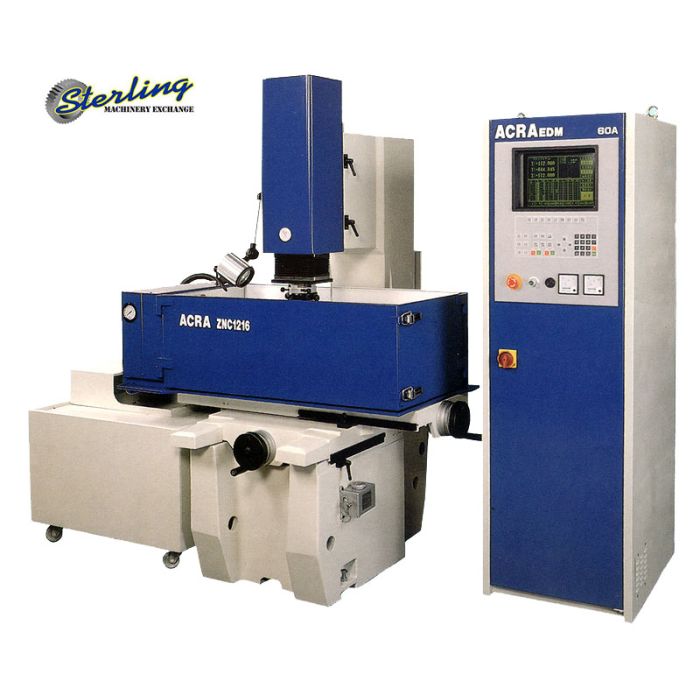

60 Amp Brand New Acra Electric Discharge Machine, Mdl. EDM1216, Fire Protection Device, Dielectric Level Control Device, Sleep Device, Memory Device Even Power Failure, The Coordinate Value, Machining Condition And Machining Time Could Be Indicated Clearly In the Monitor, 500 Blocks Of Program Sequence Make The Rough Edming-Middle Edming-Fine Finishing Could Be Accomplished Simply By One Step, 2 Steps Servo Speed System Specially For Deep Hole Machining Assure High Precision Performance, Automatic Monitor Protection Device, Automatic Anti-Arc Device, Work Light, Work Head, Clamping Set, Coolant System, Filters, Tool Box, #SMEDM1216
Stock No:
#SMEDM1216
Manufacturer:
Acra
Model:
EDM1216
Capacity:
60 Amp
Condition:
New
DETAILED SPECIFICATION
Work Tank Capacity
44" x 24" x 16"
Work Table Dimensions
28" x 18"
Longitudinal Travel
16"
Cross Travel
12"
Spindle Travel
8"
Headstock Travel
10"
Amps
60
Input Rating
7 KVA
Maximum Processing Speed
6 G/MIN
Electrode Wear Ratio
0.25%
Maximum Programming Capacity
500 Blocks
Minimum D.R.O. Resolution
0.0002"
Maximum D.R.O. Distance
99.9999"
Fluid Tank Capacity
380L
Horsepower
Voltage
220V AC ~ 3 Phase
EQUIPPED WITH
Coolant System
Fire Protection Device
Dielectric Level Control Device
Sleep Device
Memory Device Even Power Failure
The Coordinate Value, Machining Condition And Machining Time Could Be Indicated Clearly In The Monitor
500 Blocks Of Program Sequence Make The Rough Edming-Middle Edming-Fine Finishing Could Be Accomplished Simply By One Step
2 Steps Servo Speed System Specially For Deep Hole Machining Assure High Precision Performance
Automatic Monitor Protection Device
Automatic Anti-Arc Device
Work Head
Clamping Set
Filters
DISTRIBUTOR OF THE YEAR AWARD
* Temporary specifications subject to verification.
