6" x 13" Brand New Wellsaw Horizontal Manual Bandsaw, Mdl. 613, Hydraulic Feed Control with Adjustable Counterbalance Spring, Ball Bearing Blade Guides, Perimeter Ring Gear Blade Drive, 1 H.P. Motor, 4 Blade Speeds, Rite-Tension Blade Tensioning Device, Wet Cutting System, 110V at Controls, Blade Brush, Overload & Undervoltage Protection, Precision Ground Bed, Quick Acting Vise, Positive Frame Lock, Adjustable Stock Stop, Automatic Shut Off at End of Cut, OSHA Blade Guards, Tiger-Tooth Bi-Metal Blade, Coolant for Initial Start Up, #SM613

Stock No:
#SM613
Manufacturer:
Wellsaw
Model:
613
Capacity:
6" x 13"
Condition:
New

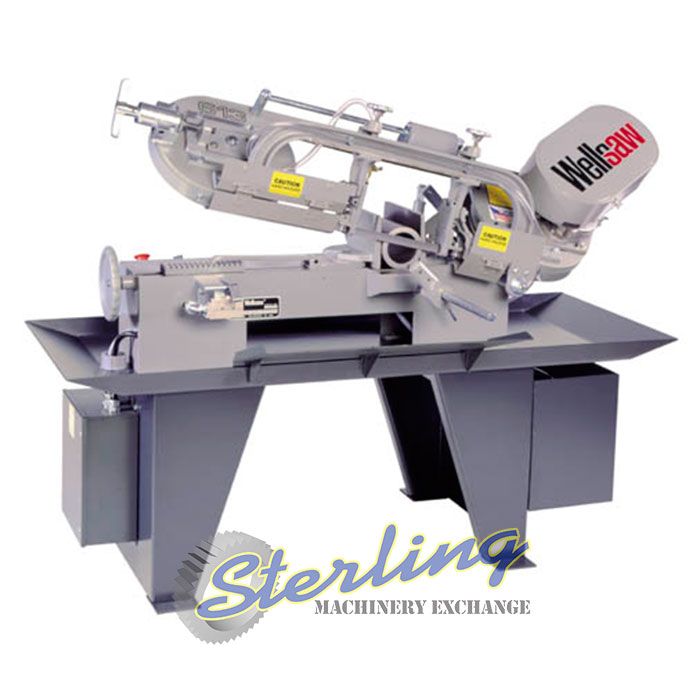

Brand New Wellsaw Horizontal Manual Bandsaw
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Capacity
Round
7"
Flat
13"
Rectangle
6" x 13"
45° Angle
6" x 6-1/2"
Blade Size
3/4" x 0.035" x 99"
Blade Speeds (4)
50 / 90 / 160 / 250 SFPM
Blade Guides
6 Sealed Ball Bearings
Blade Tension
Manual Rite-Tension®
Coolant System
Tank Capacity
8 Gallons
Submersible Pump
115V / 0.6 Amp / 170 GPH
Vise Control
Manual Screw
Swivel Vise
to 45°
Feed Control
Hydraulic with Adjustable Counterbalance
Band Wheels
11" Diameter Cast Iron
Horsepower
1 H.P.
Voltage Options
115, 208, 230 / 60 / 1 or 208, 230, 460 / 60 / 3
Voltage
Various Available upon Request
Floor Area Dimensions (W x L)
25" x 60"
EQUIPPED WITH
Hydraulic Feed Control With Adjustable Counterbalance Spring
Ball Bearing Blade Guides
Perimeter Ring Gear Blade Drive
1 H.P. Motor
4 Blade Speeds
Rite-Tension Blade Tensioning Device
Wet Cutting System
Overload & Undervoltage Protection
110V At Controls
Blade Brush
Precision Ground Bed
Quick Acting Vise
Adjustable Stock Stop
Positive Frame Lock
Automatic Shut Off At End Of Cut
OSHA Blade Guards
Coolant For Initial Start Up
Tiger-Tooth Bi-Metal Blade
OPTIONAL EQUIPMENT AND TOOLING
wellsaw - infinitely variable band speed drive
Name: Wellsaw - Infinitely Variable Band Speed Drive
Price: Call For Price
Stock No:# DL 613-498
ADD TO MACHINE QUOTE:

wellsaw - powered vise (air power, manual control)
Name: Wellsaw - Powered Vise (Air Power, Manual Control)
Price: Call For Price
Stock No:# DL 613-736
ADD TO MACHINE QUOTE:

wellsaw - work light with 250va transformer
Name: Wellsaw - Work Light with 250va Transformer
Price: Call For Price
Stock No:# DL 613-781
ADD TO MACHINE QUOTE:

wellsaw - flush hose kit (w/hi-output pump)
Name: Wellsaw - Flush Hose Kit (w/hi-output pump)
Price: Call For Price
Stock No:# DL 613-905
ADD TO MACHINE QUOTE:

wellsaw - casters (set of 4 w/2 locking)
Name: Wellsaw - Casters (set of 4 w/2 locking)
Price: $186.00
Stock No:# 100113-003
ADD TO MACHINE QUOTE:

wellsaw - fused disconnect - lever type / nema 1
Name: Wellsaw - Fused Disconnect - Lever Type / NEMA 1
Price: Call For Price
Stock No:# DL 613-912
ADD TO MACHINE QUOTE:

wellsaw - fused disconnect - rotary type / nema 12
Name: Wellsaw - Fused Disconnect - Rotary Type / NEMA 12
Price: Call For Price
Stock No:# DL 613-732
ADD TO MACHINE QUOTE:

wellsaw - mql lubricant system
Name: Wellsaw - MQL Lubricant System
Price: Call For Price
Stock No:# DL 613-902
ADD TO MACHINE QUOTE:

wellsaw - lubricant for mql system (1 gallon)
Name: Wellsaw - Lubricant for MQL System (1 Gallon)
Price: Call For Price
Stock No:# 100318-028
ADD TO MACHINE QUOTE:

wellsaw - spare bi-metal blades - 3/4
Name: Wellsaw - Spare Bi-Metal Blades - 3/4" x 8'-3" (set of 6)
Price: Call For Price
Stock No:# 098004-030
ADD TO MACHINE QUOTE:

wellsaw - leveling/vibration mounts
Name: Wellsaw - Leveling/Vibration Mounts
Price: Call For Price
Stock No:# 098041-004
ADD TO MACHINE QUOTE:

wellsaw - overhead bundle clamp air powered (must have infeed roller conveyor)
Name: Wellsaw - Overhead Bundle Clamp Air Powered (must have infeed roller conveyor)
Price: Call For Price
Stock No:# DL 613-910
ADD TO MACHINE QUOTE:

wellsaw - heavy duty stock stand, 6
Name: Wellsaw - Heavy Duty Stock Stand, 6" Wide Roller (1000 lb Capacity)
Price: Call For Price
Stock No:# M-325A
ADD TO MACHINE QUOTE:

wellsaw - heavy duty stock stand, 6
Name: Wellsaw - Heavy Duty Stock Stand, 6" (1000 lb capacity) - WITH CASTERS
Price: Call For Price
Stock No:# M-325HB
ADD TO MACHINE QUOTE:

wellsaw - heavy duty stock stand, 12
Name: Wellsaw - Heavy Duty Stock Stand, 12" Wide Roller (1000 lb Capacity)
Price: Call For Price
Stock No:# M-326A
ADD TO MACHINE QUOTE:

wellsaw - heavy duty stock stand, 12
Name: Wellsaw - Heavy Duty Stock Stand, 12" (1000 lb capacity) - WITH CASTERS
Price: Call For Price
Stock No:# M-326HB
ADD TO MACHINE QUOTE:

wellsaw - roller conveyor - 5' x 18
Name: Wellsaw - Roller Conveyor - 5' x 18"
Price: Call For Price
Stock No:# 098050-006
ADD TO MACHINE QUOTE:

wellsaw - roller conveyor 10' x 18
Name: Wellsaw - Roller Conveyor 10' x 18"
Price: Call For Price
Stock No:# 098050-007
ADD TO MACHINE QUOTE:

wellsaw - mid-duty stock stand, 18
Name: Wellsaw - Mid-Duty Stock Stand, 18" (250 lb capacity)
Price: Call For Price
Stock No:# 098047-001A
ADD TO MACHINE QUOTE:

wellsaw - spare parts kit for insurance against downtime (call for info/pricing)
Name: Wellsaw - Spare Parts Kit for Insurance Against Downtime (call for info/pricing)
Price: Call For Price
Stock No:# SPAREPARTKIT
ADD TO MACHINE QUOTE:

* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
