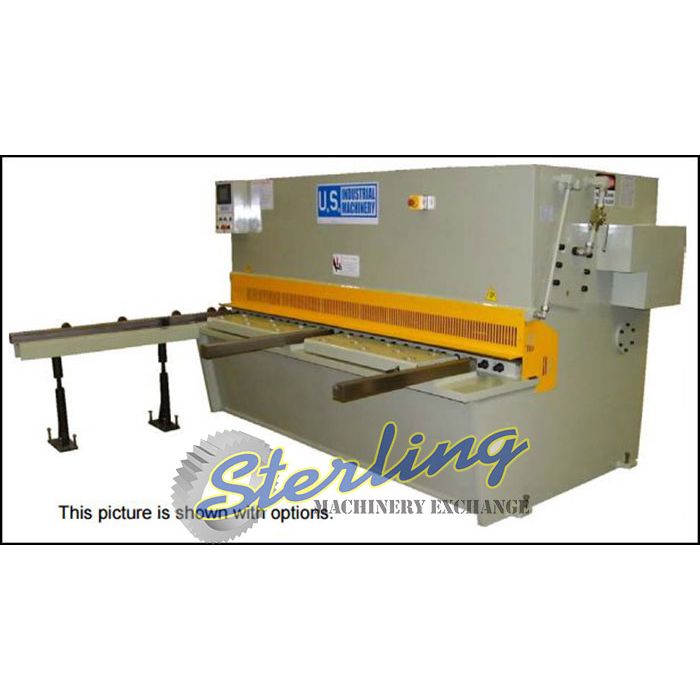

3/8" x 13' Brand New U.S. Industrial Hydraulic Shear, Mdl. US13375, Squaring Arm, 39.5" from Blade to End, High Carbon, High Chrome Shear Blades, Ball Transfers on Each Table Segment, Manual Quick Change Blade Gap Adjustment, Stroke Counter, Front Operated Power Back Gauge With Digital Readout, Blade Guard, Micro Switch Protected, Hydraulic, Electrical Overload Protection, Automatic Swing-Up on Back Gauge, Bolt on Table Segments (6), Hold-downs Faced with Anti-Mar Neoprene, Swing Beam Design, Pressure Sensing Hold Downs, Electric Stroke Adjustment, Operator Console Control, Shadow Lighting, Low Noise Gear Pump, Support Arms (3), #SMUS13375

Stock No:
#SMUS13375
Manufacturer:
U.S. Industrial
Model:
US13375
Capacity:
3/8" x 13'
Condition:
New
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Shearing Capacity
3/8" Mild Steel @ 65,000 psi
Type
Hydraulic
Maximum Cutting Length/Sheet Size
157"
Strokes Per MInute
8
Throat Depth
3.0"
Back Gauge
Yes
Adjustment Range of Back Gauge
0.75" - 36"
Hydraulic Oil Capacity
113 Gallons
Horsepower
20 H.P.
Voltage
Request On Order
Dimensions (L x W x H)
193" x 88" x 80"
WEIGHT
30,864 lbs
EQUIPPED WITH
Squaring Arm, 39.5" From Blade To End
High Carbon, High Chrome Shear Blades
Front Operated Power Back Gauge With Digital Readout
Manual Quick Change Blade Gap Adjustment
Hydraulic, Electrical Overload Protection
Stroke Counter
Hold-downs Faced With Anti-Mar Neoprene
Automatic Swing-Up On Back Gauge
Swing Beam Design
Pressure Sensing Hold Downs
Bolt On Table Segments (6)
Electric Stroke Adjustment
Operator Console Control
Shadow Lighting
Low Noise Gear Pump
Ball Transfers On Each Table Segment
Blade Guard, Micro Switch Protected
Support Arms (3)
OPTIONAL EQUIPMENT AND TOOLING
u.s. industrial - training at customer site (less than 300 miles from memphis) #usindustrial-2
Name: U.S. Industrial - Training at Customer Site (less than 300 miles from Memphis) #USIndustrial-2
Price: Call For Price
Stock No:# USINDUSTRIAL-2
ADD TO MACHINE QUOTE:

u.s. industrial - training at customer site (more than 300 miles from memphis) #usindustrial-3
Name: U.S. Industrial - Training at Customer Site (more than 300 miles from Memphis) #USIndustrial-3
Price: Call For Price
Stock No:# USINDUSTRIAL-3
ADD TO MACHINE QUOTE:

u.s. industrial - material support/drop chute #usindustrial-n
Name: U.S. Industrial - Material Support/Drop Chute #USIndustrial-N
Price: Call For Price
Stock No:# USINDUSTRIAL-N
ADD TO MACHINE QUOTE:

u.s. industrial - hardened rolls
Name: U.S. Industrial - Hardened Rolls
Price: Call For Price
Stock No:# USINDUSTRIAL-E
ADD TO MACHINE QUOTE:

u.s. industrial - pneumatic sheet support
Name: U.S. Industrial - Pneumatic Sheet Support
Price: $5,990.00
Stock No:# USINDUSTRIAL-F
ADD TO MACHINE QUOTE:

u.s. industrial - 6' squaring arm
Name: U.S. Industrial - 6' Squaring Arm
Price: Call For Price
Stock No:# USINDUSTRIAL-H
ADD TO MACHINE QUOTE:

u.s. industrial - 8' squaring arm
Name: U.S. Industrial - 8' Squaring Arm
Price: Call For Price
Stock No:# USINDUSTRIAL-I
ADD TO MACHINE QUOTE:

u.s. industrial - 10' squaring arm
Name: U.S. Industrial - 10' Squaring Arm
Price: Call For Price
Stock No:# USINDUSTRIAL-J
ADD TO MACHINE QUOTE:

u.s. industrial - training in our memphis, tn showroom
Name: U.S. Industrial - Training in our Memphis, TN Showroom
Price: Call For Price
Stock No:# USINDUSTRIAL-L
ADD TO MACHINE QUOTE:

* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
