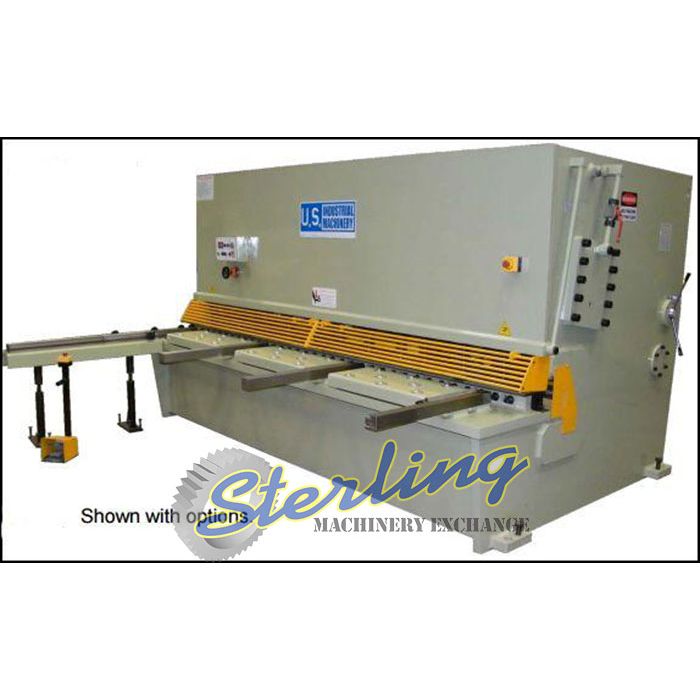

5/8" x 10' Brand New U.S. Industrial Hydraulic Shear, Mdl. US10625, Squaring Arm, 39.5" from Blade to End, High Carbon, High Chrome Shear Blades, Ball Transfers on Each Table Segment, Manual Quick Change Blade Gap Adjustment, Stroke Counter, Front Operated Power Back Gauge With Digital Readout, Blade Guard, Micro Switch Protected, Hydraulic, Electrical Overload Protection, Automatic Swing-Up on Back Gauge, Bolt on Table Segments (3), Hold-downs Faced with Anti-Mar Neoprene, Swing Beam Design, Pressure Sensing Hold Downs, Electric Stroke Adjustment, Operator Console Control, Shadow Lighting, Low Noise Gear Pump, Support Arms, #SMUS10625

Stock No:
#SMUS10625
Manufacturer:
U.S. Industrial
Model:
US10625
Capacity:
5/8" x 10'
Condition:
New
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Shearing Capacity
5/8" Mild Steel @ 65,000 psi
Type
Hydraulic
Maximum Cutting Length/Sheet Size
126"
Strokes Per MInute
7
Throat Depth
5.9"
Back Gauge
Yes
Adjustment Range of Back Gauge
0.75" - 36"
Hydraulic Oil Capacity
137 Gallons
Voltage
Request On Order
Dimensions (L x W x H)
161" x 88" x 84"
WEIGHT
33,069 lbs
EQUIPPED WITH
Squaring Arm, 39.5" From Blade To End
High Carbon, High Chrome Shear Blades
Front Operated Power Back Gauge With Digital Readout
Ball Transfers On Each Table Segment
Manual Quick Change Blade Gap Adjustment
Support Arms
Stroke Counter
Blade Guard, Micro Switch Protected
Hydraulic, Electrical Overload Protection
Automatic Swing-Up On Back Gauge
Bolt On Table Segments (3)
Hold-downs Faced With Anti-Mar Neoprene
Swing Beam Design
Pressure Sensing Hold Downs
Electric Stroke Adjustment
Operator Console Control
Shadow Lighting
Low Noise Gear Pump
OPTIONAL EQUIPMENT AND TOOLING
u.s. industrial - training at customer site (less than 300 miles from memphis) #usindustrial-2
Name: U.S. Industrial - Training at Customer Site (less than 300 miles from Memphis) #USIndustrial-2
Price: Call For Price
Stock No:# USINDUSTRIAL-2
ADD TO MACHINE QUOTE:

u.s. industrial - training at customer site (more than 300 miles from memphis) #usindustrial-3
Name: U.S. Industrial - Training at Customer Site (more than 300 miles from Memphis) #USIndustrial-3
Price: Call For Price
Stock No:# USINDUSTRIAL-3
ADD TO MACHINE QUOTE:

u.s. industrial - material support/drop chute (call for pricing)
Name: U.S. Industrial - Material Support/Drop Chute (call for pricing)
Price: Call For Price
Stock No:# USINDUSTRIAL-O
ADD TO MACHINE QUOTE:

u.s. industrial - hardened rolls
Name: U.S. Industrial - Hardened Rolls
Price: Call For Price
Stock No:# USINDUSTRIAL-E
ADD TO MACHINE QUOTE:

u.s. industrial - pneumatic sheet support
Name: U.S. Industrial - Pneumatic Sheet Support
Price: $5,990.00
Stock No:# USINDUSTRIAL-F
ADD TO MACHINE QUOTE:

u.s. industrial - 6' squaring arm
Name: U.S. Industrial - 6' Squaring Arm
Price: Call For Price
Stock No:# USINDUSTRIAL-H
ADD TO MACHINE QUOTE:

u.s. industrial - 8' squaring arm
Name: U.S. Industrial - 8' Squaring Arm
Price: Call For Price
Stock No:# USINDUSTRIAL-I
ADD TO MACHINE QUOTE:

u.s. industrial - 10' squaring arm
Name: U.S. Industrial - 10' Squaring Arm
Price: Call For Price
Stock No:# USINDUSTRIAL-J
ADD TO MACHINE QUOTE:

u.s. industrial - 48
Name: U.S. Industrial - 48" Back Gauge (No Swing Up)
Price: Call For Price
Stock No:# USINDUSTRIAL-K
ADD TO MACHINE QUOTE:

u.s. industrial - training in our memphis, tn showroom
Name: U.S. Industrial - Training in our Memphis, TN Showroom
Price: Call For Price
Stock No:# USINDUSTRIAL-L
ADD TO MACHINE QUOTE:

* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
