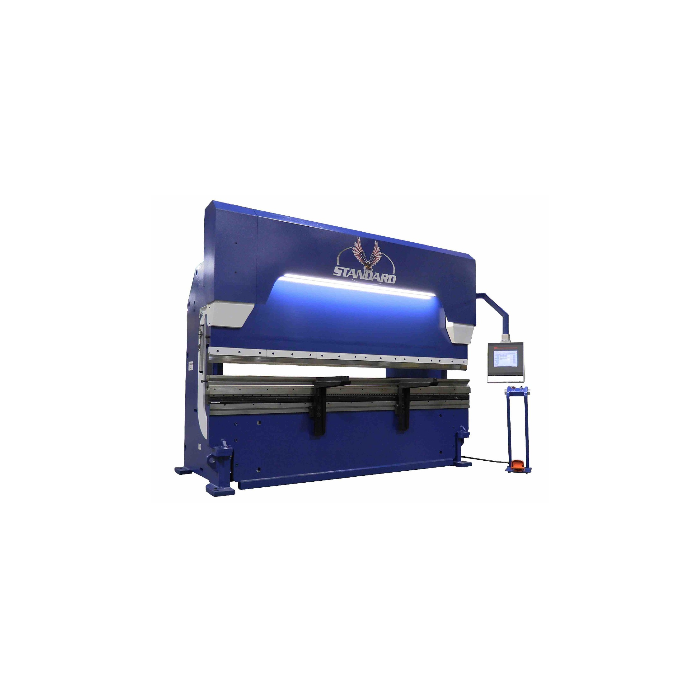

350 Tons x 10' standard EV350-10, New #SMAEV35010

Machine Type:
PRESS BRAKE
Manufacturer:
Standard
Model:
EV350-10
Capacity:
350 Tons x 10'
Condition:
New
Stock No:
#SMAEV35010
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Capacity: 350 Tons
Bed and Ram Length 120"
Distance Between Housing 8’-5”
Adjustable Stroke 10”
Maximum Open Height 20”
Closed Height 10”
Below Grade No
Fast Approach 250 I. P. M.
Pressing Speed 24 I. P. M.
Return Speed 250 I. P. M.
WEIGHT 30,000 Lbs.
Dimension (L x D x H) 156" L X 70" W X 140" H
Ram Repeatability +,- .0004”
Features
(2) 24” T-Slot Support Arms with imbedded scale
Front Operated Digital Microcomputer Programmable Power Back Gauge
10” Deep gaps in side frames for bending longer lengths with larger flanges
Super heavy duty, 36" travel, precision ball screw backgauge with 500 IPM travel speed.
4’ squaring arm with scale
The parallelism between moving upper beam and fixed lower beam during is ensured by two precision proportional valves. controlled by the CNC control (axes Y1 and Y2).
Hydraulic drive including complete hydraulic system
Motor and controls. Electrics for 3/60/220/440. Low voltage at the controls. Emergency stop palm button.
All Components Readily Available from Your Local Suppliers
All component’s original manufacturer and part number are included in machine manual so you will never have problems locating parts.
Typical 20-30 Year Lifetime
Manual ram clamps for American style tooling. Available with Wila quick-change ram clamping optionally.
Two day onsite training in contiguous U.S.
29” travel, X axis, servo gauging system w/manual R/Z
* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
