65 Tons scotchman 6509-24M, New #SM650924M

Machine Type:
IRONWORKERS
Manufacturer:
Scotchman
Model:
6509-24M
Capacity:
65 Tons
Condition:
New
Stock No:
#SM650924M

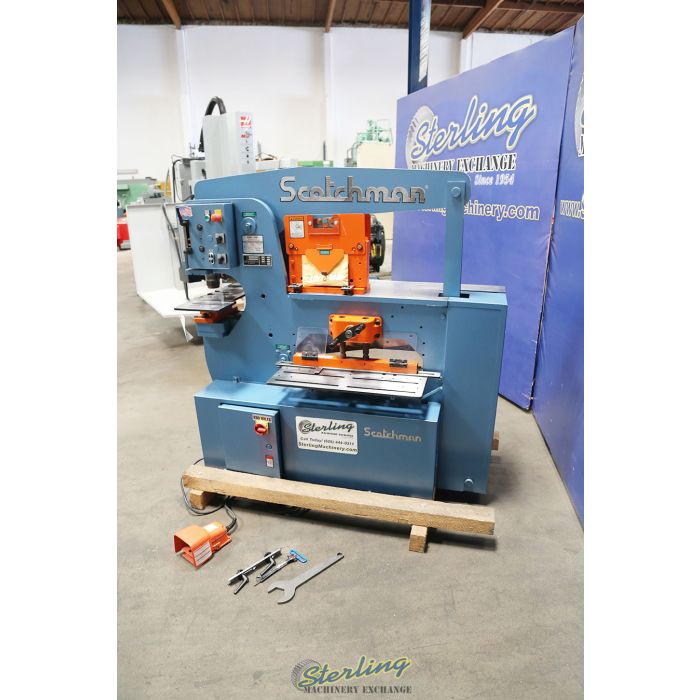

Brand New Scotchman Hydraulic Iron Worker
Print a Quick Quote!
View Gallery
EnglishVideo
65 Ton Used Scotchman Hydraulic Iron Worker, Mdl. 6509-24M, 24\" Brake Attachment, Angle Shear, Back Stop, Punches and Dies, Year (1999) #A1880 65 Ton Used Scotchman Hydraulic Iron Worker, Mdl. 6509-24M, 24" Brake Attachment, Angle Shear, Back Stop, Punches and Dies, Year (1999) #A1880 To view NEW and USED Ironworkers for sale please visit http://www.SterlingMachinery.com call Today!  626-444-0311
DETAILED SPECIFICATION
Punching Capacity 65 Ton
Type Hydraulic
Throat Depth 9"
Capacity .
Flat Bar Shear 24" Length
Angle Shear .
90 Degrees 6" x 6" x 3/8"
45 Degrees 3" x 3" x 3/8"
45 Degrees With Bar Shear 4" x 4" x 1/2"
Pipe Notcher (Schedule 40 I.D.) 3/4", 1", 1-1/4", 1-1/2", 2"
Rectangle Notcher 2" x 2-1/2" x 3/8"
90 Degree V. Notcher 6" x 6" x 5/16"
Channel Shear 2" To 5" Adj.
Rod Shear 1/4" to 1-1/4"
Round Rod 1-4" to 1"
Square Tube Shear 1/2" to 2", 12" Gauge
Picket Tool 1/2", 3/4", 1", 16 Gauge
Brake 12"
Brake 24" 30 Ton
Open End Brake 1/4" x 5" (flat or angle iron)
Offset Die Holder Max. 40 Ton
Stroke 3/4"
Hydraulics 2,600 PSI
Horsepower 5 H.P.
Dimensions (L x W x H) 60" x 24" x 66"
WEIGHT 2985 lbs
Features
Keyed Punch Ram For Safety
Angle Shear
Stroke Control With Scale
Punch Nut With Wrench And Stripper
Keyed Punch Ram
One Round Punch & Die: Maximum Diameter 1 - 1/
Punch Gauging Table With Fence & Scale
One Round Punch & Die
# 40 And # 45 Punch Nuts With Wrench & Stripper
Punch Jog Control
Shear Table With Miter Fence
Tool Table Work Area
3 Year Manufacturers Warranty!
OPTIONAL EQUIPMENT AND TOOLING
scotchman - punch table extension
Name: Scotchman - Punch Table Extension
Price: Call For Price
Stock No:# 026765
ADD TO MACHINE QUOTE:

scotchman - 36
Name: Scotchman - 36"/40" Punch Gauging Extension (LH MULTI-LOC). Includes 3 Vertical Stop Blocks - Material Thickness 16 Ga. to 3/4".
Price: Call For Price
Stock No:# 029291
ADD TO MACHINE QUOTE:

scotchman - 36
Name: Scotchman - 36"/40" Punch Gauging Extension (RH MULTI-LOC). Includes 3 Vertical Stop Blocks - Material Thickness 16 Ga. to 3/4".
Price: Call For Price
Stock No:# 029289
ADD TO MACHINE QUOTE:

scotchman - 85
Name: Scotchman - 85"/90" Punch Gauging Extension (LH MULTI-LOC). Includes 6 Vertical Stop Blocks - Material Thickness 16 Ga. to 3/4"
Price: Call For Price
Stock No:# 029292
ADD TO MACHINE QUOTE:

scotchman - 48
Name: Scotchman - 48" Electric Back Gauge
Price: Call For Price
Stock No:# 026600
ADD TO MACHINE QUOTE:

scotchman - 24
Name: Scotchman - 24" Brake Table w/Scale & Squaring Arm
Price: Call For Price
Stock No:# 026880
ADD TO MACHINE QUOTE:

scotchman - #45 retaining nut (punching from 1-9/32
Name: Scotchman - #45 Retaining Nut (Punching from 1-9/32" to 1-9/16")
Price: Call For Price
Stock No:# 016096
ADD TO MACHINE QUOTE:

scotchman - heavy duty retaining nut (punching from 1-19/32
Name: Scotchman - Heavy Duty Retaining Nut (Punching from 1-19/32" to 4")
Price: Call For Price
Stock No:# 026500
ADD TO MACHINE QUOTE:

scotchman - wrench for heavy duty retaining nut
Name: Scotchman - Wrench for Heavy Duty Retaining Nut
Price: Call For Price
Stock No:# 018507
ADD TO MACHINE QUOTE:

scotchman - die insert for 2-1/2
Name: Scotchman - Die Insert for 2-1/2" OD Dies
Price: Call For Price
Stock No:# 006252
ADD TO MACHINE QUOTE:

scotchman - die insert for 3
Name: Scotchman - Die Insert for 3" OD Dies
Price: Call For Price
Stock No:# 006302
ADD TO MACHINE QUOTE:

scotchman - offset die holder for flange punching (2
Name: Scotchman - Offset Die Holder For Flange Punching (2" OD Dies Only, Max 40 Tons)
Price: Call For Price
Stock No:# 013186
ADD TO MACHINE QUOTE:

scotchman - #40 & #82 round punch & die package includes: 11/32
Name: Scotchman - #40 & #82 Round Punch & Die Package Includes: 11/32", 15/32", 17/32", 19/32", 21/32", 23/32", 25/32", 27/32", 29/32", 31/32", 1-1/32", 1-3/16"
Price: Call For Price
Stock No:# 002545
ADD TO MACHINE QUOTE:

scotchman - work light (factory install)
Name: Scotchman - Work Light (Factory Install)
Price: Call For Price
Stock No:# 090392
ADD TO MACHINE QUOTE:

scotchman - laser light for bar shear (factory install)
Name: Scotchman - Laser Light for Bar Shear (Factory Install)
Price: Call For Price
Stock No:# 033254
ADD TO MACHINE QUOTE:

scotchman - 85
Name: Scotchman - 85"/90" Punch Gauging Extension (RH MULTI-LOC). Includes 6 Vertical Stop Blocks - Material Thickness 16 Ga. to 3/4"
Price: Call For Price
Stock No:# 029293
ADD TO MACHINE QUOTE:

scotchman - punch push for pipe notcher
Name: Scotchman - Punch Push For Pipe Notcher
Price: Call For Price
Stock No:# 001205
ADD TO MACHINE QUOTE:

scotchman - rectangular notcher (2
Name: Scotchman - Rectangular Notcher (2" x 2-1/2" x 3/8")
Price: Call For Price
Stock No:# 026000
ADD TO MACHINE QUOTE:

scotchman - oversized die holder for 6
Name: Scotchman - Oversized Die Holder For 6" x 6" Dies
Price: Call For Price
Stock No:# 028300
ADD TO MACHINE QUOTE:

scotchman - stripper for offset die holder (includes guard)
Name: Scotchman - Stripper for Offset Die Holder (Includes Guard)
Price: Call For Price
Stock No:# 012127
ADD TO MACHINE QUOTE:

scotchman - 66 degree angle blade (4
Name: Scotchman - 66 Degree Angle Blade (4" x 3-1/2", 3-1/2" x 3", 3" x 2-1/2")
Price: Call For Price
Stock No:# 016238
ADD TO MACHINE QUOTE:

scotchman - 70 degree angle blade (4
Name: Scotchman - 70 Degree Angle Blade (4" x 3", 2-1/2" x 2", 2" x 1-1/2")
Price: Call For Price
Stock No:# 016239
ADD TO MACHINE QUOTE:

scotchman - 74 degree angle blade (6
Name: Scotchman - 74 Degree Angle Blade (6" x 4", 5" x 3-1/2", 3" x 2")
Price: Call For Price
Stock No:# 016240
ADD TO MACHINE QUOTE:

scotchman - 80 degree angle blade (6
Name: Scotchman - 80 Degree Angle Blade (6" x 3-1/2", 5" x 3")
Price: Call For Price
Stock No:# 016241
ADD TO MACHINE QUOTE:

scotchman - upper angle blade quick change hardware
Name: Scotchman - Upper Angle Blade Quick Change Hardware
Price: Call For Price
Stock No:# 026708
ADD TO MACHINE QUOTE:

scotchman - angle iron miter guide (45 & 22 degrees)
Name: Scotchman - Angle Iron Miter Guide (45 & 22 Degrees)
Price: Call For Price
Stock No:# 026737
ADD TO MACHINE QUOTE:

scotchman - hydraulic bar shear hold down (factory install only)
Name: Scotchman - Hydraulic Bar Shear Hold Down (Factory Install Only)
Price: Call For Price
Stock No:# 017580
ADD TO MACHINE QUOTE:

scotchman 90 degree v notcher (6
Name: Scotchman 90 Degree V Notcher (6" x 6" x 5/16")
Price: Call For Price
Stock No:# 016600
ADD TO MACHINE QUOTE:

scotchman - urethane stripper assembly (works with the #40 tooling only - max. diameter 1-1/4
Name: Scotchman - Urethane Stripper Assembly (Works with the #40 Tooling Only - Max. Diameter 1-1/4". Will NOT work with the Offset Die Holder)
Price: Call For Price
Stock No:# 026040
ADD TO MACHINE QUOTE:

scotchman - angle shear (6
Name: Scotchman - Angle Shear (6" x 6" x 3/8" or 5" x 5" x 1/2") when ordered separately
Price: Call For Price
Stock No:# 026727
ADD TO MACHINE QUOTE:

scotchman - 12
Name: Scotchman - 12" Brake Package (includes 12" Brake, Brake Length Gauge w/Scale & 12" Brake Table w/Scale & Squaring Arm)​
Price: Call For Price
Stock No:# 002322
ADD TO MACHINE QUOTE:

scotchman - 24
Name: Scotchman - 24" Brake Package (Includes 24" Brake, Brake Length Gauge w/Scale & 24" Brake Table w/Scale & Squaring Arm)
Price: Call For Price
Stock No:# 002330
ADD TO MACHINE QUOTE:

scotchman - channel shear package (includes channel shear [2
Name: Scotchman - Channel Shear Package (Includes Channel Shear [2" to 6" Adjustable - 5" Maximum], Offset Die Holder [For Flange Punching] & Stripper for Offset Die Holder
Price: Call For Price
Stock No:# 002350
ADD TO MACHINE QUOTE:

scotchman - brake length gauge w/scale
Name: Scotchman - Brake Length Gauge w/Scale
Price: Call For Price
Stock No:# 026800
ADD TO MACHINE QUOTE:

scotchman - 12
Name: Scotchman - 12" Brake Table w/Scale & Squaring Arm #026865
Price: Call For Price
Stock No:# 026865
ADD TO MACHINE QUOTE:

scotchman - pipe notcher housing (separate dies for each size)
Name: Scotchman - Pipe Notcher Housing (Separate Dies for Each Size)
Price: Call For Price
Stock No:# 001195
ADD TO MACHINE QUOTE:

scotchman - 3/4
Name: Scotchman - 3/4" Schedule 40 Pipe Die Set
Price: $640.00
Stock No:# 001220
ADD TO MACHINE QUOTE:

scotchman - 1
Name: Scotchman - 1" Schedule 40 Pipe Die Set
Price: $640.00
Stock No:# 001222
ADD TO MACHINE QUOTE:

scotchman - 1-1/4
Name: Scotchman - 1-1/4" Schedule 40 Pipe Die Set
Price: Call For Price
Stock No:# 001224
ADD TO MACHINE QUOTE:

scotchman - 1-1/2
Name: Scotchman - 1-1/2" Schedule 40 Pipe Die Set
Price: Call For Price
Stock No:# 001226
ADD TO MACHINE QUOTE:

scotchman - 2
Name: Scotchman - 2" Schedule 40 Pipe Die Set
Price: $700.00
Stock No:# 001228
ADD TO MACHINE QUOTE:

scotchman - tool table extension
Name: Scotchman - Tool Table Extension
Price: Call For Price
Stock No:# 026695
ADD TO MACHINE QUOTE:

scotchman - 48
Name: Scotchman - 48" Deluxe Back Gauge
Price: Call For Price
Stock No:# 025603
ADD TO MACHINE QUOTE:

scotchman - infeed conveyor (24
Name: Scotchman - Infeed Conveyor (24" x 5' w/Support Arms)
Price: Call For Price
Stock No:# 026980
ADD TO MACHINE QUOTE:

scotchman - deluxe #40 punch & #82 die package.
Name: Scotchman - Deluxe #40 Punch & #82 Die Package.
Price: Call For Price
Stock No:# 002855
ADD TO MACHINE QUOTE:

scotchman - optional brake dies available
Name: Scotchman - Optional Brake Dies Available
Price: Call For Price
Stock No:# OPTIONALBRAKEDIES
ADD TO MACHINE QUOTE:

scotchman - tool table pusher for pipe notcher
Name: Scotchman - Tool Table Pusher for Pipe Notcher
Price: Call For Price
Stock No:# 001210
ADD TO MACHINE QUOTE:

scotchman - pipe notcher package (includes housing, 1-1/4
Name: Scotchman - Pipe Notcher Package (includes Housing, 1-1/4" Sch. 40 Pipe Dies, 1-1/2" Sch. 40 Pipe Dies, Tool Table Pusher & Punch Pusher)
Price: $1,440.00
Stock No:# 002304
ADD TO MACHINE QUOTE:

scotchman - productivity package (manual)
Name: Scotchman - Productivity Package (Manual)
Price: Call For Price
Stock No:# 002362
ADD TO MACHINE QUOTE:

scotchman - productivity package (electric)
Name: Scotchman - Productivity Package (Electric)
Price: Call For Price
Stock No:# 002363
ADD TO MACHINE QUOTE:

scotchman - multi shear - strut channel (xl & do) - material sample required
Name: Scotchman - Multi Shear - Strut Channel (XL & DO) - Material Sample Required
Price: Call For Price
Stock No:# 024504
ADD TO MACHINE QUOTE:

scotchman - multi shear - special profile (xl & do) - material sample required
Name: Scotchman - Multi Shear - Special Profile (XL & DO) - Material Sample Required
Price: Call For Price
Stock No:# 024495
ADD TO MACHINE QUOTE:

Additional Information

Reasons to buy a Scotchman

  1. Scotchman is Made in U.S.A. -- and we can prove it!
  2. Scotchman offers the Best-in-the-Business 3 YEAR-WARRANTY!
  3. Scotchman has a SAFE punch & die change out.
  4. Scotchman punch is guided through a true vertical guide block.
  5. The punch can be safely left in a Scotchman ironworker while using the Angle Shear.
  6. The punch can be safely left in a Scotchman ironworker while using the Flat Bar Shear.
  7. The brake can be used without removing the punch on a Scotchman ironworker.
  8. A Scotchman Pipe Notcher can be used on the tool table without removing the punch.
  9. The Scotchman punch is Keyed to prevent shaped punches from spinning making it a SAFER machine.
  10. Scotchman ironworkers have a larger capacity angle shear.
  11. Calls made to Scotchman are answered by a person, not a machine.

Scotchman prides itself in manufacturing QUALITY, DEPENDABLE, AMERICAN Ironworkers.

Made in the U.S.A.



* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.

Similar Machines
New-PIRANHA-Brand New Piranha Hydraulic Ironworker-P-65-SMP65-01
Starting At:
$31,995.00
Finance as low as $656.22 Per Mo.*
Stock No:#SMP65
Manufacturer: PIRANHA
Capacity: 65 Tons
Category: Ironworkers
Condition: New
Video Icon

New-Geka-Brand New Geka Dual Cylinder Hydraulic Ironworker-HYDRACROP 55S-SMHYDRACROP55S-01
Starting At:
$23,450.00
Stock No:#SMHYDRACROP55S
Manufacturer: Geka
Capacity: 60 Tons
Category: Ironworkers
Condition: New
New-Geka-Brand New Geka Puma Series Hydraulic Ironworker with 5 Power Settings-PUMA 55SD-SMPUMA55SD-01
Call For Price
Stock No:#SMPUMA55SD
Manufacturer: Geka
Capacity: 60 Tons
Category: Ironworkers
Condition: New
New-Geka-Brand New Geka Dual Cylinder Hydraulic (Deep Throat) Ironworker-HYDRACROP 55SD-SMHYDRACROP55SD-01
Starting At:
$27,450.00
Finance as low as $563.00 Per Mo.*
Stock No:#SMHYDRACROP55SD
Manufacturer: Geka
Capacity: 60 Tons
Category: Ironworkers
Condition: New
New-Geka-Brand New Geka Puma Series Hydraulic Ironworker with 5 Power Settings -PUMA 55S-SMPUMA55S-01
Call For Price
Stock No:#SMPUMA55S
Manufacturer: Geka
Capacity: 60 Tons
Category: Ironworkers
Condition: New
New-Geka-Brand New Geka Dual Cylinder Hydraulic (Deep Throat) Ironworker with Bending Station-BENDICROP 60SD-SMBENDICROP60SD-01
Starting At:
$30,850.00
Finance as low as $632.73 Per Mo.*
Stock No:#SMBENDICROP60SD
Manufacturer: Geka
Capacity: 60 Tons
Category: Ironworkers
Condition: New
New-Geka-Brand New Geka Dual Cylinder Hydraulic Ironworker with Bending Station-BENDICROP 60S-SMBENDICROP60S-01
Call For Price
Stock No:#SMBENDICROP60S
Manufacturer: Geka
Capacity: 60 Tons
Category: Ironworkers
Condition: New
New-Baileigh-Brand New Baileigh 62 Ton 5 Station Ironworker-SW-623-SMSW623-01
Starting At:
$23,409.00
Stock No:#SMSW623
Manufacturer: Baileigh
Capacity: 62 Tons
Category: Ironworkers
Condition: New
Video Icon
New-Baileigh-Brand New Baileigh 62 Ton 5 Station Ironworker-SW-621-SMSW621-01
$24,829.00
Stock No:#SMSW621
Manufacturer: Baileigh
Capacity: 62 Tons
Category: Ironworkers
Condition: New
New-U.S. Industrial-Brand New U.S. Industrial Hydraulic Ironworker with Dual Operator Stations-USHI-66T-DO-XT-SMUSHI66TDOXT-01
$22,990.00
Stock No:#SMUSHI66TDOXT
Manufacturer: U.S. Industrial
Capacity: 66 Tons
Category: Ironworkers
Condition: New
New-U.S. Industrial-Brand New U.S. Industrial Hydraulic Ironworker with Dual Operator Stations-USHI-66T-DO-SMUSHI66TDO-01
Call For Price
Stock No:#SMUSHI66TDO
Manufacturer: U.S. Industrial
Capacity: 66 Tons
Category: Ironworkers
Condition: New

Used Machines

Used-Scotchman-Used Scotchman Ironworker (LOW HOURS FROM DEMO TRUCK)-5014TM-CD5373-01
$14,290.00
Stock No:#CD5373
Manufacturer: Scotchman
Capacity: 50 Tons
Category: Ironworkers
Condition: Used
Used-Mubea-Used Mubea Mechanical Ironworker-KBL-1/2-A7048-01
$8,500.00
Stock No:#A7048
Manufacturer: Mubea
Capacity: 55 Tons
Category: Ironworkers
Condition: Used
Used-Geka-Used Geka Hydraulic Dual Operation Ironworker Heavy Duty Fabricator (Over $3,500 in new parts!)-Hyd 100-A7328-01
$29,500.00
Finance as low as $605.05 Per Mo.*
Stock No:#A7328
Manufacturer: Geka
Capacity: 100 Tons
Category: Ironworkers
Condition: Used
Used-MARVEL-Used Spartan/Marvel Hydraulic Ironworker, Dual Operation HEAVY DUTY Machine-IW135DX-P1064-01
$43,500.00
Finance as low as $892.19 Per Mo.*
Stock No:#P1064
Manufacturer: MARVEL
Capacity: 135 Tons
Category: Ironworkers
Condition: Used
Video Icon
Used-PIRANHA-Used Piranha Hydraulic Heavy Duty Dual Operation Ironworker -PII-140-A7336-01
$49,500.00
Finance as low as $1,015.25 Per Mo.*
Stock No:#A7336
Manufacturer: PIRANHA
Capacity: 140 Tons
Category: Ironworkers
Condition: Used
Video Icon
New Machines
Used Machines

SHIPPING

We're able to obtain brokers for Cross country and worldwide deliveries and only hire fully insured Flatbed Double Drops, Single Drops and Permitted Loads.

Make sure to get insurance, as this is not usually included. All machines come banded and strapped to a pallet unless instructed otherwise.
Crating is optional and comes at extra charge.
Loading docks or ramps are required! If you do not have one, inform the shipping company and there will more than likely be an extra charge.
* Indicates required fields

Sterling Machinery Exchange can help you with shipping worldwide. We ship daily and can get amazing shipping rates to make your purchase easier

Please let us know your information and we can find out the cost to your door!
Types of Trucking We Offer:

*TRUCKLOAD SHIPPING* The Full Truckload Advantage encompasses a comprehensive, end-to-end range of cargo transit and logistics solutions, backed by cutting-edge shipping analytic and monitoring technology.

  • Reduced Cost Per Unit
  • Shortened Transit Times
  • Fewer Damages
  • Dedicated Capacity
  • More Cargo Insurance
  • Thousands of Carriers to Choose From
  • Ail or Rubber Tire Option
  • Full Truckload
    • Van
    • Flatbed
    • Standard 48' Flatbed
    • Step Deck
    • Removable Goose Neck
    • Over-dimensional
    • Conestoga
    • Curtain Van
    • Refrigerated
    • Double-drop/Lowboy
  • Partial Truckload
    • Consolidated Truckloads
    • Volume LTL
    • Dedicated Partial Truckload
  • Specialized Services
    • Cross Dock
    • E-track/Logistical Trailers
    • Break Bulk
    • Short Term Warehousing
    • TWIC/TSA Services
    • White Glove
  • Intermodal
    • 48' and 53' Containers
    • 20', 40', and 45'
    • International Containers & High Cubes
    • Drayage (Port, Rail)
  • *LTL SHIPPING*

Our LTL shipping offers a best-in-class proprietary Transportation Management System tailored to the needs of LTL shippers. CARRIER RATE 2.0 provides an industry-leading, all-in-one solution for obtaining quotes, booking, and managing shipments.

    • Choose your carrier based on cost, transit time, and preference
    • Choose from industry leading carriers for your specific shipment
    • Schedule pickups with one click!
    • Track and manage your shipments online
  • QUOTE
    • Enter Origin & Destination Zip Codes
    • Select Package Type
    • Enter Pallet Count for Pallet Rate
    • Enter Class and Weight
    • Add Accessorials
  • *EXPEDITED SHIPPING*

We understand our transportation and logistics customers are looking for ways to save time and money. Air freight shipping means on-time delivery is a top priority. Our technology, relationships, and team of industry professionals provide an unparalleled ability to meet your most important shipping needs. Services Offerings

    • Next Flight Out (NFO’s)
    • Next Day by 1030
    • Exclusive Use Vehicles (E.U.V.’s)
    • Next Day by Noon
    • Local Pickup/Delivery
    • Next Day by 5pm
    • 2nd Day by 1030
    • 2nd Day by Noon
    • 2nd Day by 5pm
    • 3rd Day by 1030
    • 3rd Day by Noon
    • 3rd Day by 5pm
    • 3-5 Day Economy Ground
    • Trade Show Pickup/Delivery
    • Weekend Pickup/Delivery
    • Export/Import Freight
    • After Hours Pickup/Delivery
    • Project Freight/Distributions
    • Aircraft Charters
    • Ocean Services

Scotchman Industries, Inc. is a leading Manufacturer of Metal Fabrication Equipment, accessories and custom tools. From general to heavy-duty metal fabrication, to farm use, shipbuilding, technical schools, the U.S. military, Fortune 500 companies and the one-man hobby garage shop, Scotchman has been the preferred solution for our customers for nearly half a century.
