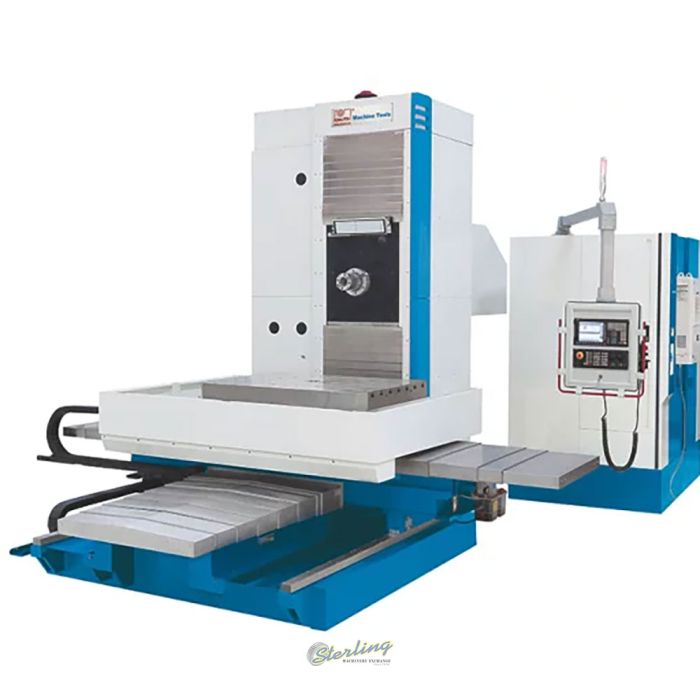

53" x 39" knuth BO T 110 CNC, New #SMBOT130LCNC

Knuth
Machine Type:
BORING MILLS
Manufacturer:
Knuth
Model:
BO T 110 CNC
Capacity:
53" x 39"
Condition:
New
Stock No:
#SMBOT130LCNC
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Drill Capacity 1.97"
Counterbore Diameter (max.) 10"
Table Set Up Area 53" X 39"
Table Load Capacity 11000 Lbs
Spindle Center-to-table Distance 0" - 47"
Number Of T-Slots 7 Positions
T-slots, Width 0.9 In
T-slots, Spacing 4.9 In
Travel X-axis 63"
Travel Y-axis 47"
Travel Z-axis 47"
Travel W-axis 22 In
Facing Slide Travel 5 In
Speed Range 12 Rpm - 1500 Rpm
Spindle Diameter 5"
Spindle Torque (max.) 1106 Ft.lb.
Spindle Mount BT 50
Facing Slide Speed 4 Rpm - 125 Rpm
Rapid Feed X-Axis 393.7 In/min
Rapid Feed Y-axis 393.7 In/min
Rapid Feed Z-Axis 393.7 In/min
Rapid Feed W-axis 197 in/min
Rapid Feed B-axis 0.22 In/min
Feed X-axis 0 In/min - 79 In/min
Feed Y-axis 0 In/min - 79 In/min
Feed Z-axis 0 In/min - 79 In/min
Feed W-axis 0 In/min - 79 In/min
Positioning Accuracy X-Axis 00157
Positioning Accuracy Y-Axis 00157
Positioning Accuracy W-Axis 00157
Positioning Accuracy Z-Axis 00157
Repeatability X-axis 0.00079 In
Repeatability Y-axis 0.00079 In
Repeatability T-axis 0.00079 In
Repeatability W-axis 0.00079 In
Work Table Rotation Accuracy 10 "
WEIGHT 11000 Lbs
Dimension (L x W x H) 237 In X 221 In X 142 In
Features
Siemens 828D control
Coolant System
Work Lamp
Electronic hand-wheel
Manual rotary table with 4-position indexing
RS-232 Interface
Central Lubrication
Operator Manual
OPTIONAL EQUIPMENT AND TOOLING
knuth - drilling tool holder for faceplate
Name: Knuth - Drilling Tool Holder for Faceplate
Price: Call For Price
Stock No:# 250606
ADD TO MACHINE QUOTE:

knuth - milling cutter holder for faceplate
Name: Knuth - Milling Cutter Holder for Faceplate
Price: Call For Price
Stock No:# 250607
ADD TO MACHINE QUOTE:

knuth - lathe bore head
Name: Knuth - Lathe Bore Head
Price: Call For Price
Stock No:# 250609
ADD TO MACHINE QUOTE:

* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
