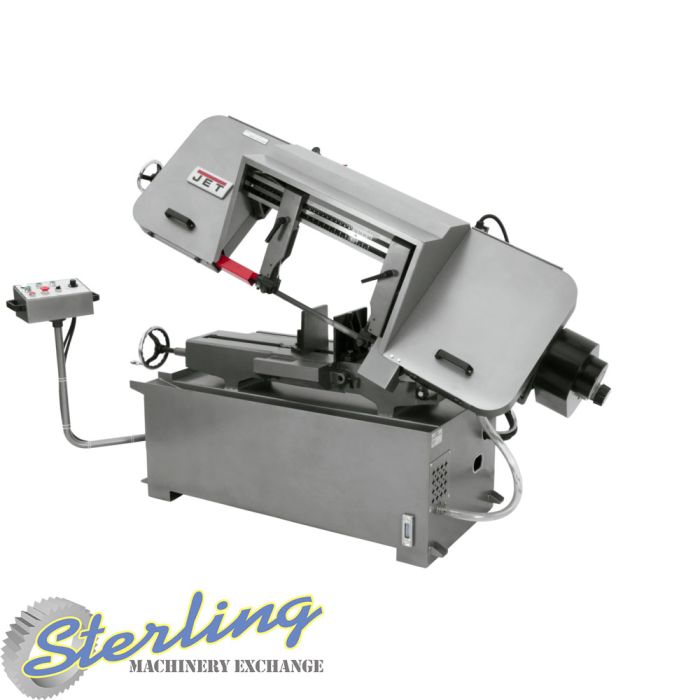

12" x 20" jet J-7060, New #SMJ7060
Cutting Capacity | 12" x 20" |
90 Degree Round | 12" |
45 Degree Round | 12" |
90 Degree Rectangle | 12" x 20" |
45 Degree Rectangle | 12" x 12" |
Vise Swivels | 45 Degrees |
Blade Speed | 82 - 262 SFPM |
Blade Wheel Diameter | 17" |
Blade Length | 156" |
Blade Size | 1" x 0.035 x 156" |
Drive | Variable Speed |
Horsepower | 3 HP |
Voltage | 230/460V ~ 3 Phase |
Dimensions (L x W x H) | 87" x 37-1/2" x 53" |
WEIGHT | 1456 lbs |
Additional Information
GOFORM Series Press Brake.
Key Benefits…
Portability
The Goform is the perfect solution for small parts, up to ¼” thick and less than 50 pounds. This machine can be easily moved with a fork truck or overhead crane and put into production without being anchored to the floor. The work height is adjustable so operators will be comfortable sitting or standing. With the Goform, you can adapt to changing plant layouts and work flows.
Durability
This 40 ton press brake is ready for long hours and multi-shift operation. The heavy-duty, stress-relieved frame was designed for full tonnage with minimal deflection. The drive system utilizes satellite roller screws that distribute load over a greater contact area than ball screws, reducing heat and wear and providing long life.
Fast Setup
The Goform can be configured to use the three major tooling styles; American, WT/New Standard and European. Express Clamp systems from Wilson Tool provide fast setup, self-seating, and low maintenance with leak-free mechanical clamps.
The Express Die Holder uses a full-length clamp bar instead of multiple set screws allowing you to use segmented dies anywhere along the length of the bed. European1V and 2V die holders can be used directly on the bed, without the need for a filler block.
Versatility
A small machine doesn’t have to have limited stroke and open height. The GoForm is equipped with a 10” stroke and 17” open height for jobs requiring tall tools and adapters. The backgage is a precision six axis backgage with flip up gage fingers. A six axis backgage is the ideal solution for both basic and complex part shapes.
Accuracy
High resolution incremental encoders assure exceptional ram repeatability for accurate forming of small parts. The long ram guides and low friction slide liners produce smooth ram motion with minimal maintenance.
Wedge height adjustments in the die holder provide a simple method to maintain bed-to-ram parallelism to form consistent bend angles in long parts.
Easy To Use
Cincinnati’s PC-based control with a large touchscreen display helps the operator setup jobs quickly with consistent results. Pre-loaded tool files simplify programming and improve first bend accuracy. A Job Setup screen displays tool names and tool locations and contains a notepad for additional instructions. Photos, drawings and video files can be attached when visual instructions are needed. 3D views of the bend sequence reduce part handling errors. Programs can be created on the control or offline with Cincinnati’s Bend Simulation Module.
HMI Operator Control Features
Industrial PC-based
Windows Embedded operating system
21.5” flat panel color display
Touchscreen operator interface
Solid State hard drive
USB convenience outlets
Ethernet convenience outlet
Inch or Metric unit display
English / Spanish language display
Graphical Tool Library
Pre-loaded Wilson and Wila tool files
Automatic tool load tonnage calculation
Tool selection
Tool segment length auto calculation
Quick Bend mode
CAD functions
Part Design by cross section or flat pattern
Flat blank size calculation
Manual Bend Sequencing
Part Orientation Guide
Setup Notes field
Print setup notes and program
Convert utility for programs
Batch program operation
Spreadsheet display and edit of program steps
Management and Diagnostic Features
Password control-Operator, Manager, Administrator
Machine strokes
Parts counter
Batch counter
Power on time
Total cycle time
Main drive on time
Parts per minute
Cycle time per part
Maintenance messages
Diagnostic Display Information
Backup and Restore Wizard
Web enabled machine monitoring
Email notification of machine faults
Operator adjustable ram control inputs:
Multiple Step and Repeat
Forming modes (Angle, DTC, Tonnage, Position, Absolute)
Angle Correction Dialog
Ram Opening
Guard Mute Position
Forming and return speeds
Tool selection for each step
Speed change position (up and down)
Ram tilt +.200” total end-to-end
Dwell time at bottom of stroke (limited)
Up and down stroke stops (ON / OFF)
Material Clamp: Pause / Stop (ON / OFF)
Tonnage reversal auto calculation
Operator adjustable gage control inputs:
Flange dimension
Gage allowance (auto calculation or manual input)
Retract distance
Gage Pause time
Incremental gage move
Advanced Flange Correction
Z-axis position auto calculation
Cincinnati Bend Simulation Module control and offline
Operator Controls
Operator controls ON / OFF Key switch
One (1) two-hand button operator station for “SETUP”
or “STROKE” mode
Two footswitches for “STROKE” mode
One mounted on footrest
One on cable
Hand/Foot Sequence mode of operation
Ram Stroke Mode Selector (OFF, SETUP, STROKE)
Ram Cycle Mode Selector (SINGLE STEP and AUTO
SEQUENCE)
Ram Up button
Emergency Stop button
Red and green ram direction indicators
Machine Features
Non-metallic liners for ram guiding surfaces
Screw Leveling Feet with adjustable working height
Welded, stress relieved frame
Electro-mechanical drives with satellite roller screws
Air Conditioned Electrical Cabinet
Automatic leveling control system with dual linear
encoders .00002” resolution
Dual Strain Gages for measuring tonnage
Wilson American Express Clamp for ½” tongue tools
Bed Top: 60mm wide, full length die slot, front/back
screws on 100mm centers to align die holder
English rule on upper clamp
LED work lights front and rear
Electrically interlocked rear guard
Electrically interlocked end guards
Machine Color –Combination gray, red and black
One Operation, Safety and Maintenance Manual (Red)
One Operation and Safety Manual (Blue)
Capacity Plate for CSA
460/3/60 Electrics
Backgage Features
Six Axis Backgage X1,X2, R1,R2, Z1,Z2
Two gage fingers, two solid tips, two step tips
Warranty/Training
Press Brake Parts – 2 years
Control – 1 Year
Backgage Parts – 1 Year
Service Labor - 1 Year
Operator Training at Cincinnati – two slots
Safety
All goods in this proposal will conform to applicable machinery construction standards
of the Federal Occupational Safety & Health Act of 1970. In the event of changes in standards between the date of this proposal and order acknowledgment date, CINCINNATI INCORPORATED will quote the additional cost required to meet the intervening standards. No warranty of compliance with State or local standards is made in the absence of specific reference thereto in our quotation.
This CINCINNATI INCORPORATED press brake complies with the construction requirements of the current ANSI B11.3 safety standard. Each new CINCINNATI press brake is so identified by a compliance tag upon machine completion at our factory.
Each machine is furnished with an Operation, Safety and Maintenance Manual, a copy of ANSI B11.3 safety standards to assist in the proper care and use of your machine, and safeguarding selection book PI-50686 for information on point-of-operation protection (see attached).
Which Cincinnati Press Brake Model Is Best for You??
Cincinnati BASEFORM CNC Press Brake vs. PROFORM CNC Press Brake
Cincinnati's Newest brake and increasingly the fastest growning brake on the market today is the Cincinnati Baseform CNC Press Brake. This brake is has a very competitive price structure as compared to other manufacturers in the New CNC Press Brake Marketplace such as Accurpress, JMT, Trumpf, Amada, Pacific and other similar high quality CNC Machines. It has accuracy repeatability of +-.0004". Baseform is a production machine for Cincinnati with more limited options than a Proform, Maxform, Autoform or Goform. It has a 3 axis CNC Cincinnati Touchscreen control which is the same control across the board on the Cincinnati CNC Press Brake line. This makes it easier to step into other Cincinnati press brakes as your machinery needs increase to a machine with larger stroke or other CNC Capabilities. Another great option for your older Cincinnati brakes is you can upgrade your existing 1990's CBII, FMII or AF to the same control and have 100% commonality of controls including tool libraries and program files
Cincinnati PROFORM+ CNC Press Brake vs. MAXFORM CNC Press Brake
If you are looking for even more capabilities by way of Ultra High Speed as well as Accuracy +-.0002", please inquire about a MaxForm Cincinnati Press Brake.
Cincinnati MaxForm Press Brakes can be customized to accomodate larger stroke, Auto Crowning, Hydraulic Clamping, Standard DTC "Dynamic Thickness Compensation"- Allows the brake to automatically on the fly measure the thickness of the material as it is bending to calculate the changes in reversal for air bending, Heavy Duty Backgauges and more! It comes standard with a 5-axis gauge with optional 6-axis linear motor drive gauge allowing for the fastest CNC system on the market!
Cincinnati AUTOFORM+ CNC Press Brakes vs. MAXFORM CNC Press Brake
For the most customizable CNC press brake made by Cincinnati Inc. you should look at a Cincinnati AutoForm. The Cincinnati AutoForm+ is absolutley customizable. Cincinnati Inc. can install Special Horns on the machine for the aircraft industry forming or other special forming operations. Accuracy is +-.0002" repeatability on the MaxForm opposed to the Autoform+ that has +-.0004" repeatability. How long of a Stroke do you need? Just let us know and Cincinnati can build to order. If you are looking for a Tandem Press Brake for long pieces Autoform+ is your best choice!
Cincinnati Goform CNC High Accuracy, Small Parts Electric Press Brake Machine
This new technology uses servos to power the ram. This allows for a super high accuracy 0.00002" and repeatablilty day in and day out. It is completely electric and when it is between moves it is silent. The GoForm is the perfect solution for small parts up to 1/4" thick and weigh less than 50 lbs. It is a small low profile machine that is built ergonomically for a user to comfortably sit or stand at the machine.
The Cincinnati GoForm Electric Press Brake has a electro-mechanical drive with satellite roller screws. This machine also has one of the largest strokes available with a 10" stroke and 17" open height compared to only 4" with other competitors brakes.
Tooling, Tooling, Tooling, one of the best things about this brake is its adaptability of the tooling you are able to run with it. US Tooling, US Self Seating, Wila, Trumpf and European is all accptable tooling for the GoForm.
The backgauge is a TRUE 6-axis gauge that moves at a incredable speed of 3,000 IPM. The GoForm is also designed to be movable using a forklift to allow for easy work flow.
With such a diverse line of CNC Press brakes and equipment it is no wonder why Cincinnati inc. is still the leading manufactuer in the USA and has been for decades. Don't miss out on a chance to buy the best machines on the market and call Sterling Machinery Exchange today.
