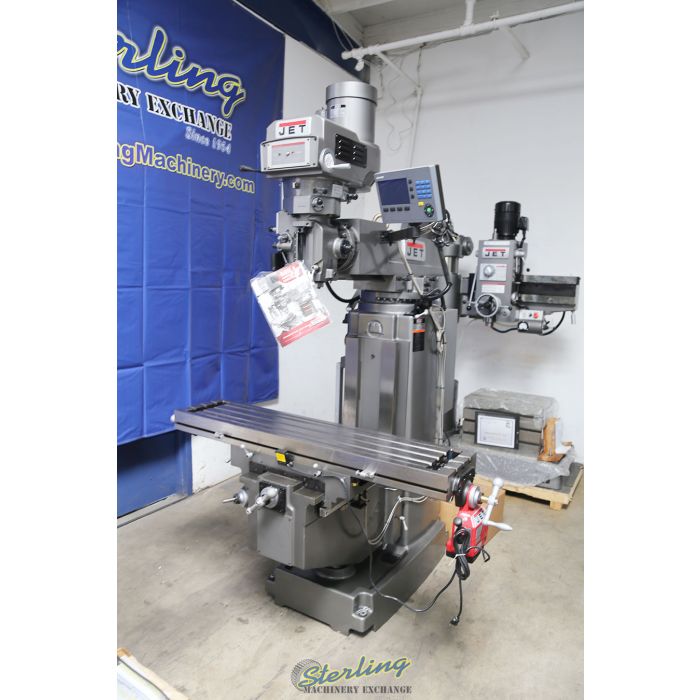

12" X 54" BRAND NEW JET INDUSTRIAL VERTICAL MILLING MACHINE (HEAVY DUTY), MDL. JTM-1254VS, CERTIFIED MEEHANITE? CASTINGS, PRECISION BORED AND HONED MILLING HEAD, LARGE DIAMETER QUILL IS CHROMED, HIGH PRECISION CLASS 7 SPINDLE BEARINGS, CHROME PLATED MOTOR #SMJTM1254VS12" X 54" BRAND NEW JET INDUSTRIAL VERTICAL MILLING MACHINE (HEAVY DUTY), MDL. JTM-1254VS, CERTIFIED MEEHANITE® CASTINGS, PRECISION BORED AND HONED MILLING HEAD, LARGE DIAMETER QUILL IS CHROMED, HIGH PRECISION CLASS 7 SPINDLE BEARINGS, CHROME PLATED MOTOR SHAFT WITH LOWER BEARING SUPPORT, SPINDLE HEAD IS INTERNALLY COOLED, HEAVY DUTY SPLINED MOTOR DRIVE, ONE PIECE QUILL PINION AND SHAFT, THREE STAGE POWER DOWNFEED WITH AUTOMATIC STOP, HEAVY DUTY SPINDLE BRAKE, LOCKS ON ALL MOVABLE SURFACES, PRECISION HARDENED AND GROUND WAYS AND TABLE, ADJUSTABLE GIBS THROUGHOUT, INTERNAL COOLANT TANK BUILT INTO CASTING BASE FOR USE WITH COOLANT SYSTEM (COOLANT PUMP NOT INCLUDED), TOLERANCE TEST SHEET INCLUDED, ONE SHOT LUBRICATION SYSTEM, WAY COVERS, DRAW BAR, TOOL BOX WITH TOOLS, #SMJTM1254VS To Buy or sell new or used mills for sale please visit https://www.Sterlingmachinery.com https://www.sterlingmachinery.com/mills.php Call Today! 626-444-0311 To Sell Your Vertical Mill, Horizontal Mills, CNC Milling Machines, CNC Machining centers Machinery visit https://www.sterlingmachinery.com/sell_machinery.php Sterling Machinery, Dealer, Used, New, Metal Working Machines, Machine Tools, Mills, Bridgeport, acra, Birmingham, Vertical Mill, milling, dealers, fabrication, tool, supply, suppliers, sell, sale, metalworking, buy, chip, new, used
ChineseVideo
Fresadora vertical industrial Jet a estrenar de 12Fresadora vertical industrial Jet a estrenar de 12 "x 54" (servicio pesado), Mdl. JTM-1254VS, fundición Meehanite® certificada, cabezal de fresado perforado y pulido de precisión, canilla de gran diámetro cromado, cojinetes de husillo de clase 7 de alta precisión, eje de motor cromado con soporte de cojinete inferior, cabezal de husillo refrigerado internamente, accionamiento de motor estriado de alta resistencia, Piñón y eje de canilla de una pieza, alimentación descendente de potencia de tres etapas con parada automática, freno de husillo de servicio pesado, bloqueos en todas las superficies móviles, guías y mesa endurecidas con precisión y rectificadas, guías ajustables en todas partes, tanque de refrigerante interno integrado en la base de fundición para usar con sistema de refrigerante (bomba de refrigerante no incluida), hoja de prueba de tolerancia incluida, sistema de lubricación One Shot, tapas de paso, barra de tracción, caja de herramientas con herramientas, # SMJTM1254VS To Buy or sell new or used mills for sale please visit https://www.Sterlingmachinery.com https://www.sterlingmachinery.com/mills.php Call Today! 626-444-0311 To Sell Your Vertical Mill, Horizontal Mills, CNC Milling Machines, CNC Machining centers Machinery visit https://www.sterlingmachinery.com/sell_machinery.php Sterling Machinery, Dealer, Used, New, Metal Working Machines, Machine Tools, Mills, Bridgeport, acra, Birmingham, Vertical Mill, milling, dealers, fabrication, tool, supply, suppliers, sell, sale, metalworking, buy, chip, new, used
DETAILED SPECIFICATION
Table Size (L x W) (In.)
12" x 54"
Style (Type)
Variable Speed R8
Number of Axis
3 (Knee)
PowerfeedX
X-Axis
Spindle Taper (In. x TPI)
X-Axis
Quill Diameter (In.)
4-1/8"
Range of Spindle Speeds (RPM)
80 - 3,800 RPM
Quill Down Feed Rates (IPR)
.0015–.003–.008
Spindle Travel (In.)
5
Head Movement (Deg.)
90°R & L
Max Distance Spindle to Table (In.)
23
Distance Spindle to Column (Max.) (In.)
27-3/4"
Distance Spindle to Column (Min.) (In.)
7 1/2"
Collet Capacity
1/8 - 1
Table Longitudinal Travel (In.)
33-7/8"
Table Longitudinal Travel With Powerfeed (In.)
28-1/4"
Table Cross Travel (In.)
15-1/3"
T-Slot Centers (In.)
2-1/2"
Work Table Weight Capacity (Lbs.)
925 LBS
Travel of Knee (In.)
19-1/4"
Travel of Ram (In.)
25"
Motor (HP)
5HP, 230/460V, 3Ph
Prewired (V.)
230V, **SURCHARGE APPLIES FOR 460V RE-WIRE
Overall Dimensions (L x W x H) (In.)
92-1/8 x 79-7/8 x 104-1/4
Weight (Lbs.)
3969LBS
Features
One Shot Lubrication System
Certified Meehanite® Castings
Precision Bored And Honed Milling Head
Large Diameter Quill Is Chromed
High Precision Class 7 Spindle Bearings
Chrome Plated Motor Shaft With Lower Bearing Support
Spindle Head Is Internally Cooled
Heavy Duty Splined Motor Drive
One Piece Quill Pinion And Shaft
Three Stage Power Downfeed With Automatic Stop
Way Covers
Heavy Duty Spindle Brake
Locks On All Movable Surfaces
Precision Hardened And Ground Ways And Table
Adjustable Gibs Throughout
Internal Coolant Tank Built Into Casting Base For Use With Coolant System (coolant Pump Not Included)
Tolerance Test Sheet Included
Draw Bar
Tool Box With Tools
OPTIONAL EQUIPMENT AND TOOLING
Name: Jet- 1254VS X Axis Table Feed and 2 Axis DRO- Digital Readout System PACKAGE
Price: Call For Price
Stock No:# JET1254VSDROXFEED
ADD TO MACHINE QUOTE:
REMOVE MACHINE FROM QUOTE:
Additional Information
APPLICATIONS:
Deep draw work
Bending
Embossing
Coining
Forming
Blanking
Punching
OBL Series
STANDARD FEATURES
Large double-acting cylinders
Generous window openings
Six point square-type gibbing
Modular “stack” cartridge valve design
Power units
Pendant-mounted, PLC interface control
* Temporary specifications subject to verification.
All quotations subject to prior sale.
New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
We're able to obtain brokers for Cross country and worldwide deliveries and only hire fully insured Flatbed Double Drops, Single Drops and Permitted Loads.
Make sure to get insurance, as this is not usually included. All machines come banded and strapped to a pallet unless instructed otherwise. Crating is optional and comes at extra charge. Loading docks or ramps are required! If you do not have one, inform the shipping company and there will more than likely be an extra charge.
