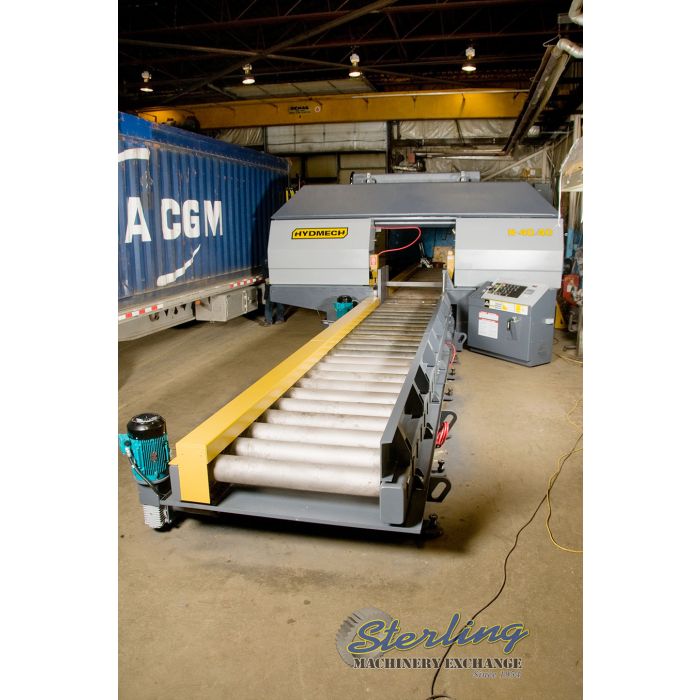

40" x 40" Brand New Hydmech Dual Post Horizontal Bandsaw, Mdl. H-40/40, One Piece Design – No Alignment Necessary, 8’ of Powered Rollers Built Into The Bed Of The Machine, Cast Iron Guide Arms. The Idler Side Guide Arm Is Mechanically Connected to The Front Vise Moveable Jaw For Proper Guide Arm Spacing At All Times., 20 HP VFD. True Direct Blade Drive – No belts/Pulleys, Full Capacity Hydraulic Vises, Cast Iron Band Wheels, User Friendly Operator Control, Replaceable Blade Brush, Robust Steel Base, Automatic Chip Removal Auger, Easy Access Electrical Panel and Hydraulics, Blade Breakage Switch, Hydraulic Band Tensioning with Digital Readout, 5 HP Hydraulic Pump Provides System Pressure, Replaceable Carbide Guide Inserts, Hardened, Replaceable Wear Plates, Safety Door Interlocks, Flood Coolant with Wash Down Hose, Work Light, Laser Light, #SMH4040

Stock No:
#SMH4040
Manufacturer:
HYDMECH
Model:
H-40/40
Capacity:
40" x 40"
Condition:
New
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Capacity
40" x 40"
90 Degree Rectangle
40" x 40"
90 Degree Round
40"
90 Degree Square
40"
Blade Size
3" x 37'
Blade Speed
45-225 SFM
Table Height
27"
Vise Control
Hydraulic
Hydraulic Tank Capacity
17 Gallons
Coolant Tank Capacity
27 Gallons
Horsepower
20 H.P.
Voltage
Various Available upon Request
Dimensions (W x L x H)
215" x 102" x 145"
WEIGHT
42,000 Lbs.
EQUIPPED WITH
One Piece Design – No Alignment Necessary
8’ Of Powered Rollers Built Into The Bed Of The Machine
Cast Iron Guide Arms. The Idler Side Guide Arm Is Mechanically Connected To The Front Vise Moveable Jaw For Proper Guide Arm Spacing At All Times.
Replaceable Blade Brush
20 HP VFD. True Direct Blade Drive – No Belts/Pulleys
Full Capacity Hydraulic Vises
Cast Iron Band Wheels
User Friendly Operator Control
Automatic Chip Removal Auger
Easy Access Electrical Panel And Hydraulics
Hydraulic Band Tensioning With Digital Readout
5 HP Hydraulic Pump Provides System Pressure
Robust Steel Base
Hardened, Replaceable Wear Plates
Work Light
Blade Breakage Switch
Replaceable Carbide Guide Inserts
Safety Door Interlocks
Laser Light
Flood Coolant With Wash Down Hose
* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
