14 ga. x 10' Brand New GMC Hydraulic Straight Apron Brake, Mdl. HSB-1014, Made In Taiwan, Assorted fingers, 26” manual back gauge with one side handwheel operation, Angle Set Up Dial, Hydraulic clamping system, Foot pedal control for hydraulic clamping & auto mode, #SMHSB1014

Stock No:
#SMHSB1014
Manufacturer:
GMC
Model:
HSB-1014
Capacity:
14 Ga. x 10'
Condition:
New

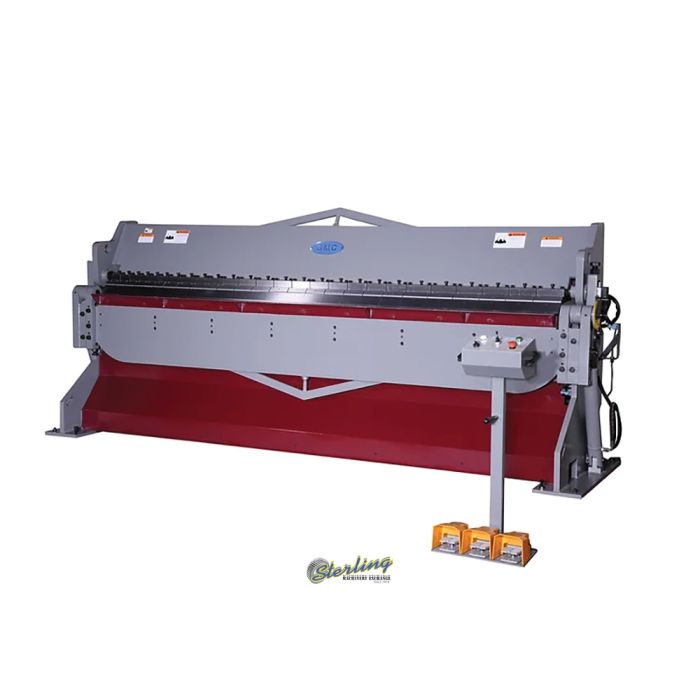

Brand New GMC Hydraulic Straight Apron Brake
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Maximum Bending Length
120"
Bending Capacity:
10’x 14Ga
Mild Steel(hot Roll), 60,000PSI
10’x 14Ga
Stainless Steel, Tensile 85,000PSI
10’x 14Ga
Soft Aluminum, Tensile 28,000PSI
10'1"
Hemming Max Thickness
135
Straight Finger Lenght
6"
Large Beam Opening
3"
Max. Box & Pan Depth With Optional Sort Of Fingers
26”
Manual Back Gauge
26”
Oil Tank Gal
17 Gal.
Hydraulic Oil Type
Shell #68 Or Equivalent
Main Motor
5 HP 3 Phase Prewired: 220VAC 20A Optional: 440VAC 10A
Weight (Approx)
6,850 Lbs.
Shipping Weight
6,950 Lbs.
Dimension
142" X 46" X 66"
Shipping Dimensions
153” X 41” X 67”
EQUIPPED WITH
Made In Taiwan
ISO 9001 Certified
Assorted fingers
26” manual back gauge with one side handwheel operation
Angle Set Up Dial
Hydraulic clamping system
Foot pedal control for hydraulic clamping & auto mode
Overload Protection
All Steel Construction
Disconnect Switch
OPTIONAL EQUIPMENT AND TOOLING
gmc - safety fence for enclosure of the front side of the machine (call for information/pricing)
Name: GMC - Safety Fence for Enclosure of the Front Side of the Machine (call for information/pricing)
Price: Call For Price
Stock No:# GMC6
ADD TO MACHINE QUOTE:

gmc - one piece straight finger - extra (instead of assorted fingers) (call for information/pricing)
Name: GMC - One Piece Straight Finger - Extra (instead of assorted fingers) (call for information/pricing)
Price: Call For Price
Stock No:# GMC7
ADD TO MACHINE QUOTE:

* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
