3/16" x 4' gmc PBR-04316E, New #SMPBR04316E

Machine Type:
ROLLS
Manufacturer:
GMC
Model:
PBR-04316E
Capacity:
3/16" x 4'
Condition:
New
Stock No:
#SMPBR04316E

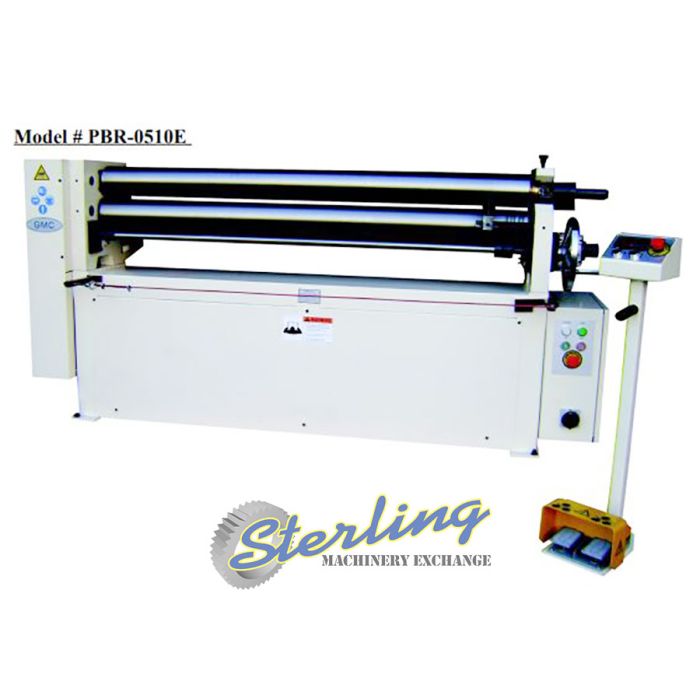

Brand New GMC Heavy Duty Power Roll Bender
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Roll Capacity .
Mild Steel 3/16" x 4'-3"
Stainless Steel 11 Ga. x 4'-3"
Roll Diameter 4-3/4"
Minimum Bending Diameter 6"
Pre-Bend 0.16"
Roll Speed 20 FPM
Roll Opening 1/2"
Horsepower 3 HP
Voltage 220/440V ~ 3 Phase
Dimensions (L x W x H) 78" x 30" x 52"
WEIGHT 2750 lbs
Features
Made In Taiwan
ISO 9001 Certified
Easy Swing-Out Top Roller
Heavy Duty Casting Frame
Adjustable Cone Attachment
Grooves On Rollers - 3/8", 1/2", 5/8"
Heavy Duty All Steel Welded Construction
Safety Line All Around Machine For Emergency Stop
One Wheel One-Side Operated For Bending Roll
Motorized Bending Roll Up/Down With Push Button & Digital Display
Safety Type Forward/Reverse Foot Pedal
Operator & Parts Manual
All Rolls Run Forward & Reverse
One Year Industrial Warranty For Parts
OPTIONAL EQUIPMENT AND TOOLING
gmc - safety fence for enclosure of the back side of machine (call for information/pricing)
Name: GMC - Safety Fence for Enclosure of the Back Side of Machine (call for information/pricing)
Price: Call For Price
Stock No:# GMC1
ADD TO MACHINE QUOTE:

gmc - orange color on front cover (call for information/pricing)
Name: GMC - Orange Color on Front Cover (call for information/pricing)
Price: Call For Price
Stock No:# GMC5
ADD TO MACHINE QUOTE:

* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
