9" x 16" Brand New Doall (SWIVEL HEAD) Miter Cutting HEAVY DUTY Metal Bandsaw, Mdl. 400S, Spring Loaded Blade Tension Handwheel, 45 Degree Swiveling Head, Recirculating Coolant System, Spring Loaded Solid Carbide Saw Guides, Rapid Head Approach, Band Door Interlocks For Safety, #SM400S

DoAll
Stock No:
#SM400S
Manufacturer:
DoAll
Model:
400S
Capacity:
9" x 16"
Condition:
New

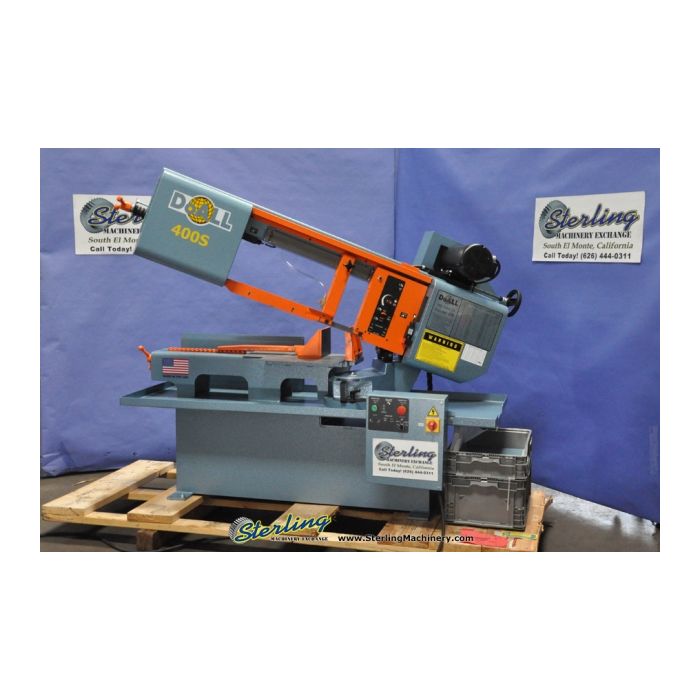

Brand New Doall (SWIVEL HEAD) Miter Cutting Heavy Duty Metal Bandsaw
Print a Quick Quote!
View Gallery
EnglishVideo
10\" x 16\" Brand New Doall Swivel Head Miter Cutting Metal Bandsaw, Mdl. 400S, Spring Loaded Blade Tension Handwheel, 45 Degree Swiveling Head, Coolant System, Spring Loaded Solid Carbide Saw Guides, Rapid Head Approach, Band Door Interlocks For Safety, Po 10" x 16" Brand New Doall Swivel Head Miter Cutting Metal Bandsaw, Mdl. 400S, Spring Loaded Blade Tension Handwheel, 45 Degree Swiveling Head, Coolant System, Spring Loaded Solid Carbide Saw Guides, Rapid Head Approach, Band Door Interlocks For Safety, Powered Band Brush, Discharge Tray, Replaceable Steel Wear Plates, One Bi-Metal Saw Blade To view other New and Used Doall, Acra, Hydmech Vertical Bandsaws for sale please visit http://www.SterlingMachinery.com Call Today 626-444-0311 http://www.SterlingMachinery.com/saws.php
DETAILED SPECIFICATION
Operation Type
Manual
90 Degree Rectangle
16" x 9"
90 Degree Round
10-3/4"
45 Degree Rectangle
10-3/4" x 9"
45 Degree Round
10-3/4"
Blade Size x Length
1" x 0.035" x 158"
Blade Speeds
105 - 275 FPM
Wheel Diameter
14.5"
Material Pass Line Height
29-1/8"
Table Capacity
1800 LBS
Coolant System
6 Gallons
Horsepower
2 H.P.
Voltage
208V, 230V, 460V, 575V ~ 3 Phase
Dimensions (L x W x H)
116" X 48" X 63"
Weight (Lbs.)
1,650 LBS.
EQUIPPED WITH
Spring Loaded Blade Tension Handwheel
Discharge Tray
45 Degree Swiveling Head
Spring Loaded Solid Carbide Saw Guides
One Bi-Metal Saw Blade
Rapid Head Approach
Band Door Interlocks For Safety
Powered Band Brush
Replaceable Steel Wear Plates
Recirculating Coolant System
Saw Blade Guards
Integrated Fork Lift Pockets
Instruction & Parts On CD

DISTRIBUTOR OF THE YEAR AWARD

OPTIONAL EQUIPMENT AND TOOLING
doall- pneumatic head raise w/ adjustable height stop 400 series
Name: DoAll- Pneumatic Head Raise W/ Adjustable Height Stop 400 Series
Price: Call For Price
Stock No:# CMI299529
ADD TO MACHINE QUOTE:

doall- pneumatic vise 400 series
Name: DoAll- Pneumatic Vise 400 Series
Price: Call For Price
Stock No:# CMI299528
ADD TO MACHINE QUOTE:

doall- full cycle attachment package (includes pneumatic head raise with adjustable stop and pneumatic vise)
Name: DoAll- Full Cycle Attachment Package (Includes Pneumatic Head Raise With Adjustable Stop and Pneumatic Vise)
Price: Call For Price
Stock No:# CMI1008819
ADD TO MACHINE QUOTE:

doall- adjustable work stop 18
Name: DoAll- Adjustable Work Stop 18" With 24" Discharge Table 400 Series
Price: Call For Price
Stock No:# CMI224531/CMI1009399
ADD TO MACHINE QUOTE:

doall- flushing hose attachment 400 series
Name: DoAll- Flushing Hose Attachment 400 Series
Price: Call For Price
Stock No:# CMI178639
ADD TO MACHINE QUOTE:

doall- band mist lubricator, 400 series
Name: DoAll- Band Mist Lubricator, 400 Series
Price: Call For Price
Stock No:# CMI214936
ADD TO MACHINE QUOTE:

doall- laser line generator, 400 series
Name: DoAll- Laser Line Generator, 400 Series
Price: Call For Price
Stock No:# CMI1010708
ADD TO MACHINE QUOTE:

doall- worklight 400 series
Name: DoAll- Worklight 400 Series
Price: Call For Price
Stock No:# CMI220790
ADD TO MACHINE QUOTE:

doall- gravity roller conveyor (medium duty) 5' x 18
Name: DoAll- Gravity Roller Conveyor (Medium Duty) 5' x 18" Wide
Price: Call For Price
Stock No:# CMI207709
ADD TO MACHINE QUOTE:

doall- gravity roller conveyor (medium duty), 10' x 18
Name: DoAll- Gravity Roller Conveyor (Medium Duty), 10' x 18" Wide, 400 Series
Price: Call For Price
Stock No:# CMI207710
ADD TO MACHINE QUOTE:

doall - conveyor rollers
Name: DoAll - Conveyor Rollers
Price: Call For Price
Stock No:# CMI202786
ADD TO MACHINE QUOTE:

doall - vertical guide rollers
Name: DoAll - Vertical Guide Rollers
Price: Call For Price
Stock No:# CMI517268
ADD TO MACHINE QUOTE:

doall - copy of instruction and parts manuals on cd
Name: DoAll - Copy of Instruction and Parts Manuals on CD
Price: Call For Price
Stock No:# 299998
ADD TO MACHINE QUOTE:

doall - magnetic wand chip remover
Name: DoAll - Magnetic Wand Chip Remover
Price: Call For Price
Stock No:# 226028
ADD TO MACHINE QUOTE:

doall - boxing for overseas shipment (machine only) (call for information/pricing)
Name: DoAll - Boxing for Overseas Shipment (machine only) (call for information/pricing)
Price: Call For Price
Stock No:# CMIOVERSEASSHIPPING
ADD TO MACHINE QUOTE:

doall - doall saw blade (13'-2
Name: DoAll - DoAll Saw Blade (13'-2" x 1" x 0.035" x 5-8T Silencer Plus) (call for information/pricing)
Price: Call For Price
Stock No:# 333215158
ADD TO MACHINE QUOTE:

Additional Information

 The DoAll 400S Swivel Head Metal Cutting Horizontal Bandsaw: A Superior Choice

When it comes to metal cutting bandsaws, the DoAll 400S swivel head metal cutting horizontal bandsaw stands out as a superior choice. With its exceptional features, advanced technology, and robust construction, this machine offers numerous advantages over other bandsaws in the market. In this article, we will explore five key reasons why the DoAll 400S is considered a superior bandsaw for metal cutting applications.

  1. Versatility and Precision:

    The DoAll 400S swivel head bandsaw offers exceptional versatility, allowing users to make precise cuts at various angles. Its swivel head feature enables the blade to rotate, enabling precise miter cutting. This versatility is essential for industries such as fabrication, metalworking, and manufacturing, where the ability to cut materials at different angles is crucial. The precise cuts provided by the DoAll 400S ensure minimal material wastage and enhance overall productivity.

  2. Cutting Capacity and Power:
    One of the standout features of the DoAll 400S is its impressive cutting capacity. With a robust construction and a powerful motor, it can effortlessly handle a wide range of materials, including solid steel, pipes, tubes, and profiles. Its horizontal configuration enables the cutting of larger workpieces, making it suitable for heavy-duty applications. The DoAll 400S ensures efficient and reliable cutting performance, even when dealing with challenging materials.

  3. Advanced Control and Safety Features: The DoAll 400S comes equipped with advanced control and safety features, further solidifying its status as a superior bandsaw. The machine is equipped with intuitive controls that enable operators to easily adjust cutting parameters, such as blade speed and feed rate, ensuring precise and efficient cutting operations. Additionally, the 400S incorporates safety features like automatic shutoff mechanisms, blade guards, and emergency stop buttons, ensuring the well-being of operators and minimizing the risk of accidents.

  4. Durability and Reliability: Built to withstand demanding industrial environments, the DoAll 400S boasts exceptional durability and reliability. Its solid construction, high-quality materials, and rigorous manufacturing processes ensure a long lifespan, reducing maintenance costs and downtime. This reliability is essential for businesses aiming to achieve continuous and uninterrupted production, ultimately enhancing overall operational efficiency.

  5. Enhanced Efficiency and Productivity: The DoAll 400S swivel head bandsaw combines all the aforementioned features to deliver enhanced efficiency and productivity. Its versatility, cutting capacity, advanced controls, and robust construction allow for faster and more precise cutting operations, resulting in increased output and reduced production time. The superior performance and reliability of the DoAll 400S enable businesses to meet their deadlines, achieve higher production volumes, and ultimately improve their bottom line.

Sterling Machinery Exchange has been selling Doall saws for decades.  They are definately a brand to look for when buying a horizontal bandsaw for the shop.  The DoAll 400S swivel head metal cutting horizontal bandsaw is undoubtedly a superior choice for metalworking applications. Its versatility, precision, cutting capacity, advanced features, durability, and enhanced efficiency make it an indispensable tool for industrial operations. Whether you're involved in fabrication, manufacturing, or metalworking, investing in the DoAll 400S ensures you have a reliable and high-performance bandsaw that can meet your diverse cutting needs and deliver exceptional results.

* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
