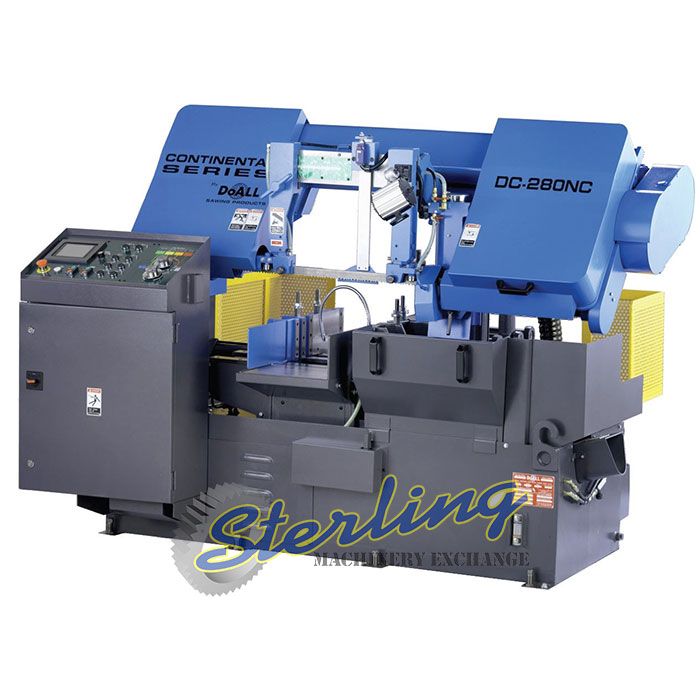

11" x 11" Brand New DoALL Continental Series Fully Automatic Horizontal Bandsaw, Mdl. DC-280NC, NC Control Panel: Touch Screen Control, 20 Job Presets, Multiple Language Capability, Trouble Shooting Prompts, Easy Operation, PLC Control for All Electric and Hydraulic Functions, Infinitely Variable Speed Controlled by VFD, Hydraulic Retractable Shuttle Vise Material Indexer, Rapid and Creep Speed Index Vise Control, High Efficiency Transmission, Multi-Step Full Stroke Vises with Split Front Vise and Variable Vise Pressure Control, Nesting Fixture for Bundle Cutting, Power Driven, Coolant Flushed, Blade Cleaning Wire Brush, Flushing Hose and Auxiliary Coolant Nozzles, Hydraulic Blade Tensions, Automatic Chip Conveyor, Blade Breakage/ Stall Motion Detector Shut Off Switch, Band Door Interlocks, One 6'-1/2" Conveyor, Set Up Tools and Tool Box, One DoAll Bi-Metal Saw Blade, Work Light, Complimentary DoAll Cutting Fluids Package, Instruction & Parts Manuals on CD, #SMDC280NC

DoAll
Stock No:
#SMDC280NC
Manufacturer:
DoAll
Model:
DC-280NC
Capacity:
11" x 11"
Condition:
New
Brand New DoALL Continental Series Fully Automatic Horizontal Bandsaw
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Operation Type
Fully Automatic
Round
11"
Rectangle
11-3/4" x 11"
Bundle Capacity Max.
9-3/4" x 4"
Bundle Capacity Min.
6-1/2" x 5/8"
Blade Speed
72 - 390 SFPM
Blade Size
1-1/4" x 0.042" x 151"
Material Pass Line Height
27-1/2"
Automatic Indexing Lengths:
Single
15.75"
Multiple
141.73"
Remnant Length
Single Piece (Non-Bundle)
Coolant Pump Horsepower
1/4 H.P.
Coolant Tank
20 Gallons
Hydraulic Pump Horsepower
1 H.P.
Hydraulic Tank
16 GAllons
Horsepower
5 H.P.
Voltage
230V ~ 3 Phase
WEIGHT
3900 lbs
EQUIPPED WITH
Work Light
NC Control Panel: Touch Screen Control, 20 Job Presets, Multiple Language Capability, Trouble Shooting Prompts, Easy Operation
PLC Control For All Electric And Hydraulic Functions
Infinitely Variable Speed Controlled By VFD
Nesting Fixture For Bundle Cutting
Hydraulic Retractable Shuttle Vise Material Indexer
Rapid And Creep Speed Index Vise Control
High Efficiency Transmission
Multi-Step Full Stroke Vises With Split Front Vise And Variable Vise Pressure Control
Instruction & Parts Manuals On CD
Power Driven, Coolant Flushed, Blade Cleaning Wire Brush
Flushing Hose And Auxiliary Coolant Nozzles
Hydraulic Blade Tensions
Band Door Interlocks
Automatic Chip Conveyor
Blade Breakage/ Stall Motion Detector Shut Off Switch
Complimentary DoAll Cutting Fluids Package
Set Up Tools And Tool Box
One DoAll Bi-Metal Saw Blade

DISTRIBUTOR OF THE YEAR AWARD

OPTIONAL EQUIPMENT AND TOOLING
doall - 10' conveyor
Name: DoAll - 10' Conveyor
Price: Call For Price
Stock No:# CMI224897
ADD TO MACHINE QUOTE:

doall - out of square detection
Name: DoAll - Out of Square Detection
Price: Call For Price
Stock No:# CMIA0302SN
ADD TO MACHINE QUOTE:

doall - magnetic chip remover
Name: DoAll - Magnetic Chip Remover
Price: Call For Price
Stock No:# CMI226028
ADD TO MACHINE QUOTE:

doall - copy of instruction and parts manuals on cd
Name: DoAll - Copy of Instruction and Parts Manuals on CD
Price: Call For Price
Stock No:# 299998
ADD TO MACHINE QUOTE:

doall - 6.5' gravity conveyor (call for information/pricing)
Name: DoAll - 6.5' Gravity Conveyor (call for information/pricing)
Price: Call For Price
Stock No:# 228016
ADD TO MACHINE QUOTE:

doall - doall saw blade (12'-6
Name: DoAll - DoAll Saw Blade (12'-6" x 1-1/4" x 0.042" x 3-4T Silencer Plus) (call for information/pricing)
Price: Call For Price
Stock No:# 333334150
ADD TO MACHINE QUOTE:

* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
