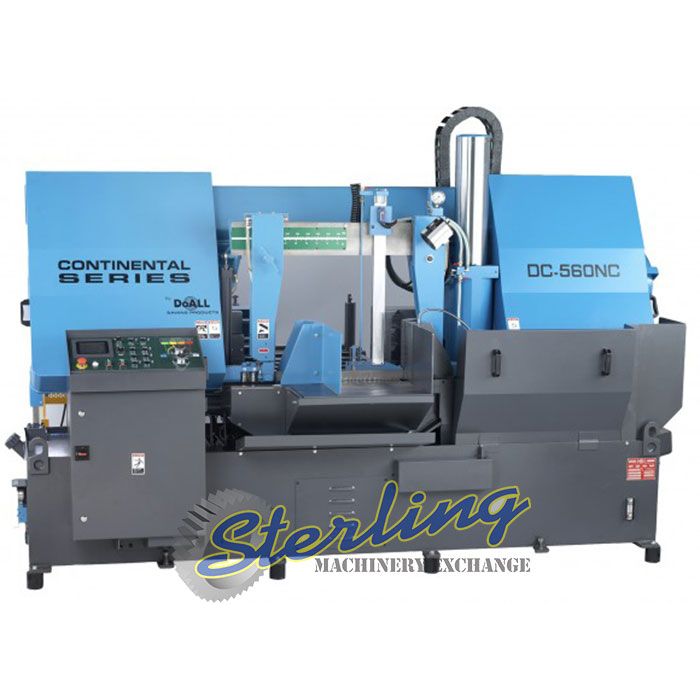

22" x 24" Brand New DoALL Continental Series Fully Automatic High Production Horizontal Bandsaw, Mdl. DC-560NC, NC Control Panel: Touch Screen Control, 20 Job Presets, Multiple Language Capability, Trouble Shooting Prompts, Easy Operation, PLC Control for All Electric and Hydraulic Functions, Infinitely Variable Speed Controlled by VFD, Hydraulic Retractable Shuttle Vise Material Indexer, Rapid and Creep Speed Index Vise Control, Multi-Step Full Stroke Vises with Split Front Vise and Variable Vise Pressure Control, Spring Loaded, Zero Clearance, Coolant Through, Carbide Faced Saw Guide with Lead-In Rollers, Power Driven, Coolant Flushed, Blade Cleaning Wire Brush, Flushing Hose and Auxiliary Coolant Nozzles, Hydraulic Blade Tension, Automatic Chip Conveyor, Blade Breakage/ Stall Motion Detector Shut Off Switch, Band Door Interlocks, Hydraulic System, High Efficiency Transmission, Work Light, One 6'-1/2" Conveyor, One DoAll Bi-Metal Saw Blade, Set Up Tools and Tool Box, Complimentary DoAll Cutting Fluids Package, Instruction & Parts Manuals on CD, #SMDC560NC

DoAll
Stock No:
#SMDC560NC
Manufacturer:
DoAll
Model:
DC-560NC
Capacity:
22" x 24"
Condition:
New
Brand New DoALL Continental Series Fully Automatic High Production Horizontal Bandsaw
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Overall Capacity
22" x 24"
Operation Type
Automatic
Capacity
.
Round
22"
Rectangle
22" x 24"
Bundle Capacity Max.
19-7/8" x 8-7/8"
Bundle Capacity Min.
9-7/8" x 5-3/4"
Blade Speed
72 - 390 SFPM
Blade Size
2" x 0.05" x 260"
Material Pass Line Height
33-1/2"
Automatic Indexing Lengths:
.
Single
15.75"
Multiple
141.73"
Remnant Length
Single Piece (Non-Bundle)
Coolant Pump Horsepower
1/4 H.P.
Coolant Tank
37 Gallons
Hydraulic Pump Horsepower
3 H.P.
Hydraulic Tank
34 Gallons
Horsepower
10 H.P.
Voltage
230V ~ 3 Phase
WEIGHT
9260 lbs
EQUIPPED WITH
Work Light
NC Control Panel: Touch Screen Control, 20 Job Presets, Multiple Language Capability, Trouble Shooting Prompts, Easy Operation
PLC Control For All Electric And Hydraulic Functions
Infinitely Variable Speed Controlled By VFD
Hydraulic Retractable Shuttle Vise Material Indexer
Rapid And Creep Speed Index Vise Control
Multi-Step Full Stroke Vises With Split Front Vise And Variable Vise Pressure Control
Spring Loaded, Zero Clearance, Coolant Through, Carbide Faced Saw Guide With Lead-In Rollers
Power Driven, Coolant Flushed, Blade Cleaning Wire Brush
Instruction & Parts Manuals On CD
Hydraulic Blade Tension
Flushing Hose And Auxiliary Coolant Nozzles
Automatic Chip Conveyor
Band Door Interlocks
Blade Breakage/ Stall Motion Detector Shut Off Switch
Hydraulic System
High Efficiency Transmission
Complimentary DoAll Cutting Fluids Package
One DoAll Bi-Metal Saw Blade
Set Up Tools And Tool Box

DISTRIBUTOR OF THE YEAR AWARD

OPTIONAL EQUIPMENT AND TOOLING
doall - out of square detection
Name: DoAll - Out of Square Detection
Price: Call For Price
Stock No:# CMI06025N
ADD TO MACHINE QUOTE:

doall - magnetic chip remover
Name: DoAll - Magnetic Chip Remover
Price: Call For Price
Stock No:# CMI226028
ADD TO MACHINE QUOTE:

doall - copy of instruction and parts manuals on cd
Name: DoAll - Copy of Instruction and Parts Manuals on CD
Price: Call For Price
Stock No:# 299998
ADD TO MACHINE QUOTE:

doall - 10' gravity conveyor (call for information/pricing)
Name: DoAll - 10' Gravity Conveyor (call for information/pricing)
Price: Call For Price
Stock No:# DOALLGRAVITYCONVEYOR
ADD TO MACHINE QUOTE:

doall - doall saw blade (21'-8
Name: DoAll - DoAll Saw Blade (21'-8" x 2" x 0.063" x 2-3T Silencer Plus) (call for information/pricing)
Price: Call For Price
Stock No:# 301070260
ADD TO MACHINE QUOTE:

doall - 6.5' gravity conveyor
Name: DoAll - 6.5' Gravity Conveyor
Price: Call For Price
Stock No:# 224995
ADD TO MACHINE QUOTE:

* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
